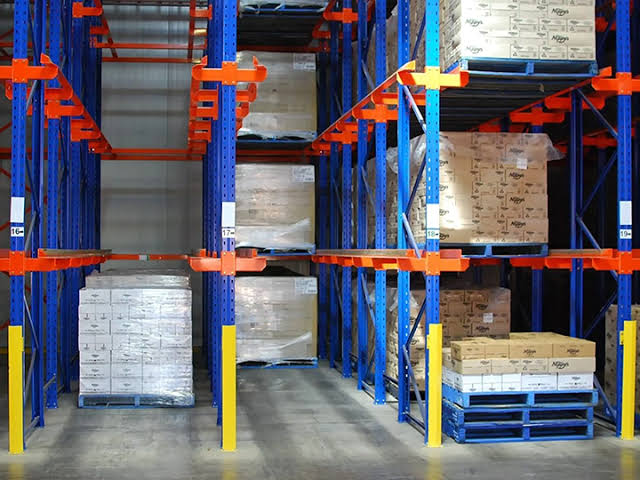

GENEX Drive-In and Drive-Through Racking provides an engineered, compact storage solution suited for storing high volumes of uniform, palletized merchandise. By allowing forklift trucks to enter storage lanes directly along dedicated continuous pallet support rails, this system eliminates redundant operating aisles and increases usable storage capacity by up to 85% compared with conventional selective racking.
Designed and deployed to meet rigorous regional warehouse requirements across Dubai, Abu Dhabi, and the wider UAE, GENEX Drive-In systems offer optimal thermal and volume efficiency for temperature-controlled cold rooms, cold storage facilities, raw materials staging, and large-batch FMCG distribution hubs.
Drastically lowers space waste by stacking goods up to 10-12 pallets deep.
Configurable for Last-In First-Out (Drive-In) or First-In First-Out (Drive-Through).
Every GENEX drive-in system is custom-calculated according to pallet weight distributions, forklift chassis clearance, and European structural design norms (such as EN 15512 and EN 15620).
Select the optimal configuration to match your operational throughput, batch management, and picking sequence.
| Criteria | Drive-In Racking System | Drive-Through Racking System |
|---|---|---|
| Access Strategy | Single entry/exit point per storage lane | Separate dedicated entry and exit aisles |
| Inventory Logic | Last-In, First-Out (LIFO) rotation | First-In, First-Out (FIFO) rotation |
| Space Efficiency | Maximum storage density with closed back wall | High storage density with dual service aisles |
| Typical Inventory | Non-perishable batches, bulk raw materials, seasonal goods | Perishable consumer goods, pharmaceuticals, fast FMCG batches |
| Cold Storage Suitability | Exceptional thermal cube reduction and utility savings | Ideal for temperature-controlled date-monitored goods |
Refrigerated and freezer warehousing incur high electrical and cooling operational expenses. Drive-in systems condense storage by eliminating wasteful handling aisles, concentrating cooled air strictly on palletized cargo, yielding substantial long-term power and operational savings.
Standard counterbalance forklifts and narrow-chassis reach trucks can operate inside the lanes provided the vehicle chassis fits comfortably within the upright clear width. Floor guide rails are installed to safely guide the forklift wheels and prevent rack impact.
Because trucks enter directly into the structure, we integrate heavy-duty floor-mounted guide angles, tapered entry flared lead-ins, heavy-gauge steel upright protectors, and top-tier portal frame bracing to maintain absolute structural integrity.
Submit your facility dimensions, pallet parameters, and handling vehicle data. GENEX structural engineers will deliver a comprehensive CAD layout and turn-key quotation tailored to your logistical workflow.
