Engineered to eliminate point-load sag, prevent pallet displacement, and ensure total compliance with GOST R 55525-2017 and EN 15512 standards across standard, euro, and non-standard logistics formats.

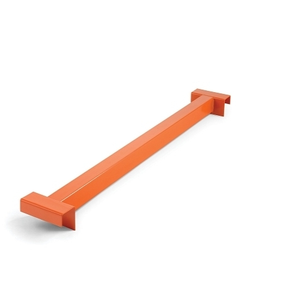

Constructed from cold-rolled structural steel, this rigid crossbar provides direct bottom-deck reinforcement across pallet rack beams, preventing deflection under uneven concentrated loads.
Featuring a high-durability epoxy electrostatic finish designed for multi-tier picking towers and long-span industrial shelving where toolless bay adjustment is required.

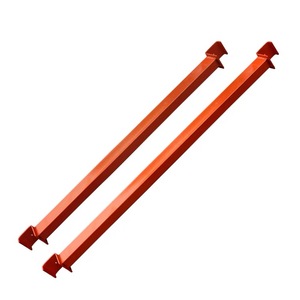

Equipped with downturned locking ears and dual pre-punched fastener holes that prevent beam spreading and ensure stable placement of weak European-standard wooden skids.
Specialized hat-section profile engineered to sit flush or drop over longitudinal racking beams. Recommended for automated radio shuttle lanes and narrow aisle (VNA) operations.
Designed for variable-span industrial racking where pallet dimensions fluctuate between 800 mm Euro and 1000 mm industrial standards, preventing critical pallet corner slippage.
Engineered with high torsional rigidity, this horizontal tie bar mechanically locks the front and rear load beams together, eliminating beam rotation under severe dynamic impacts.
Sits completely flush with step beam profiles to deliver an entirely seamless top shelf plane, facilitating smooth hand-stacking picking and automated carton sliding operations.
Reinforced structural steel crossmember designed for high-density mold storage, injection tooling dies, and heavy stamping equipment where unit point loads exceed standard safety thresholds.
In high-bay racking installations across the Moscow logistics corridor, pallet support bars—frequently specified as подполочные балки or поперечные балки жесткости—serve as the first line of defense against catastrophic beam separation and pallet punch-through failure.
Under realistic warehouse conditions, wood pallets frequently degrade: split center stringers, missing bottom lead boards, and uncertified timber skids undermine uniform load distribution. When an unsupported, loaded pallet rests solely across two horizontal beams, localized deflection creates inward rotational forces on the beam profile.
By spanning perpendicularly across the load beams, precision-formed crossbars bridge the gap between longitudinal members, transferring concentrated center-stringer loads directly into the vertical shear plane of the rack beams without inducing torsional twist.
| Profile Type | Steel Grade | Working Load (Pair) | Beam Interface | Best Fit Use Case |
|---|---|---|---|---|
| Flanged Top-Hat (P-Bar) | Q235B / Q355B | 1,200 - 1,800 kg | Drop-Over Box / Structural | VNA & Automated Shuttle |
| Flush-Mount Step Bar | Cold-Rolled Carbon | 1,000 - 1,400 kg | Internal Step Inset | Manual Picking Floors |
| Tubular Tie-Bar | Structural Tube | 1,500 - 2,200 kg | Bolted Flange Tie | High-Bay Seismic Zones |
| Heavy Mold Channel | Low-Alloy 09G2S Eq. | 2,500 - 3,500 kg | Direct Mechanical Anchor | Heavy Tooling & Machinery |
From Class-A logistics belts along the Central Ring Road (TsKAD) to extreme sub-zero cold chains, our factory delivers customized pallet support bars tailored to Moscow's exact operational conditions.
Intensively utilized across major distribution terminals in Podolsk, Chekhov, Domodedovo, and Noginsk. Crossbars support high-density selective and double-deep racking bays, stabilizing high-velocity mixed consumer goods inventory against continuous reach truck operations.
Distribution & 3PL Hubs →Deployed in refrigerated food storage complexes across Dmitrov, Stupino, and Lyubertsy. Engineered using impact-resistant structural steel that avoids cold brittleness, protected by low-temperature thermoset powder coatings that resist condensation peeling.
Frozen Supply Chains →Essential for regional fulfillment operators (such as facilities serving Wildberries, Ozon, and Yandex Market platforms). Flush-fitting crossbars convert standard heavy pallet beams into flat picking tiers, accommodating varying tote sizes and light skids without tipping.
Retail Fulfillment Centers →Heavy-duty channels installed in machinery manufacturing facilities in Khimki, Solnechnogorsk, and Elektrostal. Heavy-gauge channel crossmembers provide fail-safe loading platforms for irregular steel metal crates, engine blocks, and injection molds.
Industrial Stamping & Spares →Analyzing key structural, economic, and logistical factors driving modern pallet support specification across Class-A industrial developments in the Moscow metropolitan hub.
Logistics demand in Moscow has decentralized from the MKAD ring toward the A-107, A-108, and the Central Ring Road (TsKAD). High land-lease efficiency pushes warehouse clear heights to 14–16 meters, demanding rigid support bars to ensure zero bottom-beam deflection at upper levels.
Labor dynamics in the Moscow region have accelerated adoption of radio-shuttles and automatic storage and retrieval systems (ASRS). Flanged P-type pallet support bars guarantee level travel rails and prevent dislodged wooden pallet fragments from halting robotic shuttles.
Annual technical inspection of warehouse racking is legally mandated in Russia. Uprights, beams, and horizontal ties must pass rigorous deflections tests. Fitting certified factory crossbars prevents safety citation penalties during periodic Russian Rostekhnadzor and internal safety audits.
Supply chain reconfigurations mean Moscow warehouses routinely handle both 800×1200 mm Euro pallets and 1000×1200 mm industrial skids, along with non-standard Asian import pallets. Universal drop-over crossbars remove rack re-profiling downtime.
Combining heavy manufacturing capabilities, automated cold roll-forming lines, and direct container rail delivery to the Moscow freight terminals of Vorsino, Bely Rast, and Silikatnaya.
Our facility houses 12 dedicated continuous cold-roll forming and CNC hydraulic punching lines. Every pallet support bar is stamped and notched with sub-millimeter precision (±0.5 mm), guaranteeing exact dimensional fit on standard 50 mm, 75 mm, and 76.2 mm beam pitches without on-site cutting or grinding.
We source prime, certified hot-rolled and cold-rolled coil steel formulated with low phosphorus and sulfur contents. Our support bars for cold-storage installations retain high Charpy V-notch impact toughness at temperatures as low as -40°C, preventing catastrophic brittle fracturing in deep-freeze terminals.
Equipped with multi-stage pre-treatment (alkaline degreasing, zinc phosphating, and deionized rinsing) followed by automated Swiss Gema powder coating lines. Our 70–90 micron thick epoxy-polyester coatings achieve high resistance against salt spray, scuffing, and humidity cycles during harsh Russian winters.
Whether you require custom top flanges, drop-over brackets tailored to proprietary European beam shapes (such as Stow, Bito, Mecalux, Nedcon, or Russian brands like Solos and Politekh), or pre-punched fastener holes for self-drilling safety tek-screws, our engineers supply CAD drawings within 24 hours.
With direct rail container loading access from our manufacturing base, we coordinate optimized freight transport straight to key Moscow logistics hubs including Bely Rast, Vorsino, and Silikatnaya. We manage comprehensive export packing, anti-corrosion container vapor wrapping, and clear shipping manifests.
Every shipment is backed by raw material metallurgical mill certificates, coating thickness verification, and mechanical compression test reports. We test samples per batch to ultimate failure thresholds, ensuring every crossbar safely delivers its designated working load capacity.
Direct technical answers addressing structural compliance, dimensional selection, steel coatings, and commercial logistics for Russian warehouse engineers and procurement officers.
GOST R 55525-2017 (Стеллажи сборно-разборные. Общие технические условия) sets strict guidelines regarding permissible residual deformation, safety factors against yield failure, and stability of horizontal racking elements. Our pallet support bars are engineered with a minimum safety factor of 1.5 against static yield under rated loads.
Furthermore, our bars are designed with pre-drilled tek-screw holes on their clamping flanges. This ensures positive mechanical fixation to the longitudinal rack beams, fully satisfying GOST requirements that horizontal support elements remain securely in place during forklift operations and accidental minor impacts.
For standard climate-controlled Class-A warehouses (above +5°C), our standard certified Q235B high-tensile carbon steel with 70–80 μm electrostatic polyester powder coating delivers decades of trouble-free service life.
For deep-freeze chambers (-25°C to -35°C) common in food distribution facilities around Stupino or Dmitrov, we utilize fine-grained structural steel (equivalent in impact resilience to Russian 09G2S grade steel) tested for Charpy impact toughness at low temperatures to prevent cold embrittlement. For maximum moisture and frost resistance, we also supply hot-dip galvanized (HDG) or pre-galvanized zinc coatings (Z275 coating class) to prevent under-film corrosion caused by condensation cycles during defrost intervals.
The choice is dictated by your existing beam geometry and handling method:
Standard Moscow rack bays are frequently engineered at 2700 mm (for three Euro pallets) or 3600 mm (for three industrial FIN pallets) across nominal 1050 mm or 1100 mm upright frame depths. When standard 800 mm wide Euro pallets are placed longitudinally on deep frames, their bottom deckboards can fail to seat securely across both beams.
By installing two heavy-duty pallet support bars beneath each pallet location (typically 4 to 6 bars per 2700 mm bay level), the effective weight is borne by the crossbars rather than unsupported wooden bottom slats. This layout allows warehouse staff to store Euro, Finnish, and custom industrial skids across any bay location without reconfiguring upright frame depths.
For standard profile sizes (such as 1000 mm, 1050 mm, and 1100 mm depths), our typical factory MOQ is 300 to 500 units. For fully customized beam flange geometries, our minimum run is generally 1,000 units.
Typical factory production lead time for a 40-foot high-cube container (carrying approximately 3,000 to 4,500 support bars depending on gauge and profile) is 14 to 20 calendar days. Direct railway container transit to central terminal yards in the Moscow Region (Vorsino, Bely Rast, or Elektrougli) typically ranges between 16 to 22 transit days, with full commercial shipping documentation provided.
Yes. While industrial standard colors are RAL 5015 (Sky Blue), RAL 5010 (Gentian Blue), RAL 7035 (Light Gray), or RAL 2004 (Pure Orange) for maximum safety visibility during forklift alignment, we can formulate our electrostatic powder coat to any custom RAL specification required to harmonize with your corporate color guidelines.
We also provide custom tooling for embossed logo branding, structural capacity stamps, and traceability lot numbers punched directly into the crossbar steel for easy identification during site maintenance checks.
Send our structural engineers your beam profile dimensions, upright frame depth, and pallet load criteria. We will provide load calculations, custom technical drawings, and CIF Moscow pricing within one business day.
