What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

Warehouse Racking & Shelving Supplier in UAE | GENEX

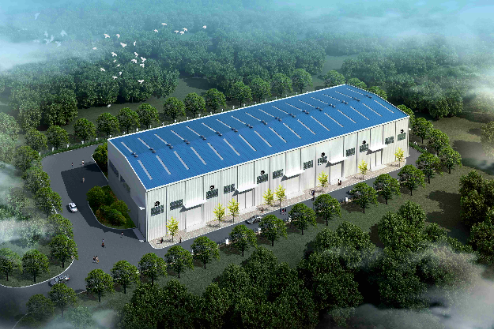

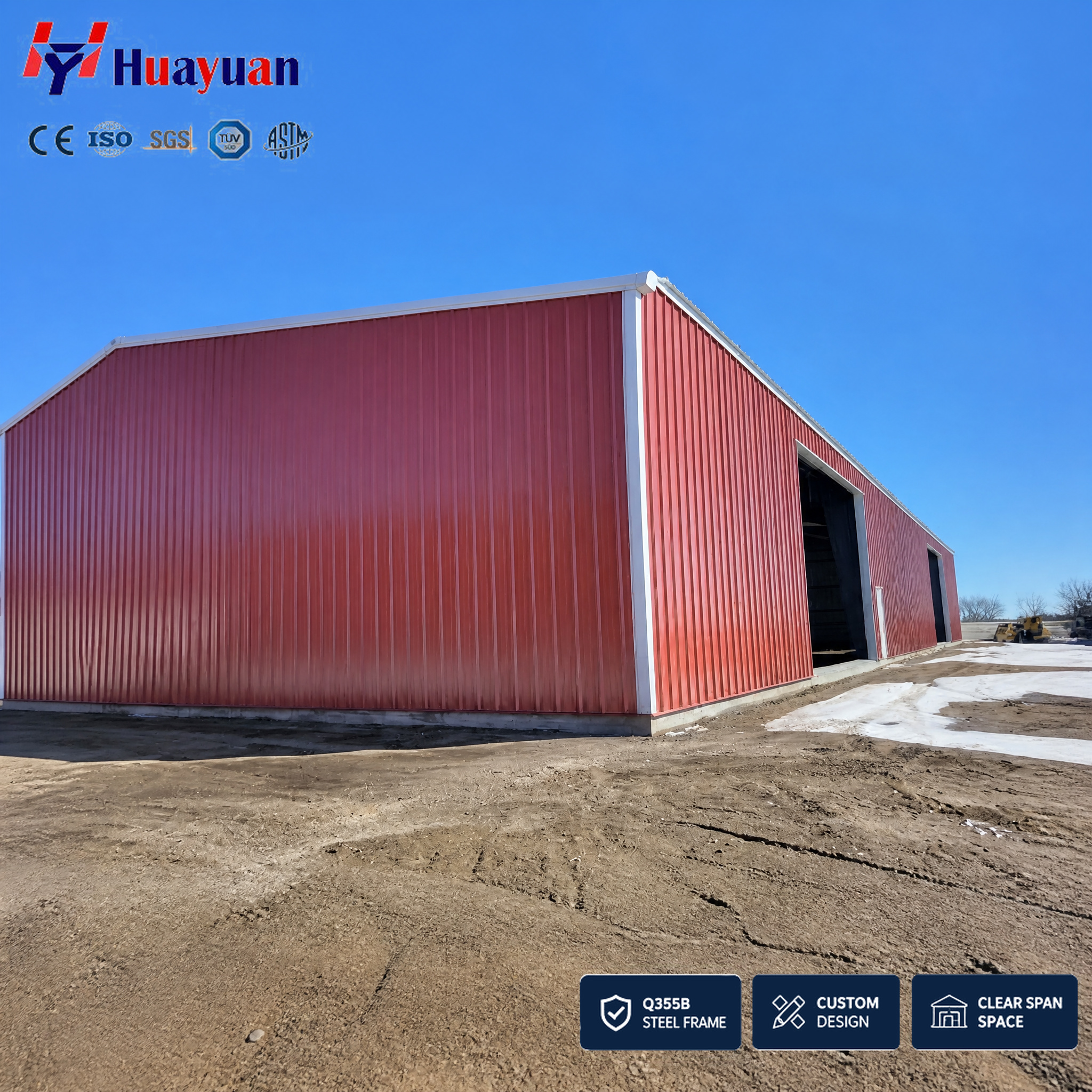

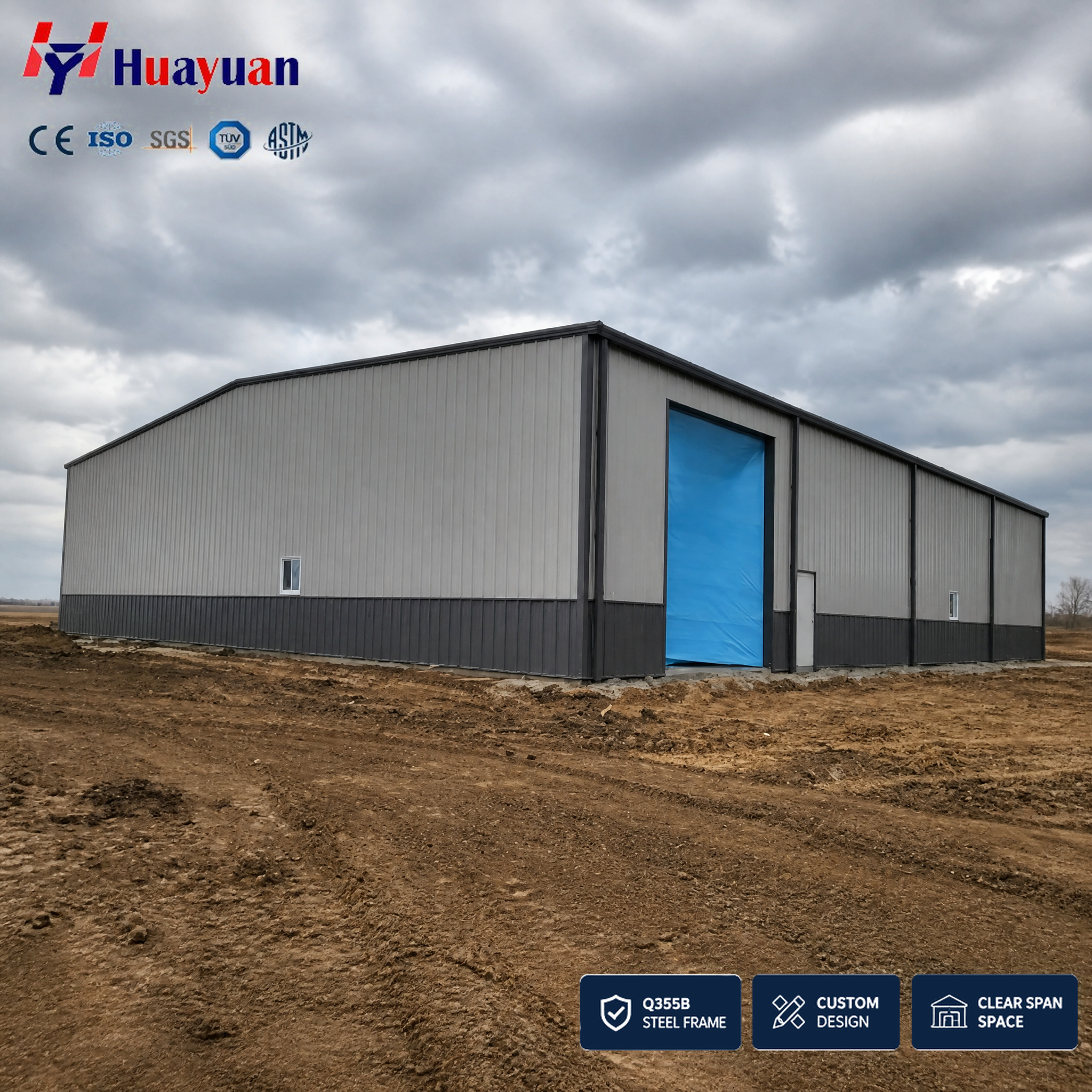

Prefabricated Steel Warehouse Building Solutions

Large Span Storage Space Portal frame steel structure provides large clear span space up to 80m, reducing columns and maximizing storage capacity for logistics, industrial and commercial warehouse projects.

High Strength Steel Structure Q355B high strength steel ensures excellent load capacity, wind resistance and structural safety with reliable performance for long-term industrial applications.

Customized Engineering Solution Complete service from design, fabrication to installation guidance, providing customized steel warehouse solutions for different project needs and standards.

Fast Prefabricated Construction Prefabricated steel components enable fast installation, shorter construction time and efficient warehouse building with stable quality control.

Durable Quality Assurance Corrosion-resistant treatment and strict quality control ensure durable steel warehouse solutions with CE and ISO9001 standards for global projects.

Prefabricated Steel Warehouse Building Mezzanine Floor Multi Level Storage Industrial Steel Frame Structure System

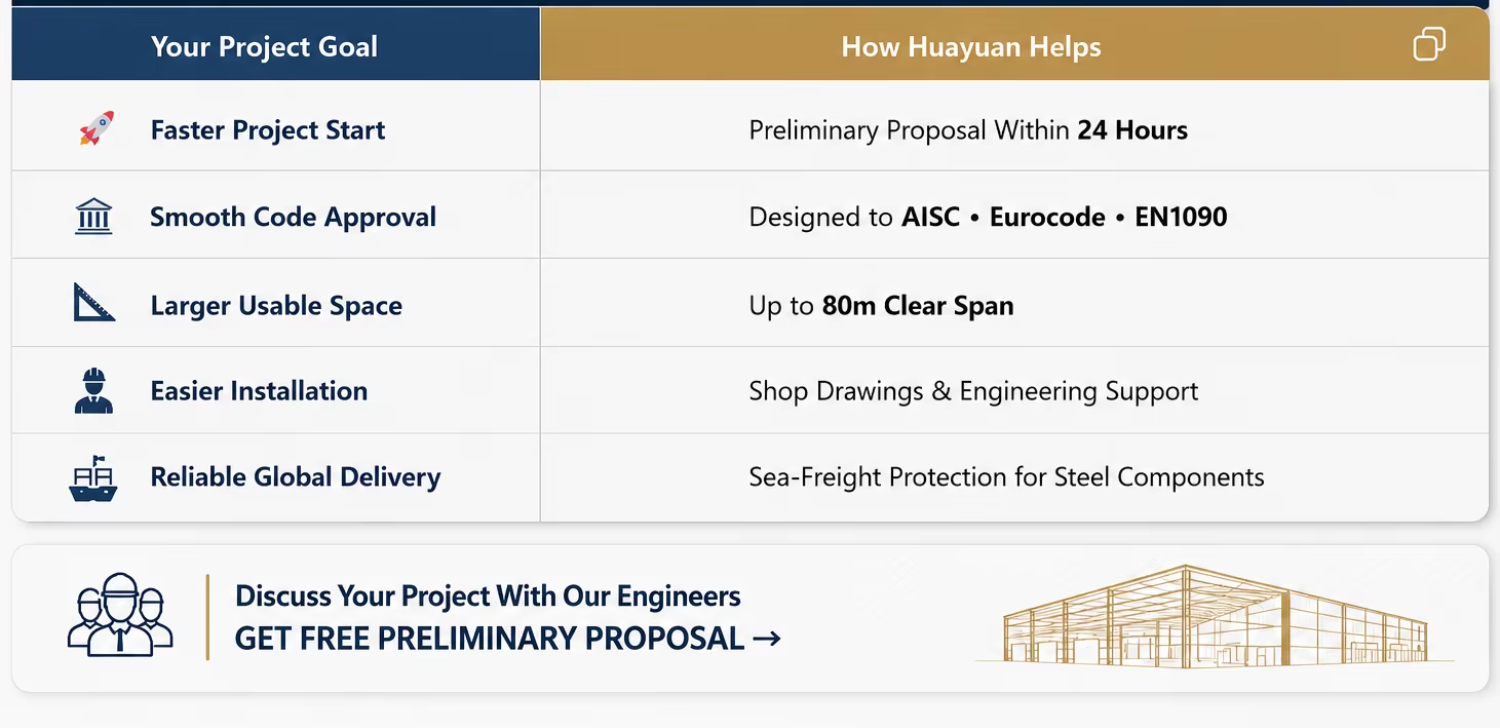

ENGINEERING SOLUTIONS FOR YOUR PROJECT

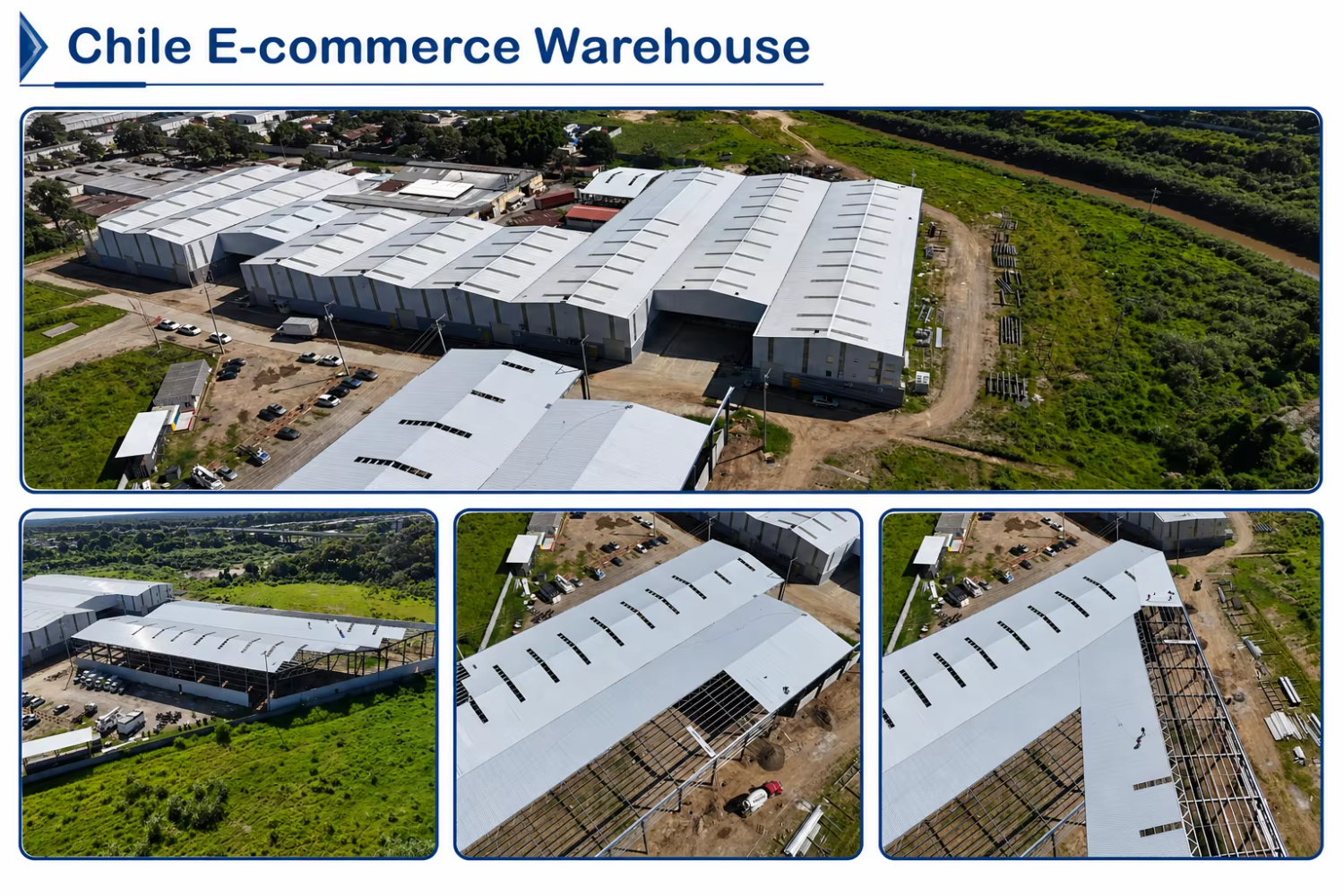

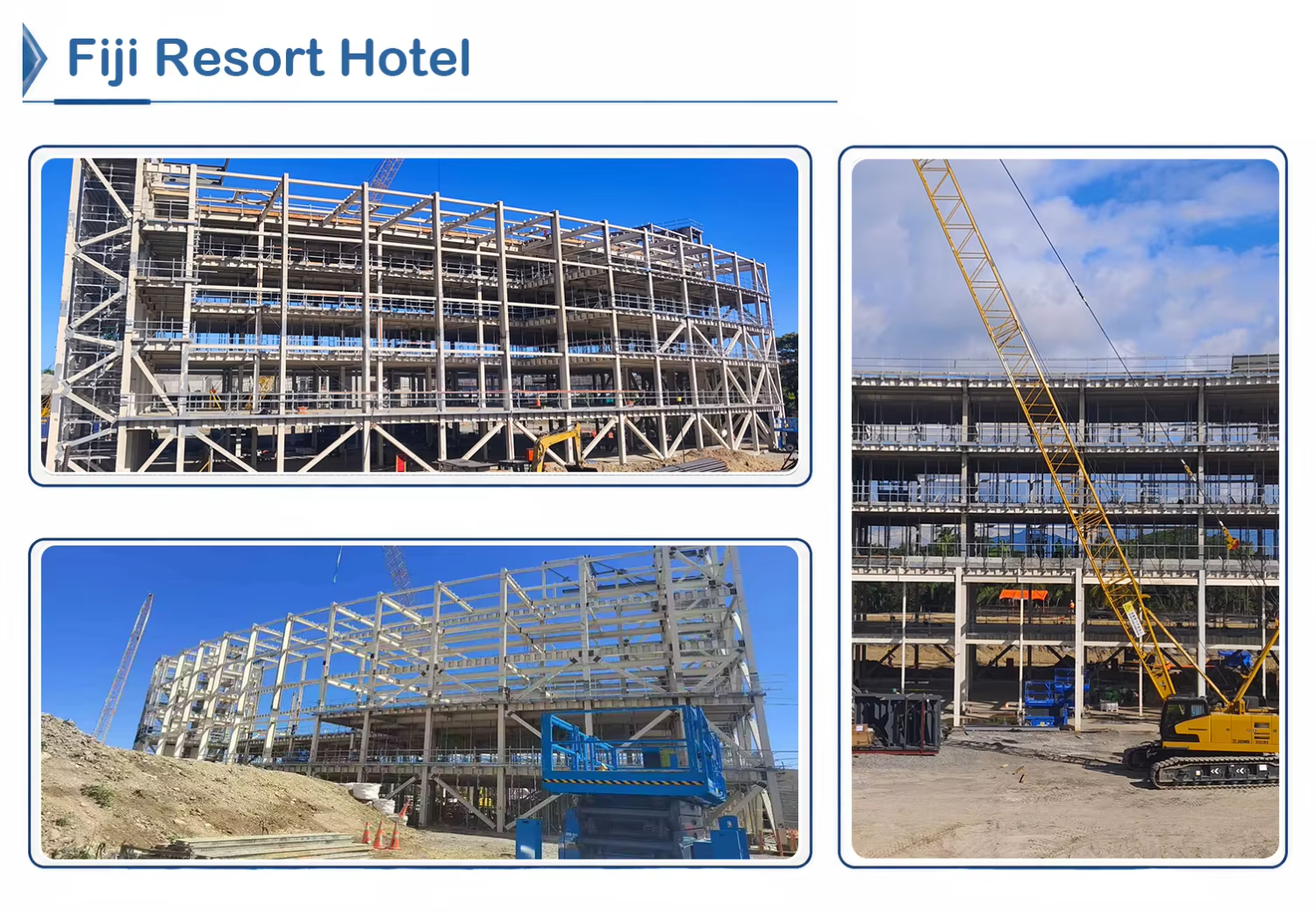

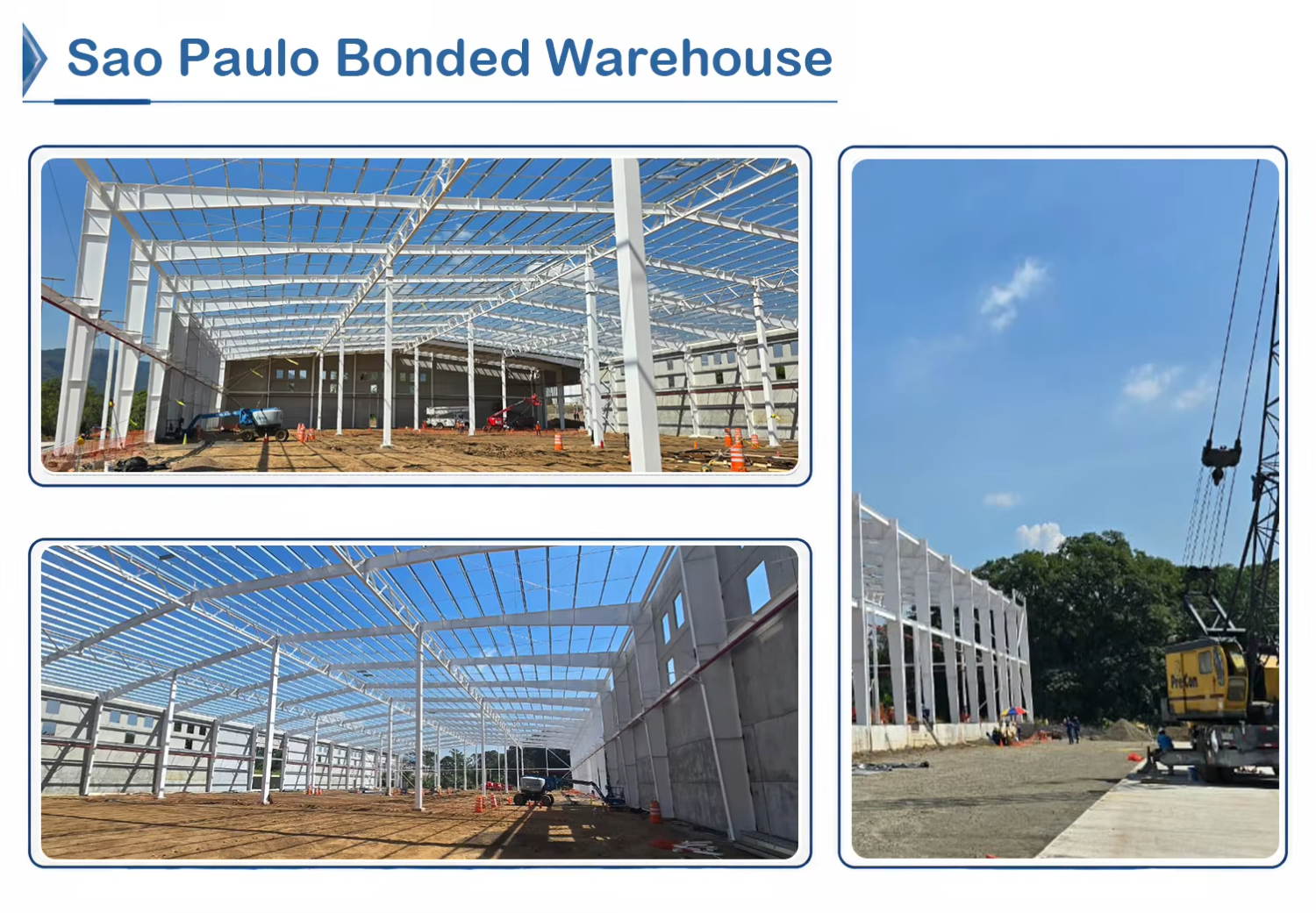

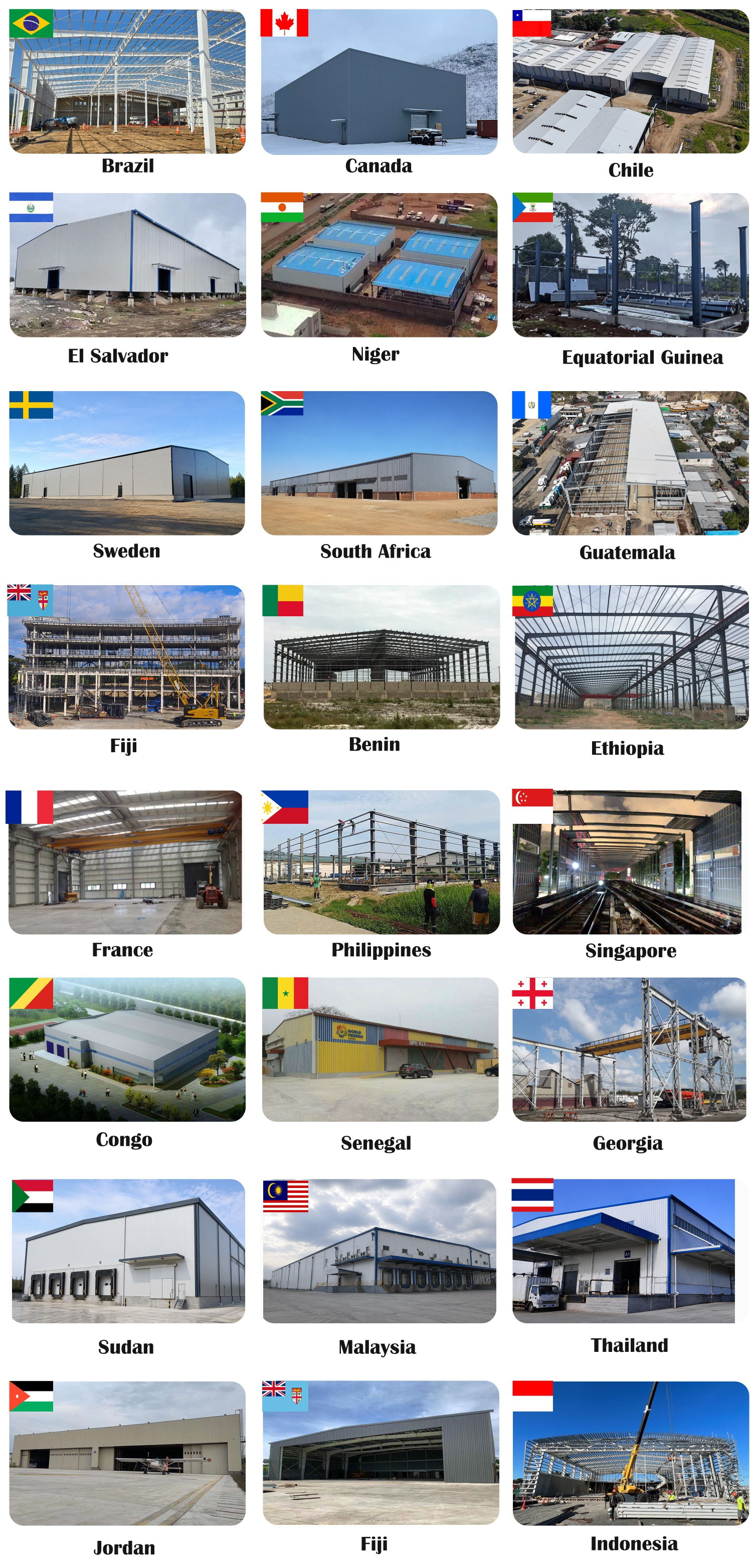

GLOBAL PROJECTS

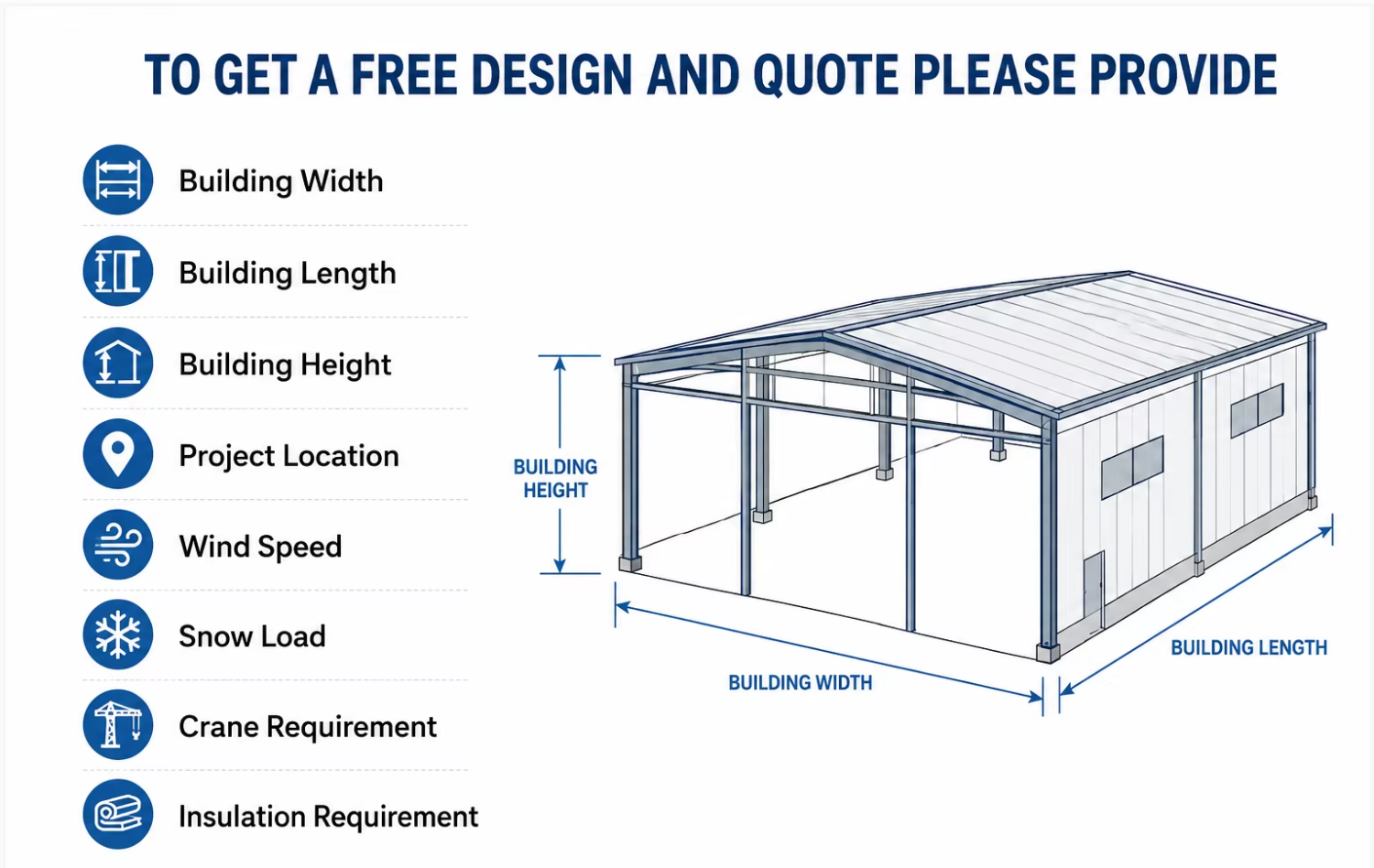

QUICK QUOTATION

Steel Grade	Q355B / Q235B / S355JR / ASTM A572 Grade 50
Main Frame	Solid H-shape steel beam, welded + bolted connection
Surface Treatment	Hot-dip galvanized (450°C zinc bath, 80-120 microns)
Purlin	C-shape & Z-shape Q235 galvanized steel

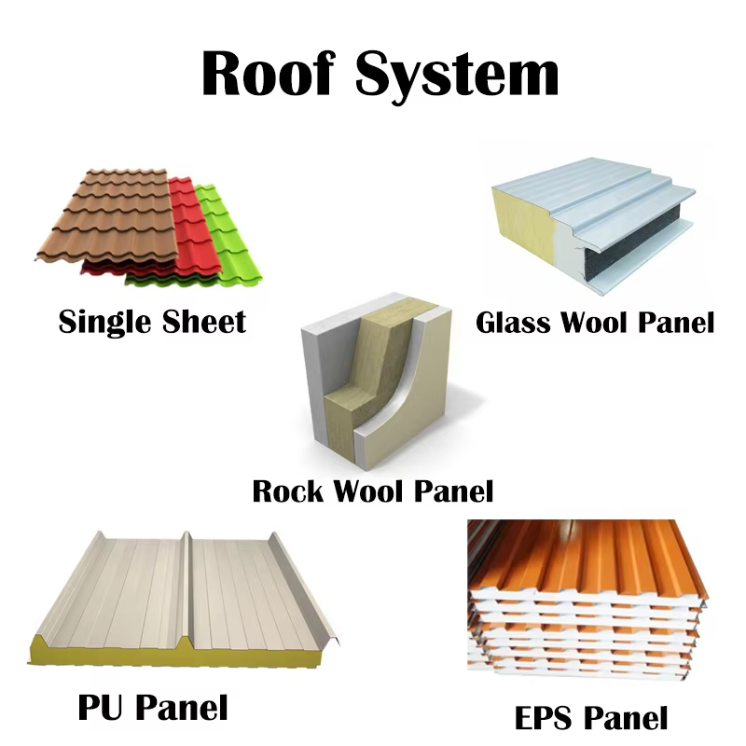

Roof System	Sandwich panel (EPS/Rockwool/PU) or color steel sheet

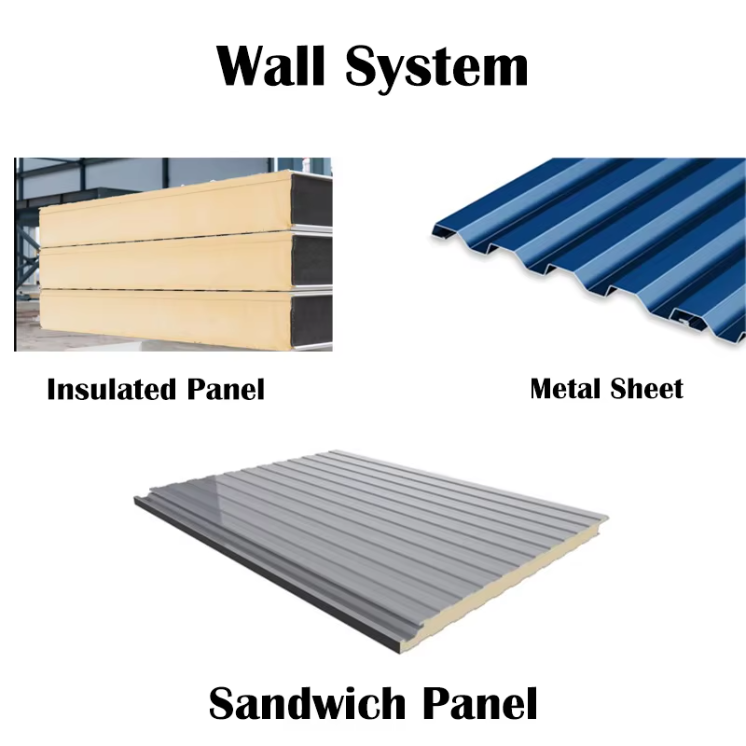

Wall Cladding	Sandwich panel / color steel / fiber glass insulation

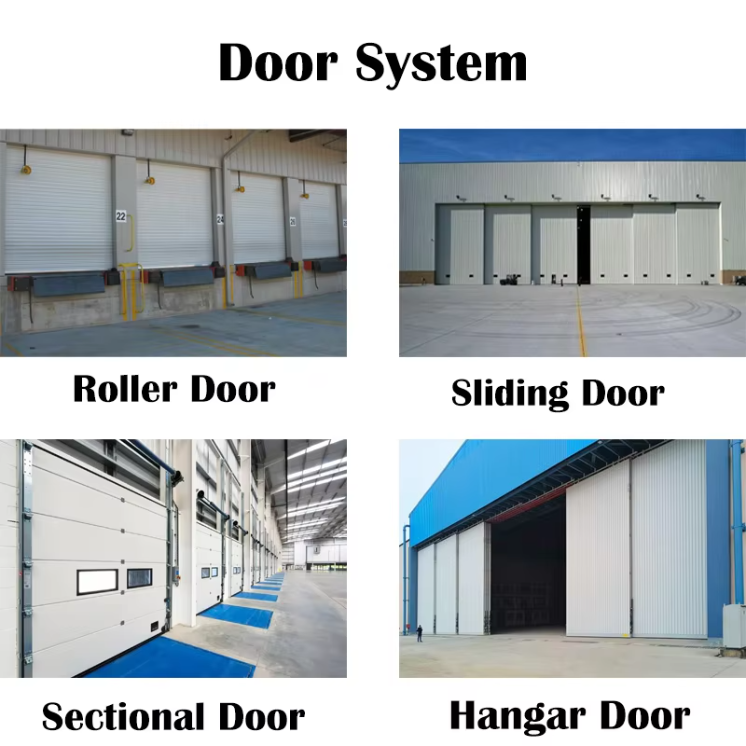

Door	Sliding / rolling shutter / sectional / insulated cold storage
Window	Aluminum alloy / PVC / insulated thermal break
Wind Resistance	Up to 160 mph (Category 4 hurricane)
Snow Load	20-50 lb/sqft (customizable up to 80 lb/sqft)
Service Life	50 years with anti-corrosion coating
Span Range	6 m to 80 m clear span
Eave Height	3 m to 30 m customizable

CUSTOM OPTIONS

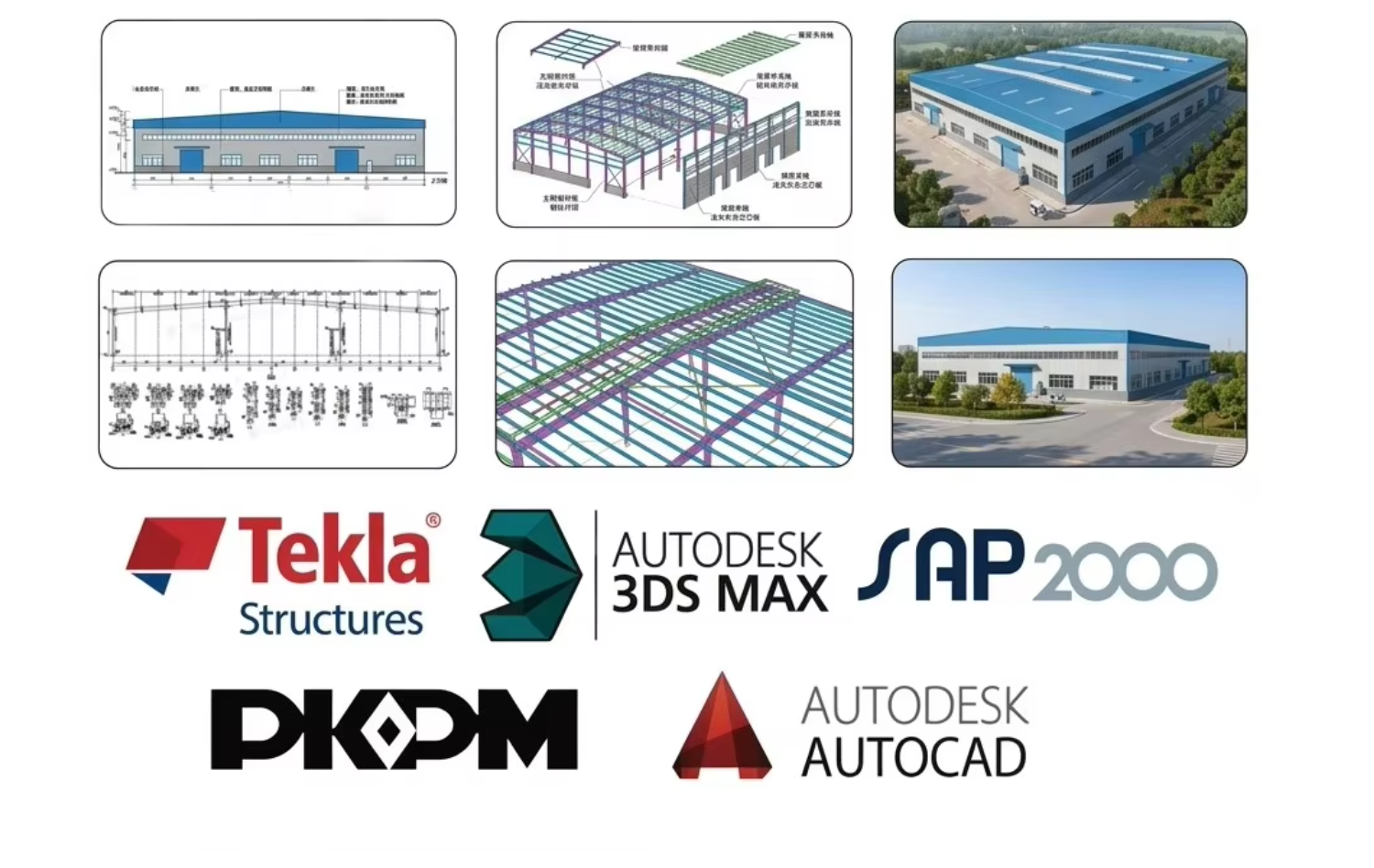

ENGINEERING DESIGN CAPABILITY

OUR CERTIFICATE

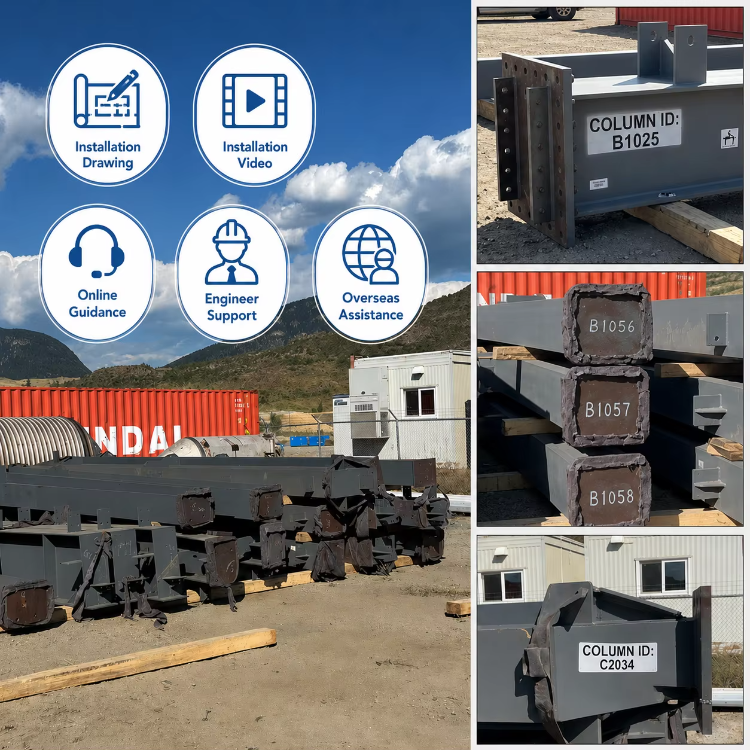

Installation Support

Plug-and-Play Assembly

Pre-cut, pre-drilled, color-coded components with QR-code tracking. No on-site welding required.

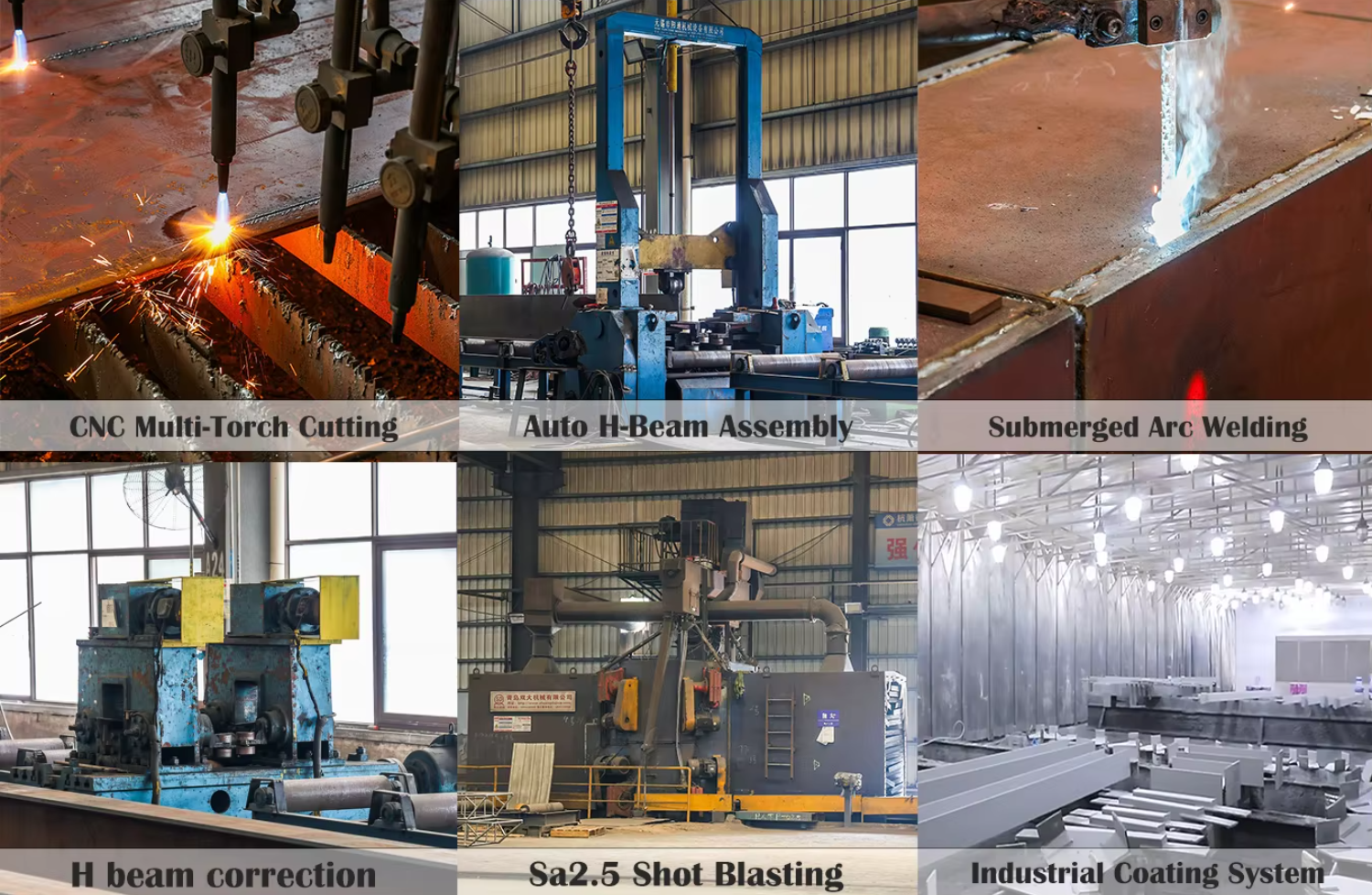

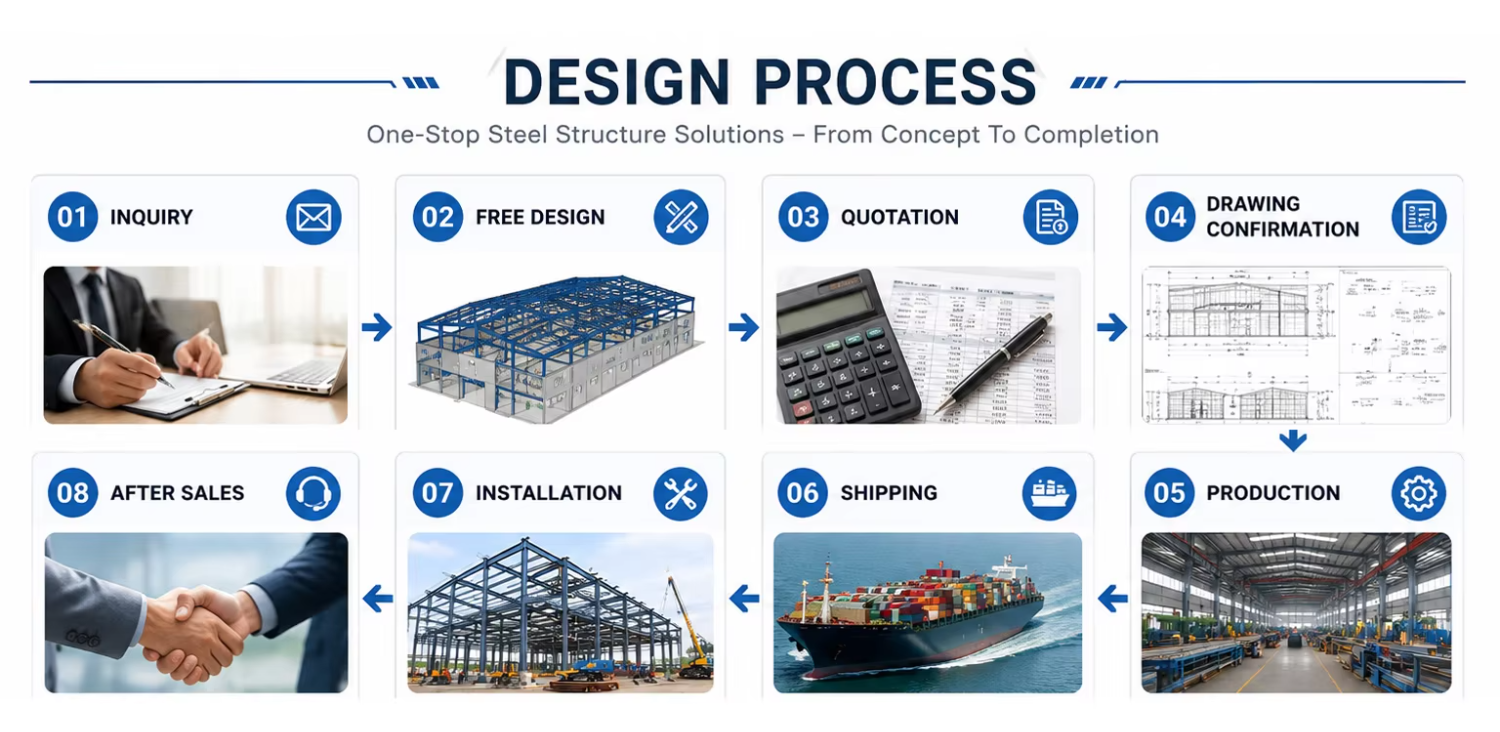

PRODUCTION WORKFLOW

Quality Assurance

Supported by a 50,000㎡ production base, 10 advanced production lines, and a monthly capacity of 3,000 tons, we utilize Tekla BIM design, CNC automated fabrication, and strict quality control to ensure precise manufacturing, fast delivery, and reliable project execution.

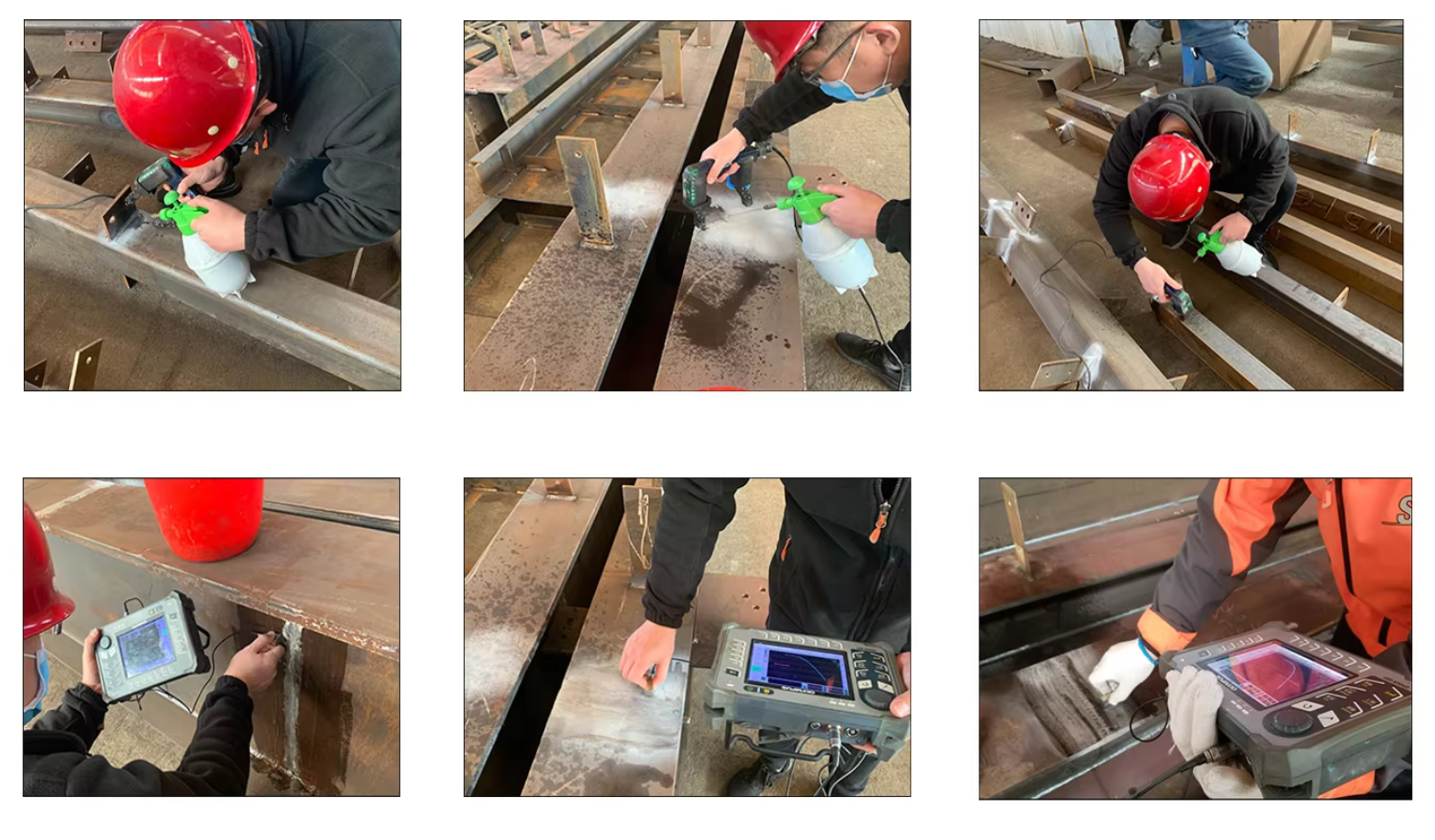

QUALITY INSPECTION

Our Quality Control Numbers (2026 YTD)
Raw Material Rejection Rate:	< 0.3%
Dimensional Accuracy:	± 1mm
Pre-shipment Defect Rate:	< 0.1%
Installation Error Rate:	< 0.5%
Customer Complaint Rate:	< 0.05%

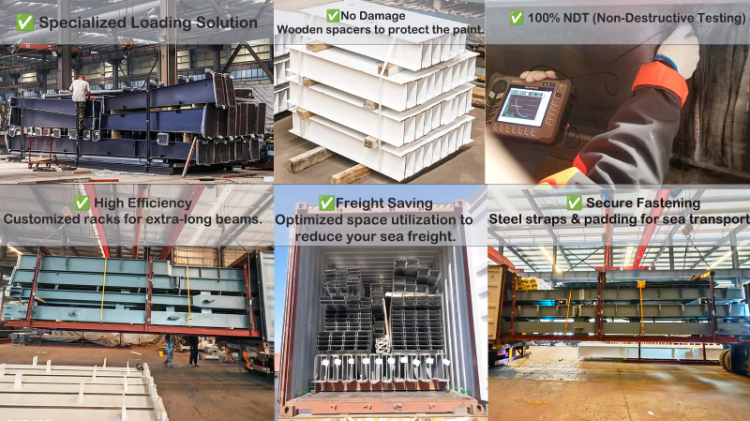

Packaging

Sea Freight Protection

Every stage from fabrication to packing is checked under a controlled process.

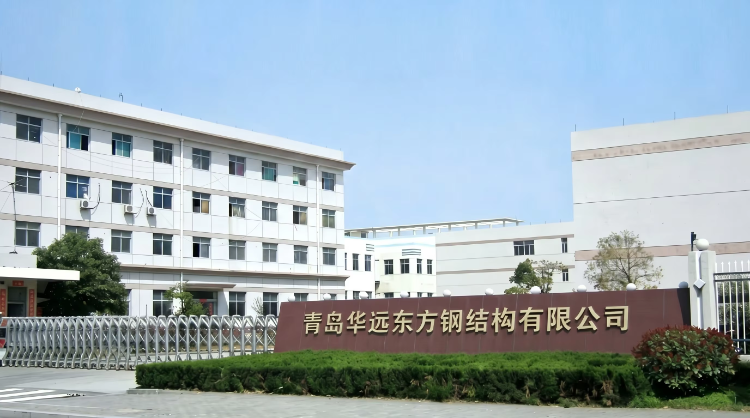

COMPANY OVERVIEW

Shandong Huayuan Steel Structure Co., Ltd. Established 2000, 26+ years export & engineering experience.

Products: Steel warehouses, workshops, cold storage, aircraft hangars, industrial projects.

Services: Design, fabrication, quality control, packing, installation support.

Certifications: CE, EN1090, ISO. Exported to 50+ countries: Southeast Asia, Middle East, Europe, Australia, Africa.

Strengths: Experienced engineers, automated production lines, reliable solutions for various climates.

Frequently Asked Questions

Q1 Can You Design A Steel Warehouse Based On My Local Building Codes?

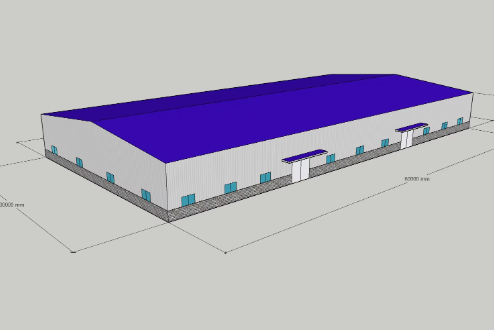

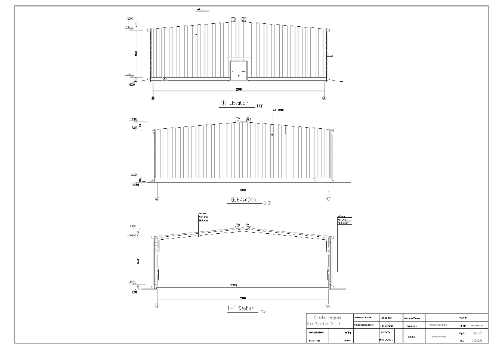

Yes. Every steel warehouse is engineered according to local wind load, snow load, seismic requirements, and building codes. Our engineering team provides free 3D design, structural calculations, and Tekla BIM drawings to ensure project compliance and safety.

Q2 How Much Does A Steel Warehouse Cost?

Steel warehouse cost depends on building size, wind load, snow load, insulation requirements, crane systems, and project location. We provide free customized quotations and optimized design solutions based on your specific project requirements.

Q3 What Steel Grade Do You Use For Warehouse Projects?

We mainly use Q355B and ASTM A572 high-strength steel for primary structural members. These materials provide excellent load-bearing capacity, structural stability, and long service life for industrial warehouses, logistics centers, and manufacturing facilities.

Q4 Can The Building Withstand High Wind, Heavy Snow, And Seismic Conditions?

Yes. Our steel warehouses can be engineered for wind speeds up to 150 mph, snow loads up to 80 psf, and seismic zones up to intensity 9. Every structure is designed according to local environmental conditions and engineering standards.

Q5 What Is The Maximum Clear Span Of Your Steel Warehouse?

Our steel warehouse buildings can be designed with clear spans up to 50 meters or more depending on project requirements. Clear-span designs eliminate interior columns, maximize storage space, and improve operational efficiency.

Q6 How Long Does It Take To Complete A Steel Warehouse Project?

Free design is typically completed within 7 days. Production usually takes 25–45 days after drawing approval. Most steel warehouse projects can be delivered within 50–90 days depending on project size and destination.

Contact Us
