100% Direct Pallet Accessibility
Every stored pallet position is immediately accessible without relocating adjoining inventory, delivering optimal cycle speeds for dynamic distribution hubs.
Universal Storage Architecture
Engineered 100% Direct Selectivity for High-Throughput Warehousing

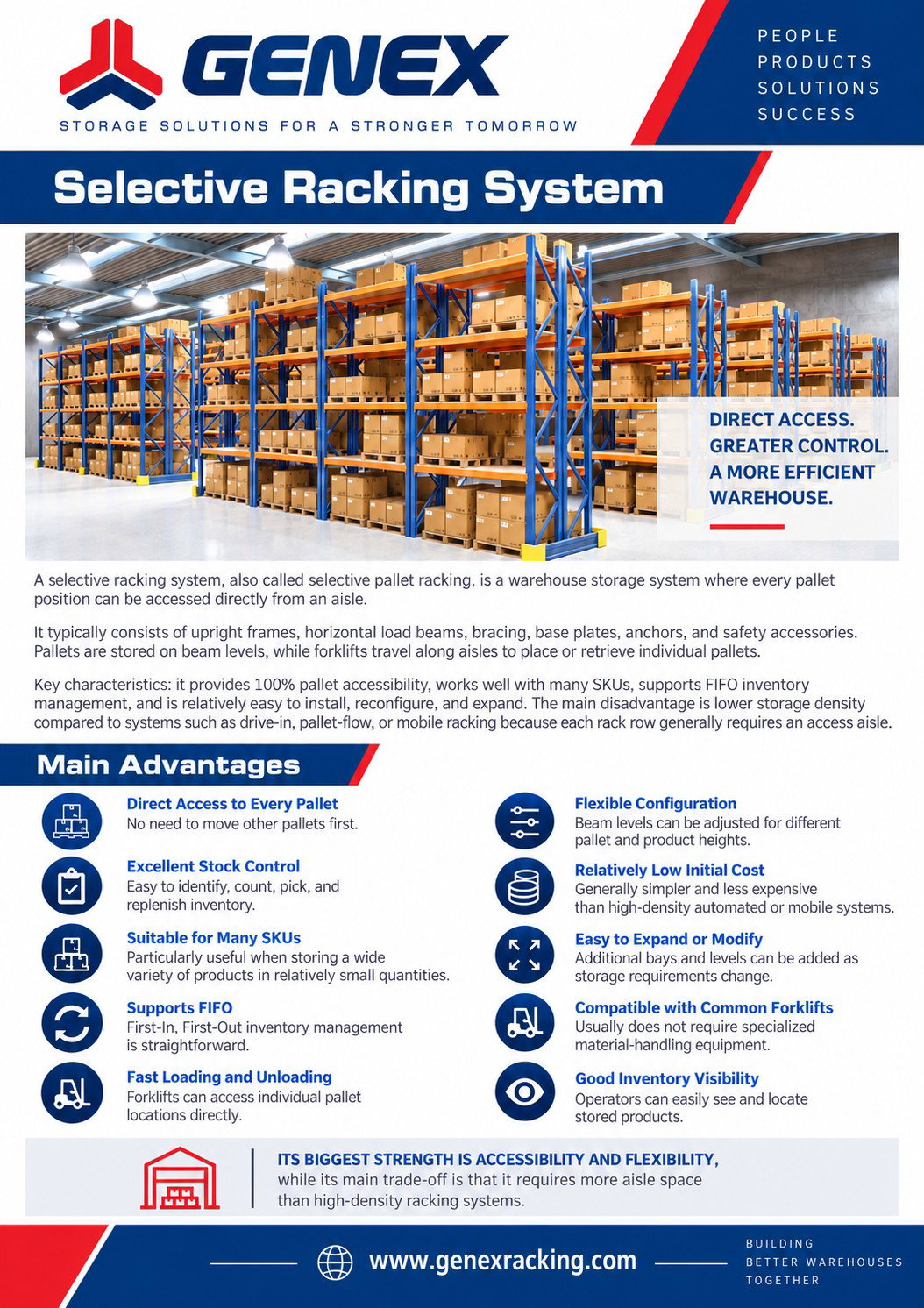

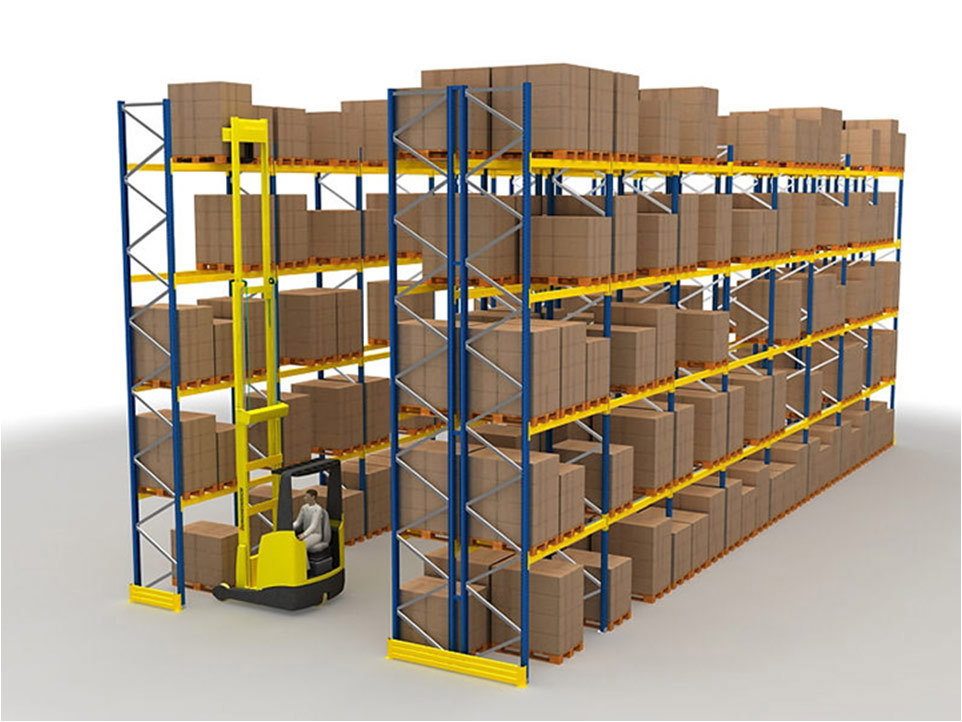

GENEX Selective Pallet Racking is the most versatile industrial pallet racking solution available for supply chain, logistics, and manufacturing operations across the UAE. Designed to grant immediate, direct access to every single stored unit, it eliminates honeycombing losses and accelerates inventory turnaround.
Whether operating standard counterbalance forklifts, reach trucks, or specialized narrow-aisle equipment, our structural configurations adapt seamlessly to your material handling fleet, floor slab capacities, and ceiling clearances.
Performance Advantages
Key Engineering & Operational Benefits
Engineered for high load reliability, inventory transparency, and full lifecycle safety in demanding logistical environments.
Unrestricted SKU Versatility
Ideal for businesses managing multi-category SKUs with varied dispatch frequencies, supporting seamless FIFO (First-In, First-Out) stock rotations.
High Cost-Efficiency
Minimal initial capital expenditure per pallet position combined with standard handling machinery requirements delivers outstanding ROI.
Adjustable Beam Levels
Modular pitch-punched uprights allow rapid beam level reconfigurations to adapt to seasonal variations in pallet heights and product bulk.
Universal Fleet Compatibility
Integrates without specialized tooling, operating efficiently with counterbalance trucks, reach trucks, stackers, and articulated forklifts.
EN 15512 Safety Certification
Structural calculation, high-tensile hot-rolled or cold-formed steel, safety pin locks, and column protectors guarantee strict UAE compliance.
Engineering Data
Technical Specifications & Load Tolerances
Every selective racking system is tailored to client load distribution, seismic considerations, and handling equipment parameters.
Frame Heights & Bay Depths
Upright frame heights available from 2,000 mm up to 13,000 mm. Standard frame depths engineered at 900 mm, 1,000 mm, and 1,100 mm to support both Euro and standard ISO pallet depths.
Beam Capacities & Pitch Adjustment
Box-section and step beam profiles engineered for uniformly distributed loads (UDL) ranging from 1,000 kg up to 4,500 kg per beam level, adjustable vertically on 50 mm or 75 mm pitch intervals.
Material Specification & Surface Finish
High-grade structural steel Q235B/Q345B or certified equivalent. Finished with high-durability epoxy powder coating for indoor ambient use, or hot-dip galvanized for harsh/cold-store conditions.
Aisle Width Planning
Wide Aisle (3.5m - 4.0m) for counterbalance forklifts; Narrow Aisle (2.7m - 3.2m) for reach trucks; Very Narrow Aisle (1.6m - 1.9m) for wire/rail guided VNA turret trucks to maximize footprint.
Applications
Ideal Industry Applications
Selective pallet racking is the baseline standard across major supply chain hubs across Dubai, Abu Dhabi, Sharjah, and regional logistics zones.
3PL Logistics Hubs
Managing dynamic inventory profiles and rapid throughput for multi-client fulfillment.
Retail & FMCG
Supermarkets and wholesale depots requiring continuous stock replenishment and picking.
Manufacturing & Spare Parts
Storage of raw materials, staging sub-assemblies, and heavy machine components.
Pharma & Chemical
Ensuring batch isolation, strict lot traceability, and compliance with storage audits.
The GENEX Advantage
Why International Buyers Choose GENEX Racking UAE
From initial design to installation sign-off, GENEX operates as a single accountable partner for local and overseas procurement teams executing facilities in the United Arab Emirates.
-
Full Structural Compliance
Engineered to international FEM, SEMA, and EN 15512 specifications, backed by load certification plaques.
-
Comprehensive CAD & Site Planning
Detailed architectural coordination including column grid alignment, slab loading tests, and Civil Defence approvals.
-
Turnkey Installation Teams
Certified, in-house rigging crews ensuring precise laser alignment, anchor torque testing, and complete site safety.
FAQ
Frequently Asked Questions
Why is selective pallet racking the most popular warehouse system?
Selective pallet racking provides 100% direct access to every single pallet position without having to move adjacent pallets. It accommodates standard forklifts and supports continuous, rapid pick rates for multiple SKUs.
What pallet sizes and load weights can GENEX selective racking hold?
The system accommodates all standard pallet formats including Euro pallets (1200x800mm) and ISO/Standard pallets (1200x1000mm). Upright frames and beam profiles are engineered to handle from 500 kg to over 4,000 kg per beam level.
What aisle width is required for selective pallet racking?
Aisle width depends on your Material Handling Equipment (MHE). Standard counterbalance forklifts generally require 3.5m to 4.0m, reach trucks require 2.7m to 3.2m, and VNA (Very Narrow Aisle) trucks can operate in aisles between 1.6m and 1.9m.
Does GENEX selective pallet racking comply with international design standards?
Yes. Our racking structures are calculated and certified in accordance with EN 15512 (structural design), EN 15620 (tolerances and clearances), and EN 15635 (operational safety and maintenance).
Configure Your Pallet Racking Layout with GENEX Engineers
Send your warehouse floor plans, pallet weights, and forklift specifications for a professional storage layout design and quotation.
