Manufactured from certified cold-rolled structural steel (Q235B / Q355B) and compliant with Eurocode EN 15512 and FEM standards. Engineered for maximum vertical density, seismic resilience, and rapid deployment in Baku, Sumgait, and Alat Free Economic Zone.
The Trans-Caspian International Transport Route (Middle Corridor) has witnessed an unprecedented surge in TEU container volume. With trade shifting southward away from northern transit passages, the Port of Baku at Alat handles expanding trade flows spanning industrial machinery, electronics, fast-moving consumer goods (FMCG), and agricultural harvests. To keep transit cycle times under 12–14 days from East to West, intermediate logistics hubs in the Absheron Peninsula must eliminate sorting bottlenecks.
Modern class-A logistics complexes developed across the Greater Baku metropolitan zone, Sumgait Chemical Industrial Park (SCIP), and regional centers such as Ganja require racking systems capable of withstanding heavy turnover, multi-SKU cross-docking, and high static vertical loads. Racking systems exported to Azerbaijan cannot simply rely on legacy regional GOST standards; they must align with internationally recognised limit-state structural design standards such as EN 15512 and FEM 10.2.02, ensuring structural predictability under full operational capacity.
Baku and the Caspian coastal plain are situated in active seismic zones (MSK-64 scale Intensity VIII). Our engineering calculations integrate Eurocode 8 (EN 1998) seismic factors, incorporating ductile frame connections, thickened baseplates, and high-tensile chemical wedge anchors to prevent catastrophic beam dislodgement or frame buckling during ground acceleration.
Load-bearing safety originates at the steel mill. Our factory uses certified continuous cold-rolled structural steel coils, primarily high-strength Q235B and Q355B (equivalent to European grades S235JR and S355JR according to EN 10025). The upright columns feature a complex multi-bend omega profile (up to 12 distinct deformation folds across the profile cross-section), which significantly elevates the torsional stiffness and radius of gyration, counteracting local web buckling under massive compressive stress.
Beam profiles utilize interlocking box-sections formed by twin C-channels seamlessly seam-welded. Heavy-duty 3-claw and 4-claw connector plates are laser-welded with automated robotic arms, ensuring repeatable weld penetration without heat-affected embrittlement. Every connector is locked into the upright with high-visibility zinc-plated spring steel safety pins capable of resisting upward forklift impact forces exceeding 5 kN per beam end (EN 15635 compliance).
Facilities operating along the Absheron Peninsula face airborne maritime salinity combined with summer thermal highs exceeding 40°C. Standard commercial paint quickly degrades, leading to subsurface corrosion that impairs the structural integrity of thin-walled cold-formed members. Our manufacturing chain deploys a 5-stage automated surface pre-treatment line, including high-pressure alkali degreasing, zinc-iron phosphating, and deionized water rinsing.
This is immediately followed by a thermosetting epoxy-polyester architectural powder coat applied in a Swiss Gema electrostatic booth and cured at 180°C–200°C. The resulting finish delivers a dry film thickness of 70–90 microns, surpassing ASTM B117 salt spray testing for over 500 hours without blister creep, while maintaining high abrasion resistance against standard wooden Euro (1200x800mm) and ISO (1200x1000mm) pallet entry friction.
Tailored intralogistics configurations engineered for specific industrial zones and regional supply chain hubs across the Republic of Azerbaijan.
Cross-docking and bonded transit facilities handling rapid container turnover. Selective pallet racking systems integrated with heavy wire mesh decking and heavy-duty frame column guards to withstand fast-paced counterbalance and reach truck loading cycles.
Petrochemical, fertilizer, and industrial plastics plants within SCIP. High-capacity racking with custom beam spans, chemical-resistant thermoset coatings, and specialized flatbed coil cradles to safely store raw materials and polymer additives.
Central fulfillment hubs serving national supermarket chains (Bravo, Bazarstore, Araz). High-density drive-in and automated four-way pallet shuttle systems operating under strict FIFO and LIFO dispatch regimes for ambient and temperature-controlled consumer goods.
Controlled-atmosphere cold rooms storing fresh fruits, vegetables, and wines. Racking finished in hot-dip galvanized or specialized zinc-rich primers to eliminate oxidation in sub-zero humidity environments without structural metal loss.
Heavy oilfield logistics bases in Qaradagh and Sangachal. Cantilever racking structures engineered for seamless crane and side-loader handling of long drill strings, OCTG casing, pipeline valves, and hydraulic hose reels.
Fast-pick sorting facilities for e-commerce platforms operating within Absheron logistics parks. Multi-tier mezzanine floor platforms integrated with boltless medium-duty shelving, spiral chutes, and vertical reciprocating conveyors (VRC).
Evaluate selectivity, static volumetric density, equipment compatibility, and seismic design parameters prior to approving warehouse architectural layouts.
| System Classification | Pallet Access Ratio | Cubic Density | Dispatch Rotation | Forklift Compatibility | Seismic Class Suitability |
|---|---|---|---|---|---|

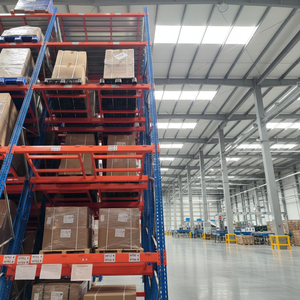

| Selective Pallet Racking | 100% Immediate | Standard (40-50%) | FIFO / LIFO | Standard Counterbalance, Reach | Zone 1 to 4 (Eurocode 8 Ready) |
| Double-Deep Pallet Rack | 50% Direct Access | High (60-65%) | LIFO | Pantograph Reach Truck | Heavy Base Anchoring Required |
| Drive-In / Drive-Through | Lane Dependent | Very High (75-85%) | LIFO (Drive-In) | Narrow Counterbalance | Reinforced Top/Back Cross Bracing |

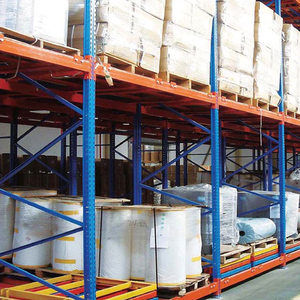

| Push-Back Cart Systems | Lane Front (2-6 Deep) | High (70-75%) | LIFO | Standard Counterbalance / Reach | Low Sensitivity (Self-Centering) |
| Automated AS/RS Shuttles | Automated Matrix | Maximum (85-95%) | FIFO & Dynamic | Stacker Cranes / 4-Way Shuttles | Dynamic Structural Rail Dampening |
| Heavy-Duty Cantilever | 100% Unobstructed | Medium | Any Flow | Side Loaders, 4-Way Reach, Cranes | Rigid Base Column Gusseting |
Combining heavy industrial manufacturing capacity with dedicated Eurasian freight logistics and full European structural engineering compliance.
Our complete manufacturing lifecycle conforms strictly to the EU Construction Products Regulation (CPR 305/2011/EU) and EN 1090-1 execution standards. We furnish formal Declarations of Performance (DoP), factory production control audit trails, and third-party certified steel mill certificates with every export batch shipped to Baku.
Our internal structural design team models every bespoke project using advanced Finite Element Analysis (FEA). We analyze multi-bay frame deflection limits, baseplate bearing pressures against Azerbaijani concrete grades (C20/25, C25/30, C30/37), and verify that beam deflections strictly adhere to the European L/200 structural threshold under maximum load.
We streamline cross-border freight logistics into Azerbaijan through established multimodal corridors. Cargo is securely containerized or flat-racked for rail transit across Central Asia to the Port of Aktau/Kuryk, or routed via the Poti/Batumi ports across Georgia directly into the Baku Customs Terminal, minimizing sea-freight disruption and handling damage.
Our plant operates 24 continuous cold-roll forming production lines equipped with in-line punch presses. Upright slotting pitches are punch-formed prior to rolling, guaranteeing precision within ±0.1mm tolerances across 12-meter continuous vertical sections, enabling rapid, non-binding beam clip insertion on site.
We do not supply off-the-shelf catalog racks; we engineer comprehensive warehouse solutions. Clients provide building architectural DWG files, and our engineers deliver optimized CAD layouts, flue space fire safety designs, aisle-width verifications matched to their exact forklift turn radii, and floor point load distribution charts.
Export bundles are packaged with multi-layer heavy corrugated interleaving, edge steel protectors, and heat-shrink polyethylene wrapping. Hardware and baseplates are packed in reinforced, steel-banded wooden crates, preventing transit scratching, ocean condensation damage, and deformation during intermodal transshipment.
Authoritative answers to common engineering, regulatory, customs, and operational questions for warehouse managers and developers in Azerbaijan.
While legacy Soviet GOST standards were historically widespread across Azerbaijan, modern commercial distribution centers, multinational logistics operators, and local insurers require compliance with European Norms (EN 15512, EN 15620, EN 15635). CE certification proves that the structural steel, welding metallurgy, and load ratings have undergone rigorous testing, ensuring facility safety, asset insurability, and compliance with modern corporate standards.
The Absheron region is classified under seismic hazard Category 8 on the MSK-64 scale. Under Eurocode 8 (EN 1998-1), our structural engineers apply seismic ground acceleration coefficients (ag) matched to the specific soil subsoil profile of the construction site. We engineer structural racking frames with reinforced baseplate thickness (8mm to 12mm), dual heavy chemical anchor bolts per foot, and diagonal spine bracing to dissipate dynamic lateral seismic inertia.
We provide a complete export documentation suite for seamless clearance through the State Customs Committee of the Republic of Azerbaijan. This includes the Commercial Invoice and Packing List specifying HS Code 7308.90 (Steel Structures), Certificate of Origin (Form A or CO), Mill Test Certificates (MTC EN 10204 3.1), CE Declaration of Conformity, and certified structural installation and loading drawings.
Yes. Our beams and bay depths are customized to store EUR pallets (800x1200mm), ISO/industrial pallets (1000x1200mm), or custom oversized skid configurations. For multi-type operations, we incorporate snap-in cross pallet support bars, drop-in wire mesh decks, or steel shelf panels to guarantee total bottom-load support regardless of how fork operators place incoming cargo.
For standard installations reaching 6 to 9 meters with bay loads of 6,000–9,000 kg, we recommend a reinforced concrete slab of minimum 180–200mm thickness with a compressive strength grade of C20/25 or C25/30 according to EN 206. Floor flatness must adhere to EN 15620 Class 300 or 400 tolerances to prevent forklift mast tilt and irregular point load amplification across upright footings.
Standard fabrication lead time is 15 to 25 business days depending on system tonnage and custom roll-forming schedules. Multimodal shipping across established trans-Eurasian rail lines or container freight to regional terminals typically requires 18 to 28 days transit time. Total project completion from CAD drawing sign-off to site delivery in Baku or Sumgait averages 5 to 7 weeks.
Our electrostatic epoxy-polyester hybrid powder coating is formulated specifically for industrial corrosion prevention. Combined with an automated chemical multi-stage iron-phosphate conversion wash, the cross-linked polymeric film resists chalking, micro-cracking from seasonal heat swings (from sub-zero winter temperatures to 42°C summer highs), and high coastal relative humidity in the Absheron maritime boundary layer.
Yes. We furnish comprehensive 3D assembly manuals, bolt torque schedules, and step-by-step installation guides. Additionally, we provide certified bilingual (English / Azerbaijani or Russian) Load Notice Plaques compliant with EN 15635, explicitly stating permissible bay weights, beam tier capacities, and safety operating criteria to satisfy domestic Ministry of Emergency Situations (FHN) safety audits.
Send us your warehouse CAD drawings, clear ceiling heights, and pallet specifications. Our senior structural logistics engineering team will prepare an optimized 2D/3D layout proposal, bay capacity schedule, and direct factory pricing within 24 business hours.
