What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

Industrial Heavy-Duty Shuttle Car Racks for Automated Pallet Warehouse Rack System Warehouse Shuttle System LIFO Shuttle Racking

1 / 5

Industrial Heavy-Duty Shuttle Car Racks for Automated Pallet Warehouse Rack System Warehouse Shuttle System LIFO Shuttle Racking

Send Inquiry

Product Description

RADIO SHUTTLE RACK

Automatic Storage Systems Smart Warehouse Racks Automated Shuttle System Pallet Racking For Transportation

Products Description

SHUTTLE SYSTEM OVERVIEW

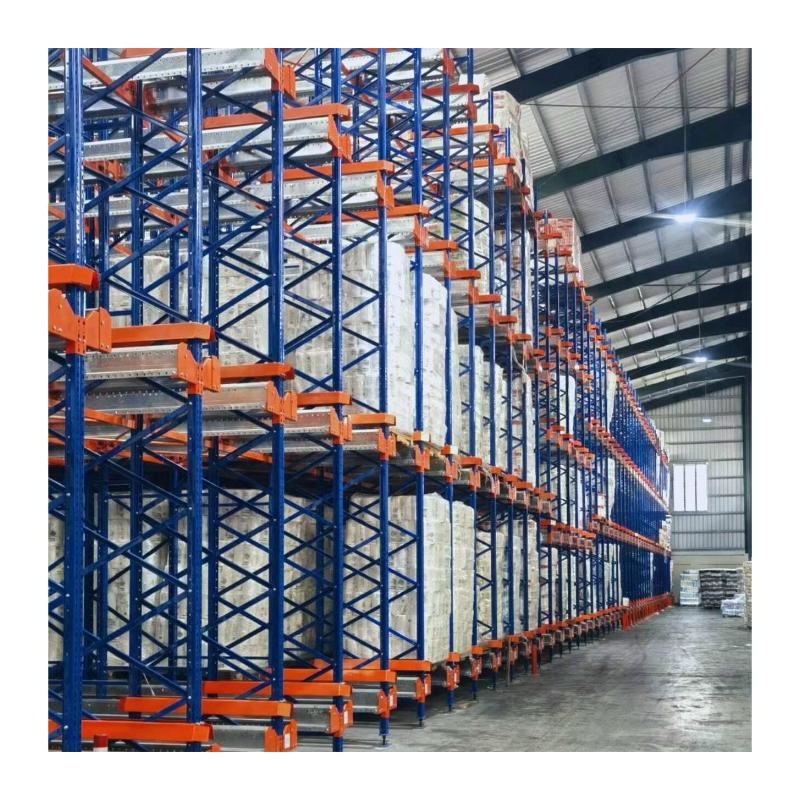

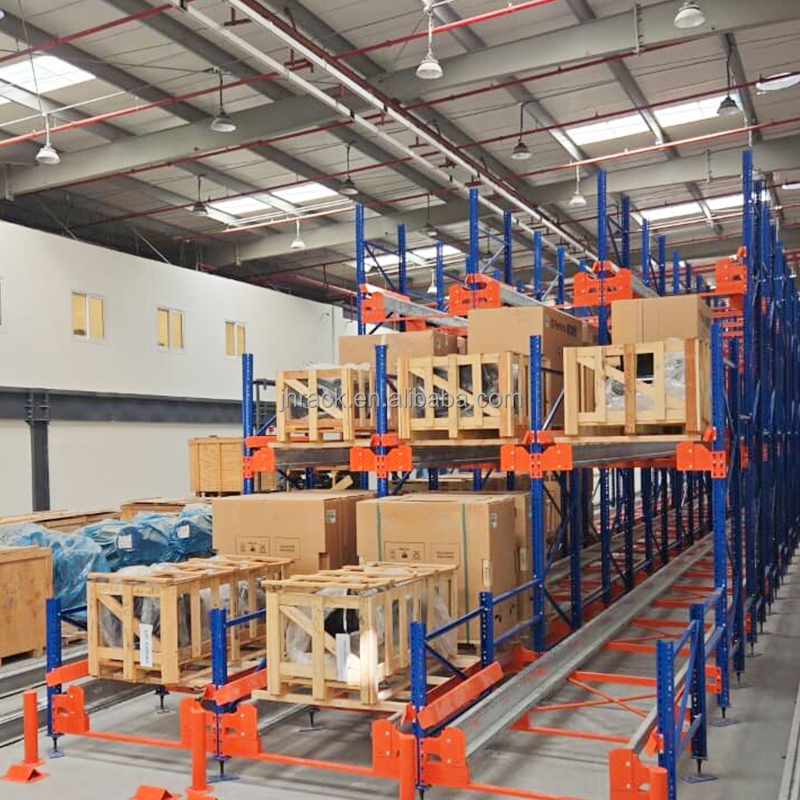

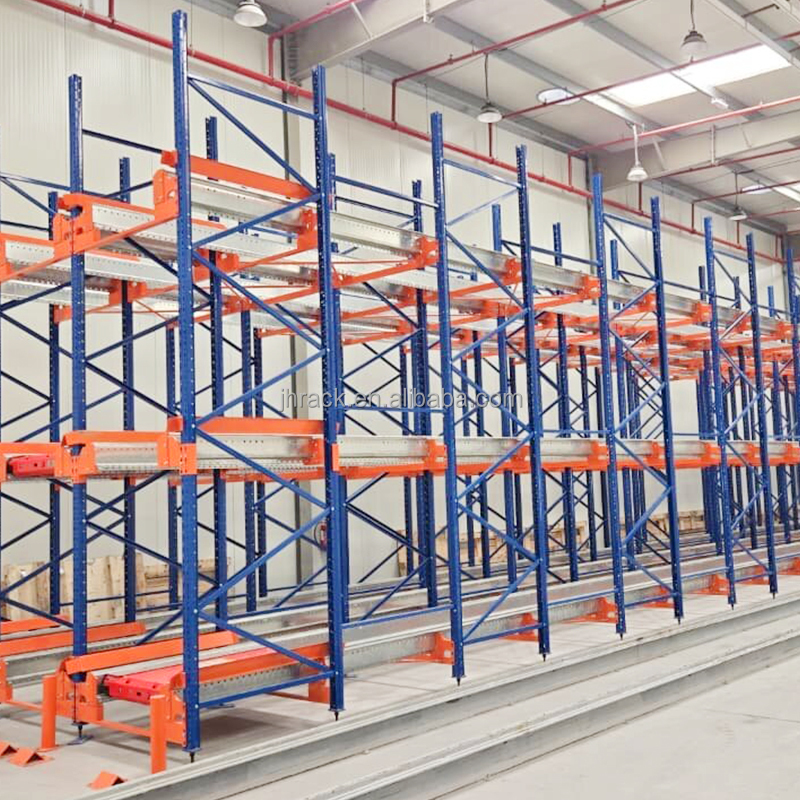

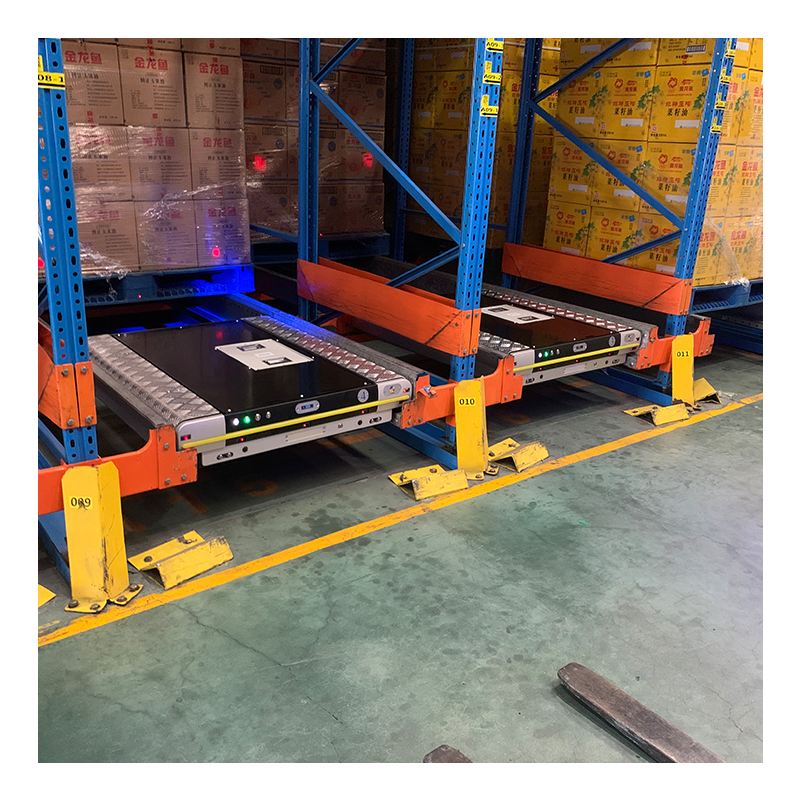

The shuttle racking system is a high-density storage system composed of racks, remote-controlled shuttles, and forklifts. Utilizing the characteristics of the shuttle car itself, combined with the mother-son car, stacker, warehouse management software, etc., the system can be transformed into a shuttle stereoscopic warehouse storage system.

Operational Advantages

First-in-first-out and first-in-last-out modes are available. The forklift does not need to enter the tunnel, saving operation time. The space utilization rate is over 80%, which significantly improves the safety and efficiency of personnel and goods.

Technical Specification

Color	RAL5005 Blue & RAL2004 Orange	Material	Q235B steel
Usage	Warehouse Storage	Certification	CE / ISO
Size	Customer Size	Structure	Assembled Freely
Height	1350mm - 12000mm	Capacity	500-2000kg/layer
Width	300mm - 1500mm	Thickness	1.5mm - 3.0mm
Style	Radio Shuttle Rack	Packing	Customers' Request
Brand	JINHUI	Port	Nanjing / Shanghai

Company Profile

Nanjing Jinhui Storage Equipment Co., Ltd.

We established in 2006, is a professional engaged in the research, development, sale and service of pallet racking, mezzanine floor, cantilever racking, light and middle duty shelving, and steel pallet.

We are located in Nanjing city with convenient transportation access. Equipped with advanced streamlined product line and a sophisticated team of installing and after-service personnel to guarantee a smooth experience. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements.

CE Certified ISO9001 Certified ISO14001 Certified TUV Certified OEM & ODM Available

Anhui Industry Park Area: 40,000 m²

Employees: More than 50

Nanjing Industry Park Area: 20,000 m²

Employees: More than 50

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Certificates & Joint Venture

Frequently Asked Questions

Q1: Are you a factory or trading company?

A: We are a professional manufactory for storage rack systems.

Q2: Where is your factory located? How can I visit there?

A: Our factory is located in Nanjing City, Jiangsu Province, China. You can fly directly to Nanjing Lukou International Airport, and we will pick you up there. All clients are warmly welcome to visit us!

Q3: What is the raw material used for your products?

A: The standard high-quality material we choose is Q235B steel.

Q4: What is the standard packaging for export?

A: We use standard export packaging. All parts are securely packed with steel belts and covered with protective plastic film.

Q5: What are your terms of payment and loading ports?

A: Payment terms: T/T or LC at sight. Loading ports: Nanjing or Shanghai port.

Q6: What is your estimated delivery time?

A: Delivery time depends on order quantity and racking types, typically taking 15 to 30 days after receipt of deposit.
