What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

Warehouse Racking & Shelving Supplier in UAE | GENEX

Product description

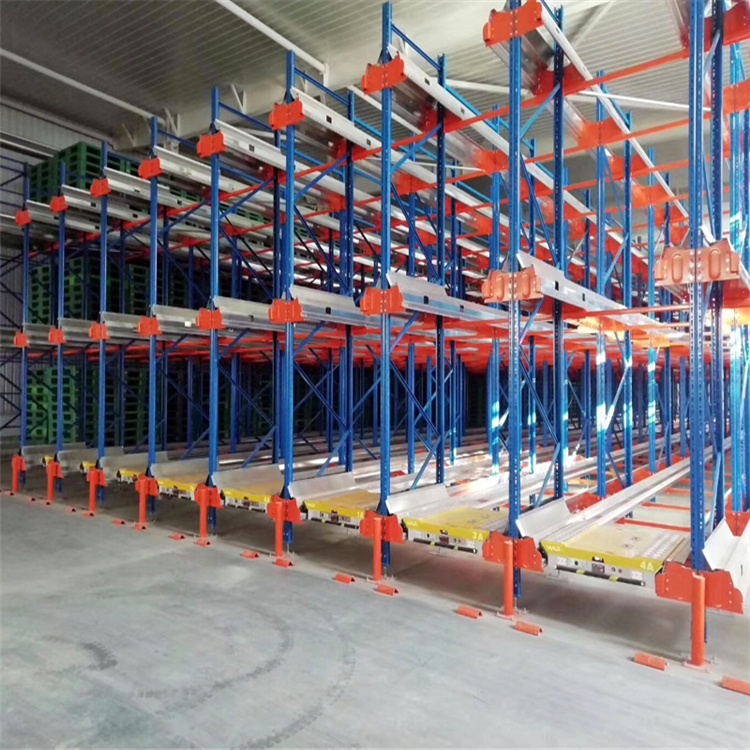

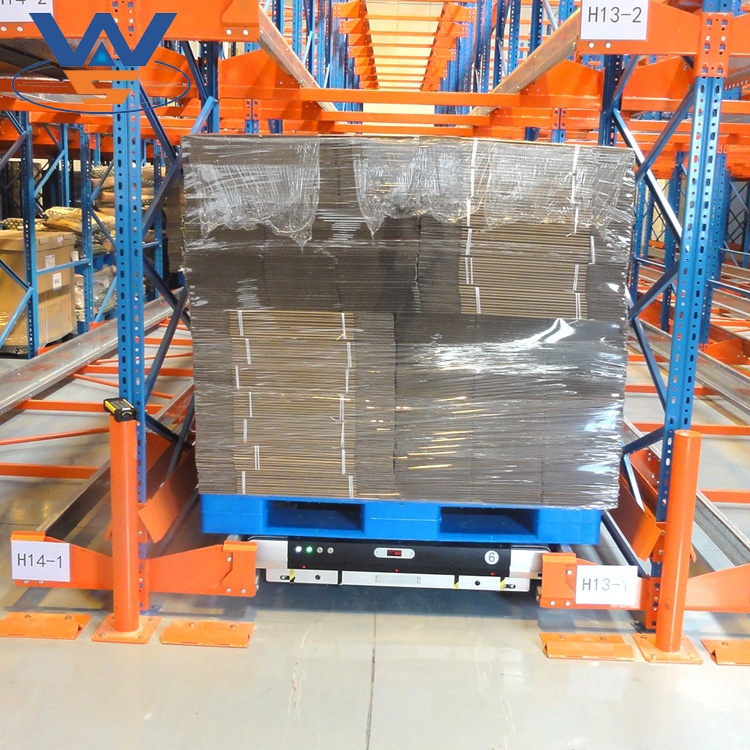

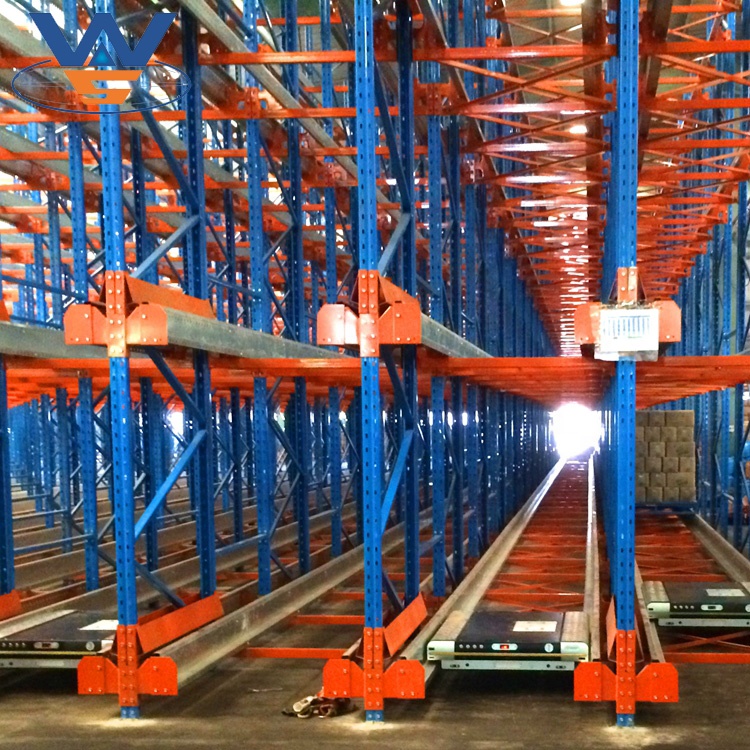

Radio shuttle rack is a new innovation of Semi-Auto Warehouse Management that can store up to 90% of the total area. With the usage of Shuttle Car that can be controlled by the remote unit. This process of taking cargoes in and out from the rack can be speedy and accurately with the position control system.

Property & Advantage:

Can store up to 90% of the total area
Can store with both Last In First Out (LIFO) and First In First Out (FIFO) system
Can reduce crashed between forklift and rack

Type	Heavy duty steel warehouse radio shuttle rack
Dimension	Width: Customized Depth: Customized Height: Customized
Box Beam	80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm
Upright	80x60, 90x70, 100x70, 120x95mm, thickness: 1.8-3.0mm
Surface treatment	Electrostatic powder coating surface
Color	RAL color per customer's requirement
Weight capacity	500--5000kg
Package	Export package by steel straps and plastic films.
OEM	Available

Pallets for radio shuttle racking system

Wooden pallet

Plastic pallet

Steel pallet

Product components

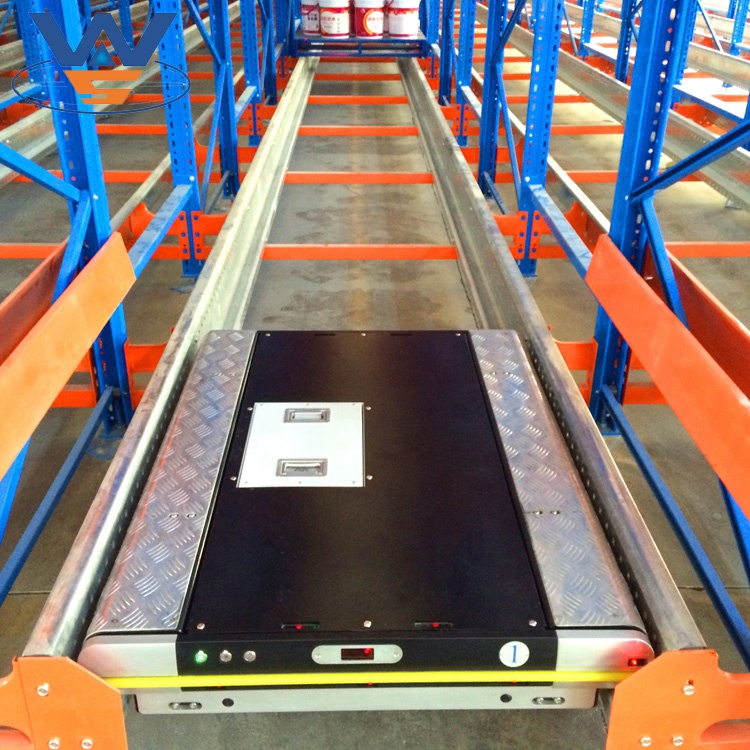

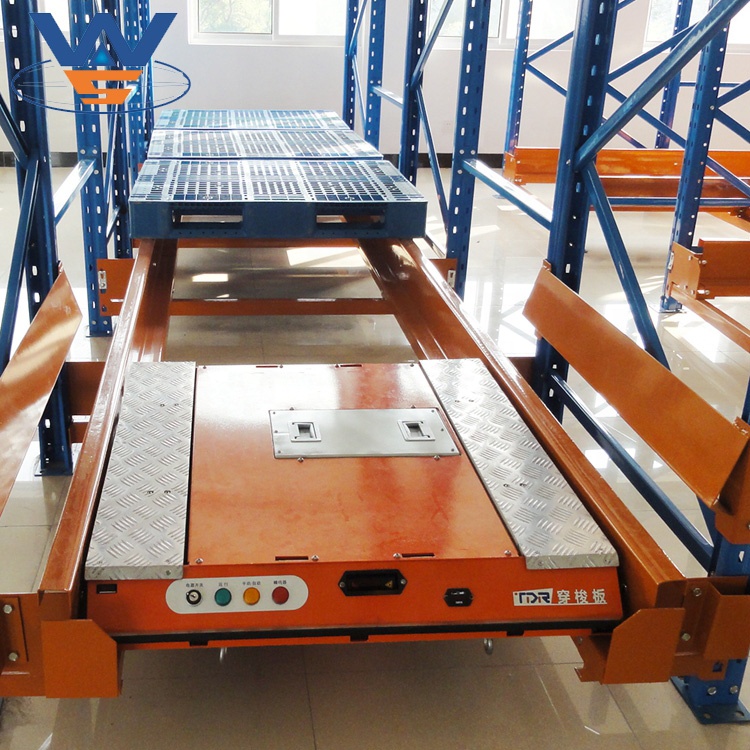

Shuttle car

Remote control (included)

Charger (included)

Charging cabinet (additional purchase)

Shuttle Car Parameters

Parameters		Standard type	Low temperature type	Advanced type
Loading capacity		Max 1500kg
MOVE	Running speed	Vmax_empty: 1.0m/s Vmax_full: 0.8m/s	Vmax_empty: 1.0m/s Vmax_full: 0.8m/s	Vmax_empty: 1.2m/s Vmax_full: 1.0m/s
	Drive motor	Brush servo motor 48VDC 550W		Imported non-brush servo motor 48VDC 600W
	Servo driver	Domestic customized servo driver		Imported non-brush servo driver
LIFT	Lift motor	Servo motor 48VDC 400W	-	Brush motor 48VDC 400W
LIFT	Lift height	40mm
Move positioning: Laser		Germany P+F/SICK
Pallet positioning: Laser		Germany P+F/SICK
Lift control: approach switch		Germany P+F
Object detection		Germany P+F/SICK
Control system		Siemens S7-200 PLC	Siemens S7-1200 PLC	Siemens S7-200 PLC
Remote controller		Imported Tele-radio
Power supply		Lithium battery
Battery capacity		48V, 30AH	48V, 40AH	48V, 40AH
Running time		≥ 8h
Charging time		3H
Battery lifetime		Charge times ≤ 1000
Noise		≤ 60db
Painting		Frame (black) Others (grey)		Frame (black) Others (grey)
Ambient temperature		Temp: 0℃~50℃ Humidity: 5% ~ 95%	Temp: -25℃~50℃ Humidity: 5% ~ 95%	Temp: 0℃~50℃ Humidity: 5% ~ 95%

Case display

Company Profile

Product packaging

Frequently Asked Questions

Q Are you a factory or trading company?

We are a factory. We specialize in all kinds of warehouse storage rack.

Q Where is your factory located? How can I visit there?

Our factory is located in Nanjing City, Jiangsu Province, China. You can fly to Nanjing airport directly. You are warmly welcome to visit us whenever you are available!

Q What is the raw material of your products?

The raw material of steel code is Q235. Other steel is also available to clients' requirements.

Q What is the term of payment and delivery times?

TT, LC, and Western Union are available. In general, delivery is within 15 days after deposit.

Q How could you guarantee the products quality?

We have professional engineers to check what size should be used to guarantee your load weight request. Before shipping, our quality control also carefully checks whether the quality is approved.

Q How could I install the racks?

We provide detailed installation drawings to guide you through installing the racks. If needed, we can also provide an engineer to assist with installation, with related travel expenses (flight, living, and meals) covered by the client.
