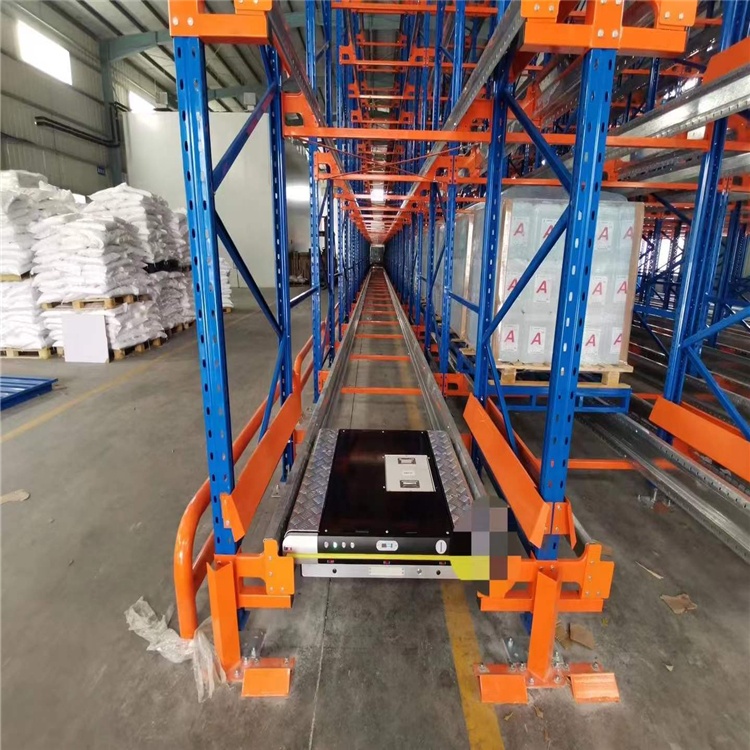

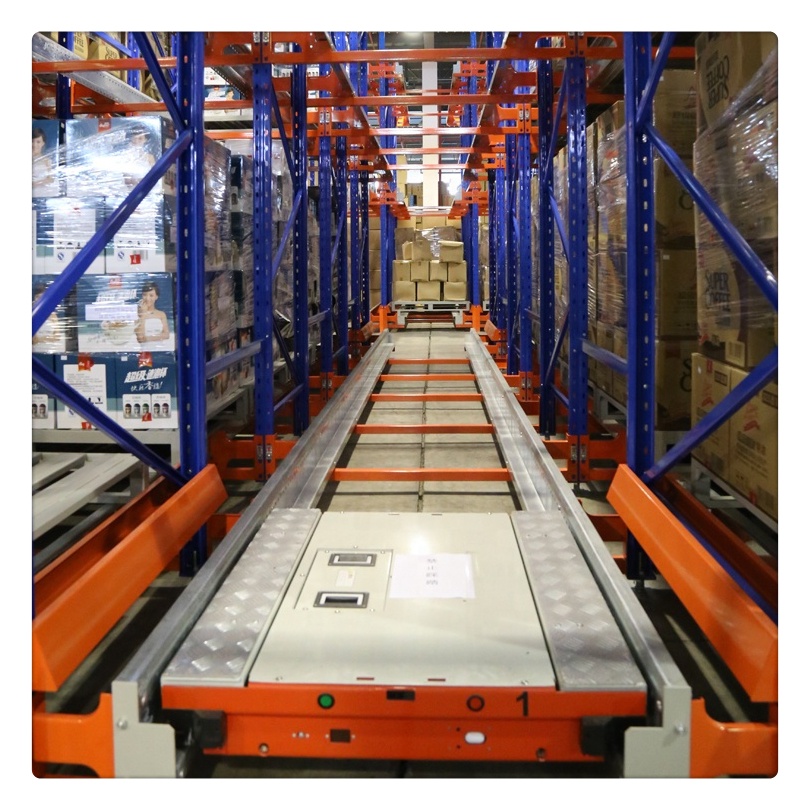

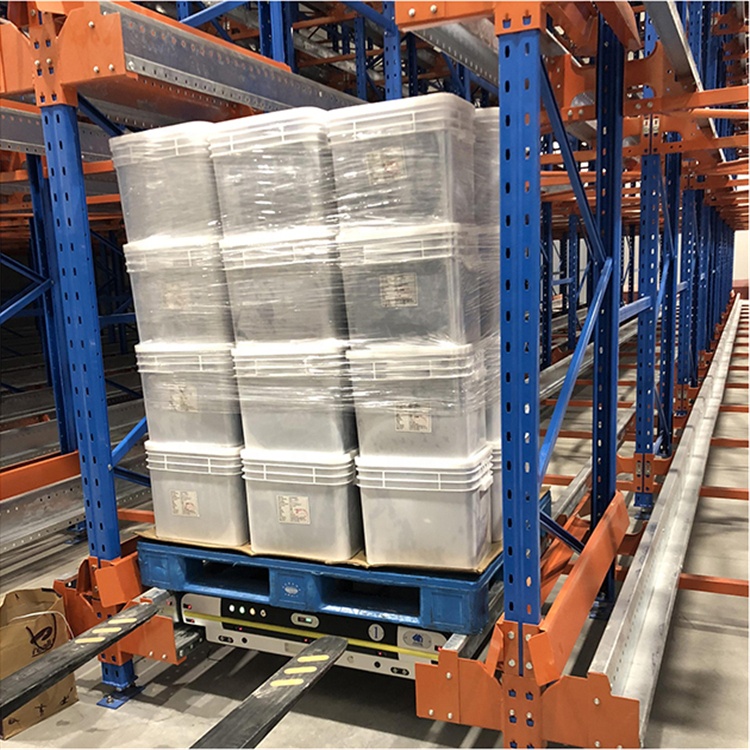

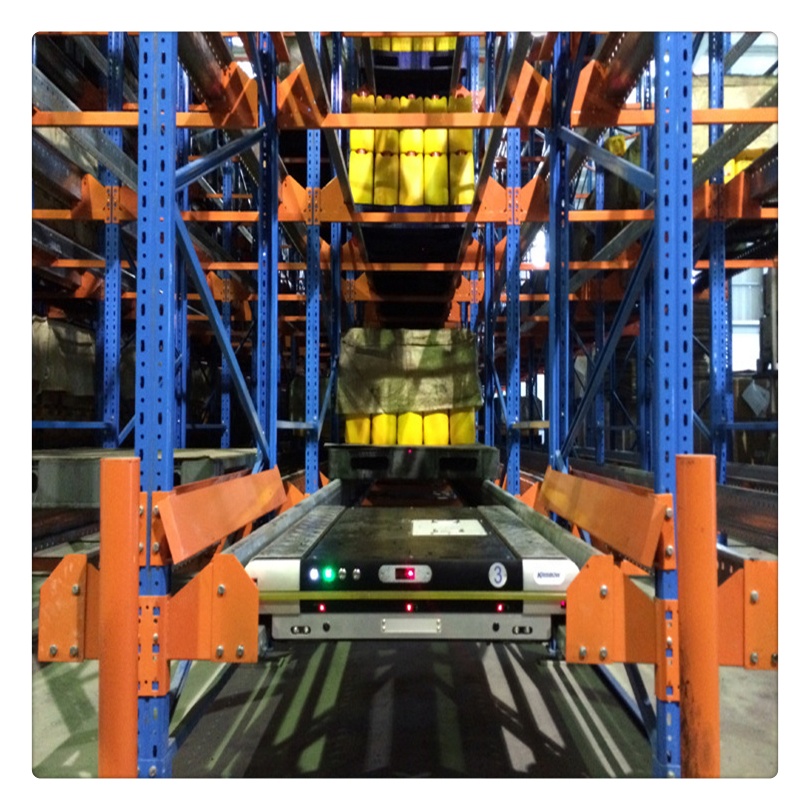

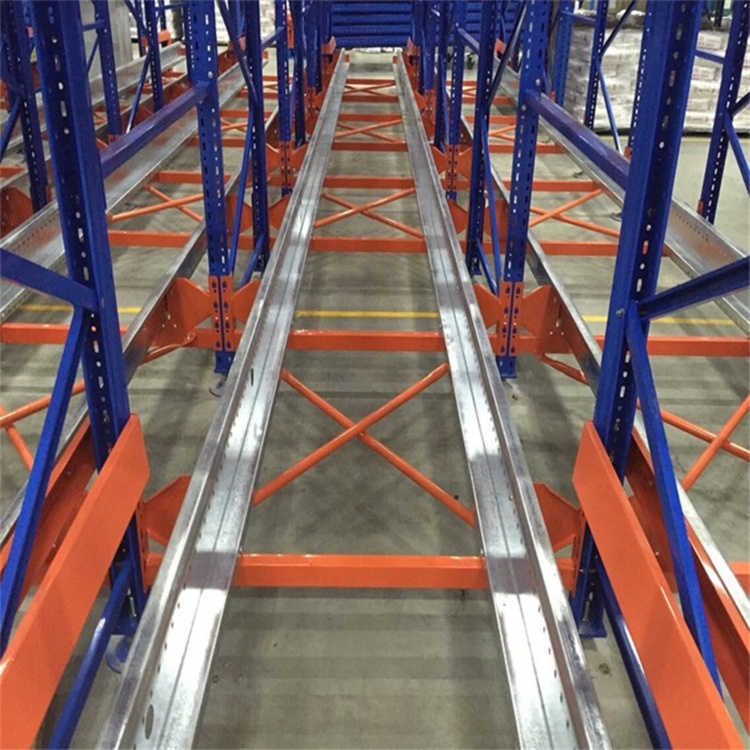

Radio shuttle rack is a new innovation of Semi-Auto Warehouse Management that can store up to 90% of the total area. With the usage of Shuttle Car that can be controlled by the remote unit. This process of taking cargoes in and out from the rack can be speedy and accurately with the position control system.
| Type | Heavy duty steel warehouse radio shuttle rack |
| Dimension | Width: Customized Depth: Customized Height: Customized |
| Box Beam | 80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm |
| Upright | 80x60, 90x70, 100x70, 120x95mm, thickness: 1.8-3.0mm |
| Surface treatment | Electrostatic powder coating surface |
| Color | RAL color per customer's requirement |
| Weight capacity | 500--5000kg |
| Package | Export package by steel straps and plastic films. |
| OEM | Available |
| Parameters | Standard type | Low temperature type | Advanced type | |
|---|---|---|---|---|
| Loading capacity | Max 1500kg | |||
| MOVE | Running speed | Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.2m/s Vmax_full: 1.0m/s |
| Drive motor | Brush servo motor (48VDC 550W) | Imported non-brush servo motor (48VDC 600W) | ||
| Servo driver | Domestic customized servo driver | Imported non-brush servo driver | ||
| LIFT | Lift motor | Servo motor (48VDC 400W) | Brush motor (48VDC 400W) | |
| Lift height | 40mm | |||
| Move positioning: Laser | Germany P+F/SICK | |||
| Pallet positioning: Laser | Germany P+F/SICK | |||
| Lift control: approach switch | Germany P+F | |||
| Object detection | Germany P+F/SICK | |||
| Control system | Siemens S7-200 PLC | Siemens S7-1200 PLC | Siemens S7-200 PLC | |
| Remote controller | Imported Tele-radio | |||
| Power supply | Lithium battery | |||
| Battery capacity | 48V, 30AH | 48V, 40AH | 48V, 40AH | |
| Running time | ≥ 8h | |||
| Charging time | 3H | |||
| Battery lifetime | Charge times ≤ 1000 | |||
| Noise | ≤ 60db | |||
| Painting | Frame (black) / Others (grey) | |||
| Ambient temperature | Temp: 0°C ~ 50°C Humidity: 5% ~ 95% |
Temp: -25°C ~ 50°C Humidity: 5% ~ 95% |
Temp: 0°C ~ 50°C Humidity: 5% ~ 95% |
|
