| Model | Type | Load Capacity (tons) | Speed (m/s) | Lift Height (m) | Track Gauge (m) | Power Supply Type | Control Mode | Application Scenarios | Technical Features |
| HSM-1500 | Light-duty Stacker | 500-1000 | 0.5-1.2 | 8-15 M | 2.5-4 | Three-phase AC 380V | Manual/Semi-automatic | Warehouse logistics, light industry | Compact structure, low noise, suitable for narrow aisles; supports multi-vehicle scheduling system. |
| HSM-3000 | Medium-duty Stacker | 1-3 ton | 1.5-2.5 | 15-25 | 4-6M | Three-phase AC 380V/415V | Fully automatic (PLC control) | Manufacturing industry, vertical warehouses | High-precision positioning with laser ranging; optional anti-collision sensors and safety light curtains. |
| HSM-5000 | Heavy-duty Stacker | 3-5 tons | 1.2-2.0 | 25-35 | 6-8M | Variable frequency drive system | Fully automatic (Intelligent control) | Ports, large warehouses, heavy manufacturing | High-load stability, resistant to high temperatures/corrosion; supports multi-vehicle collaborative operation and fault self-diagnosis. |
| HSM-HS | High-speed Stacker | 500-800 | 2.5-4.0 | 10-20M | 2-4M | High-frequency variable frequency drive | Fully automatic (AI optimization) | High-frequency warehouses, sorting centers | Ultra-fast response, dynamic path planning; equipped with dual redundant brake system to ensure safety at high speeds. |
| HSM-EX | Explosion-proof Stacker | 1-2 tons | 0.8-1.5 | 10-18M | 3-5M | Explosion-proof motor (Ex d IIB T4) | Explosion-proof PLC control | Hazardous materials warehouses, petroleum industry | Explosion-proof certification, suitable for flammable and explosive environments; fully sealed design, anti-corrosion materials. |
| HSM-MINI | Mini Stacker | 100-300 | 0.3-0.8 | 3-8M | 1.5-2 | Single-phase/Three-phase AC | Manual remote control | Small warehouses, laboratories | Compact size, flexible steering; customizable fixtures to handle special goods. |

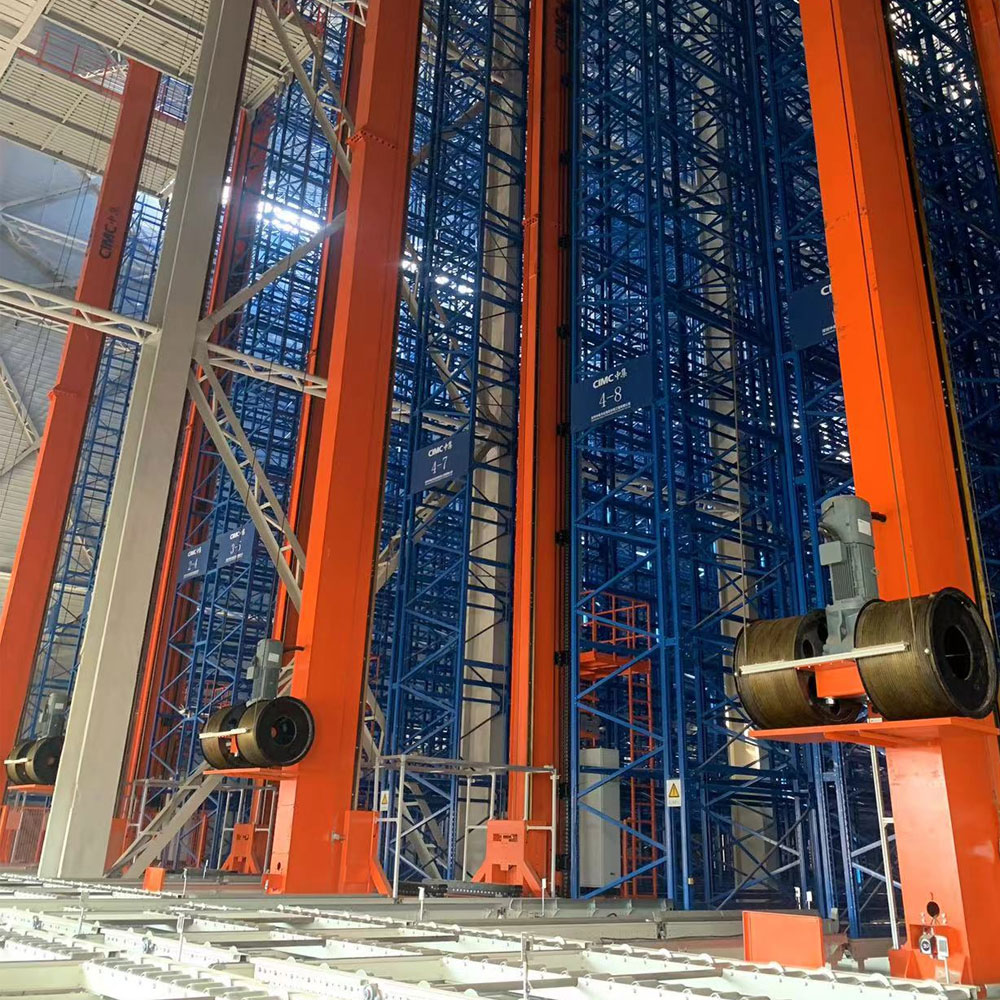

| Item | CIMC Pteris Asrs System Warehouse Automated Stacker Crane Storage Automatic Retrival Racking System |
| Material | High-strength Q355 steel |
| Feature | Corrosion Protection, High Density Storage, High Speed & Throughput, All-Environment Operation, Travel speed 300 m/min, lift speed 180 m/min |
| Surface Treatment | Galvanized, powder coated, Waterborne finish coat, Primer, Sand-blast |
| Special Feature | Safety Systems, Standard, Adjustable, Waterproof, Extra-High, Economy, -30 °C to 40 °C, cold, explosion-proof, clean-room, energy recovery, rope-slack/overspeed detection, anti-fall |
| Installation | Pallet Racking, assembly wheelsets, onboard maintenance, T-rail insertion type |
| Parameter | Description |
| Type | Stackers (Double-column, Aisle, High-Bay) |
| Load Capacity | 500 kg – 3,000 kg |
| Horizontal Travel Speed | 0.5 – 2.5 m/s (Adjustable via PLC) |
| Vertical Travel Speed | 0.3 – 1.5 m/s (Adjustable via PLC) |
| Lifting Height | Up to 40 meters (Customizable based on warehouse requirements) |
| Horizontal Travel Range | Up to 200 meters (Customizable) |
| Motor Type | AC Servo Motor (High Precision, Energy Efficient) |
| Control System | PLC-based with touchscreen interface (Supports CAN Bus, Ethernet Communication) |
| Safety Features | Laser rangefinding, emergency stop buttons, overload protection, anti-collision |
| Power Supply | 380V, 50Hz / 60Hz |
| Noise Level | ≤65 dB (At rated load) |
| Application Industries | Warehousing, Logistics, Automotive, Pharmaceuticals, Electronics |
| Manufacturer | CIMC (ISO 9001 Certified) |
| Model Series | CIMC-USC20D, CIMC-USC24D, CIMC-USC27D, CIMC-USC30D, CIMC-USC35D, CIMC-USC40D, CIMC-USC45D, CIMC-USC12S, CIMC-USC18S, CIMC-USC20S, CIMC-USC24S, CIMC-USC30S, CIMC-USC35S, CIMC-USC40S, CIMC-USC45S, CIMC-MSC9S, CIMC-MSC12S, CIMC-MSC18S, CIMC-MSC24S |
