What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

Customized Competitive Industrial Warehouse Storage Steel Heavy Duty Pallet Rack

1 / 5

Customized Competitive Industrial Warehouse Storage Steel Heavy Duty Pallet Rack

Send Inquiry

Product Description

Products Description

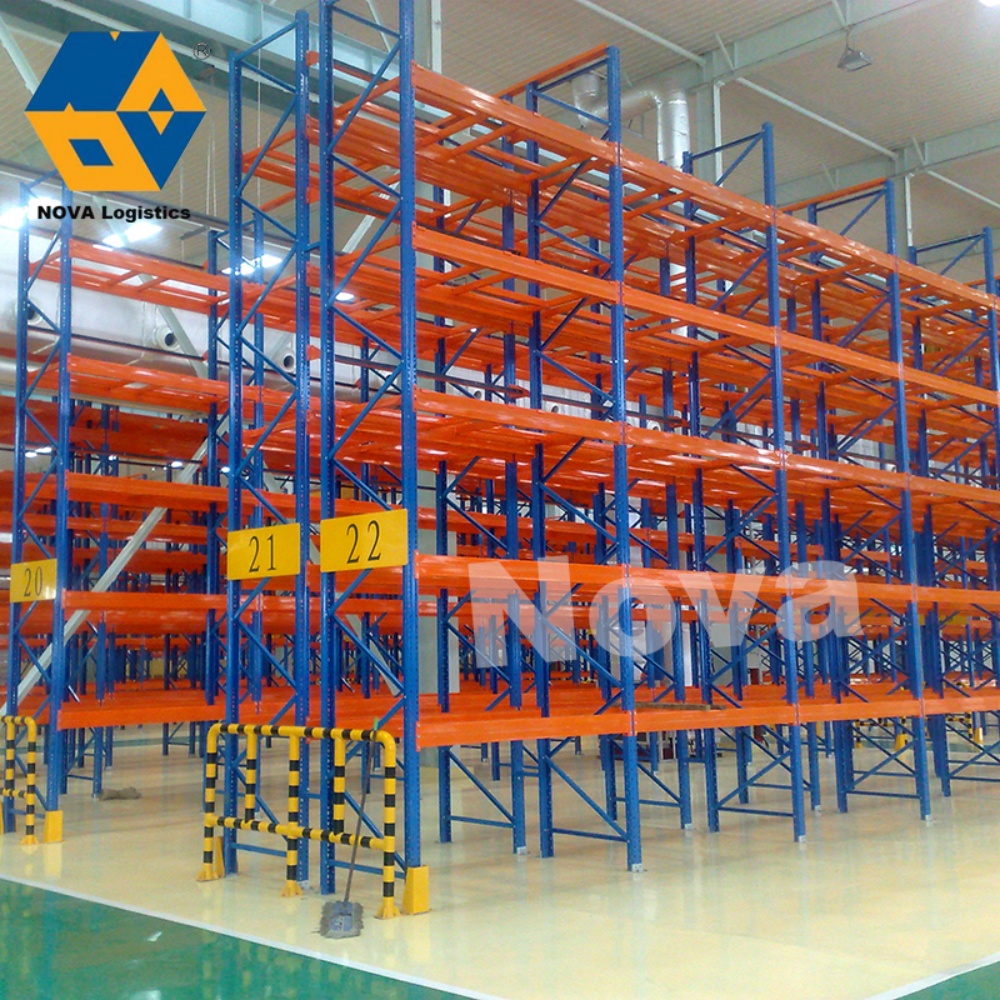

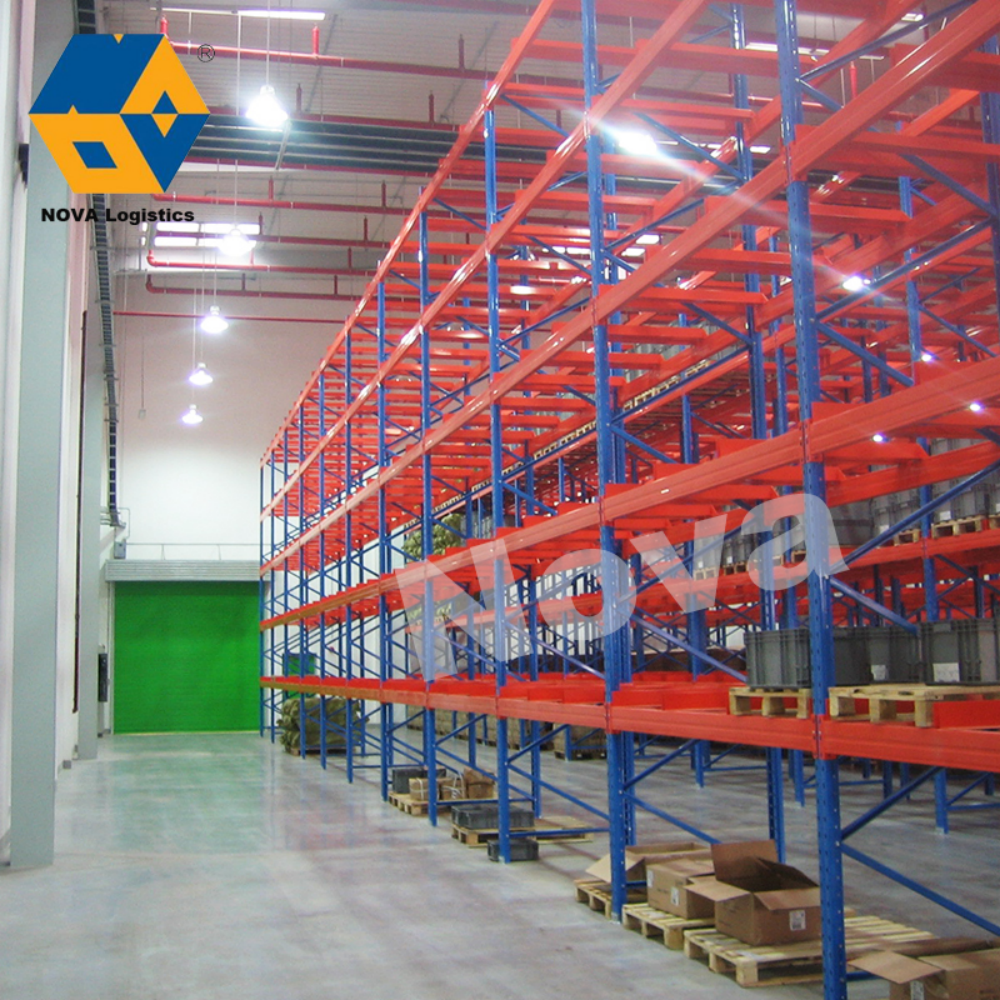

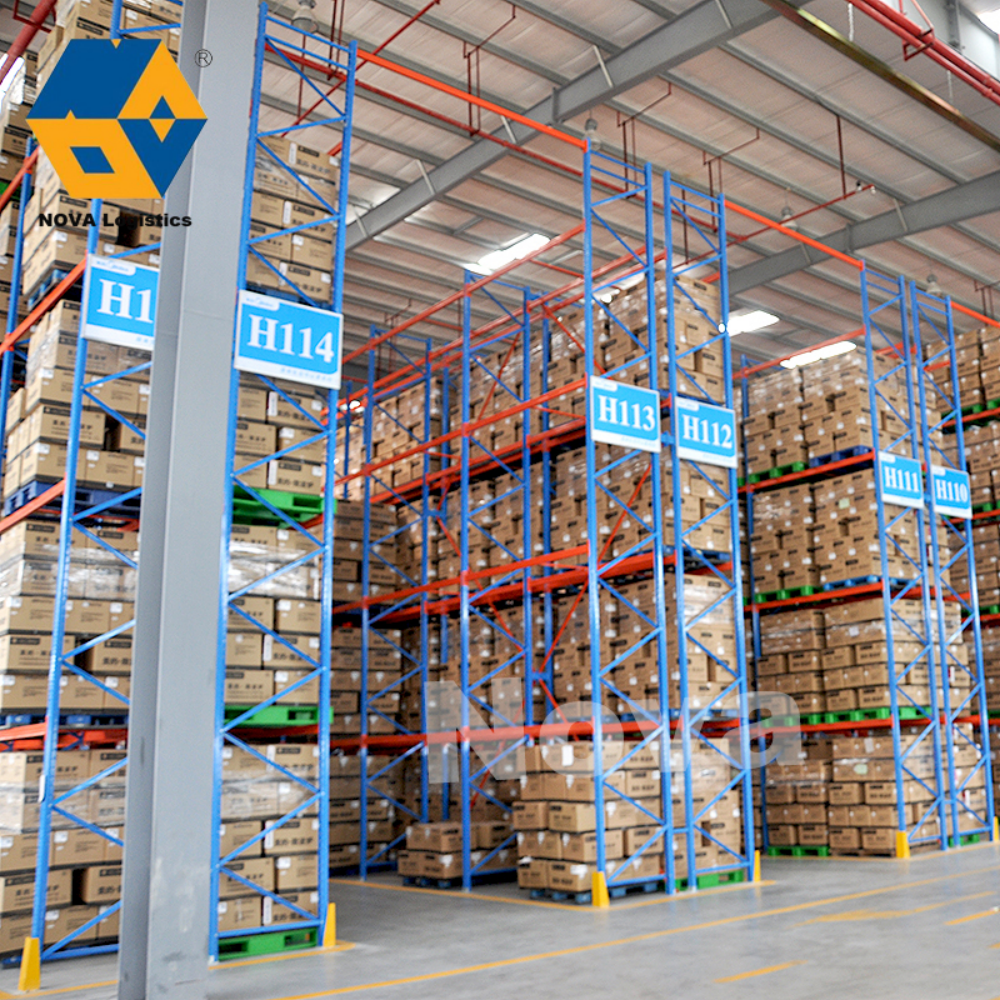

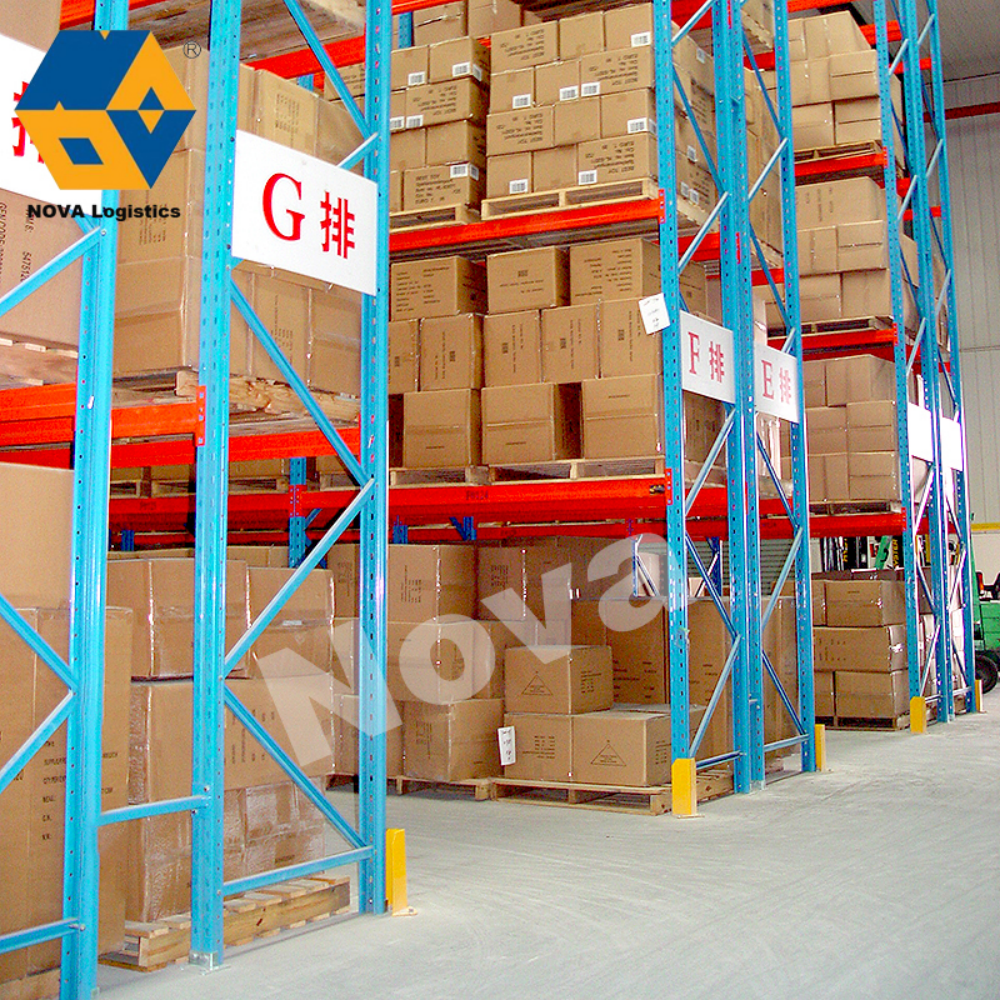

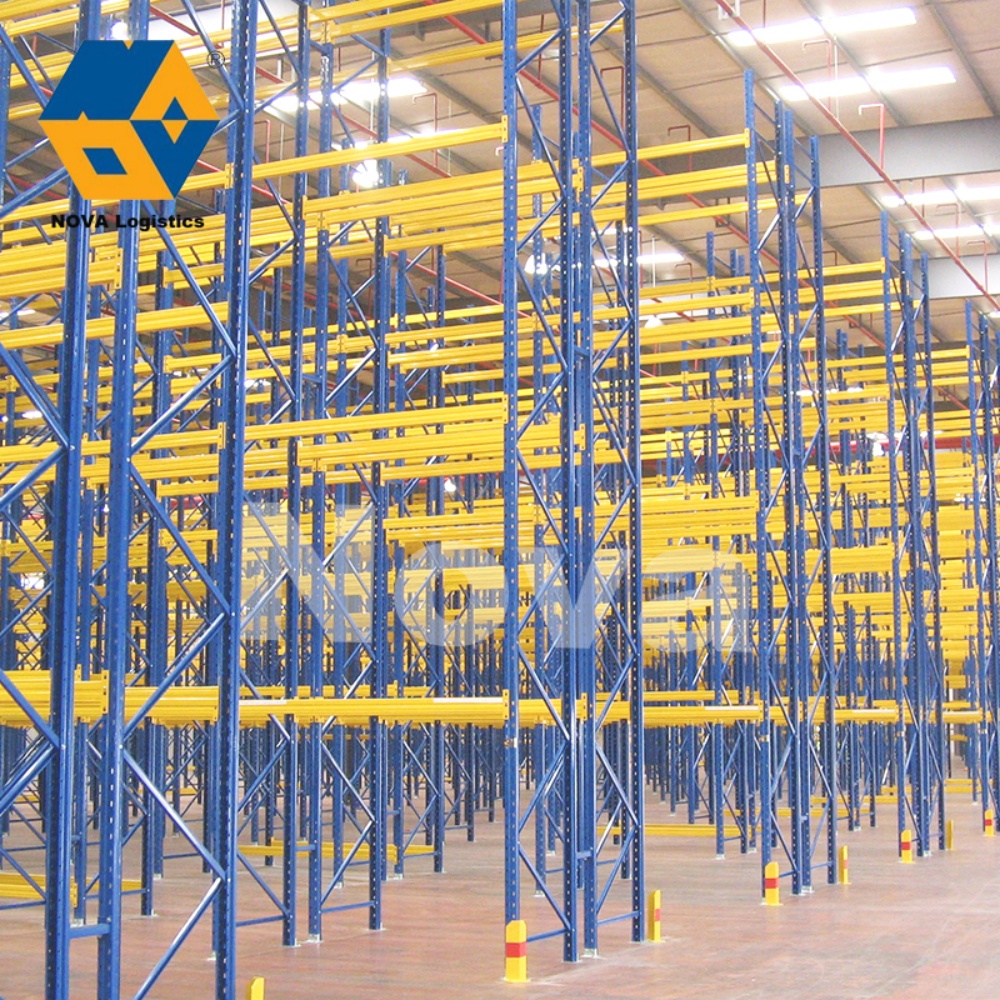

Heavy Duty Pallet Beam Racking

Plug-in composite structure, the height of each beam is easy to adjust by pitch 75mm freely, smart section design and high quality steel.

It facilitates the use of most forklift trucks such as common forklift trucks, electric reach trucks, narrow aisle turret trucks, it is the most widely used design scheme of the storage system.

Key Features

✓ Quick & easy tap together assembly, boltless.
✓ Industrial grade shelving with 5 treated chipboard wood shelf levels per bay.
✓ Push-on feet included for added stability & floor protection.
✓ Heavy-duty uniformly distributed load per shelf level.
✓ Centre support struts prevent each shelf from sagging.
✓ Tough powder coated or galvanized finish.
✓ Adjustable shelf levels at every 40mm.
✓ Fixing holes at every 40mm for optional connecting bays together or fixing to a wall.
✓ Compatible with shelving bay connectors available.

Frame:	Height (2-13m) \| Depth (600-1,400mm) Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm Thickness: 2.0/2.3/2.5/3.0mm
Beam:	Length (1200-4000mm) Beam section: 80 x 50; 100 x 50; 110x50; 120 x 50; 140 x 50mm Thickness: 1.4--1.5mm
Load capacity:	1-4 Tons / Layer
Necessary accessories:	Free (bolts & nuts, base plate, etc)

Details Images

Packaging & Shipping

Company Profile

Jiangsu Nova Intelligent Logistics Equipment Co., Ltd established in 1997, one of the largest integration enterprises for smart logistics systems and automated warehouse systems. NOVA is a professional engaged in the research, development, sale and service of pallet rack; automated storage and retrieval system; mezzanine; drive-in racking; long span shelving etc. With three logistics equipment processing base in Nanjing, Hebei and Anhui, annual production capacity is more than 60000 tons.

NOVA has exported its products to more than 120 countries which are distributed all over the 5 continents. NOVA is dedicated to professional design; accurate production process; strict quality controlling and comprehensive after-sale service; it enjoys a high reputation and praise in both domestic and overseas markets with the product of high quality and reasonable price.

Up to now, by learning from our international counterparts, introducing advanced technology. NOVA always keeps improving and innovating new products. NOVA has built a technology R & D center in Nanjing and owned some national patents. Besides, because of large overseas markets, most of our products have got ISO 9001, ISO 14001, SA 8000, and CE certificates. All of these contribute to today's NOVA who has become the designated supplier of logistics equipment for well-known enterprises both at home and abroad. Sticking to persistent improvement and innovation, NOVA will achieve much more in the future. We are glad to work together with you and finally bring you the satisfied products.

Our Advantages

Exhibitions

Frequently Asked Questions

Q1 Are you distributor or manufacturer?

We are manufacturer. NOVA was established in 1997, one of the largest integration enterprise for smart logistics system and automated warehouse system. Business scope covers planning, design, manufacture, installation, maintenance and consulting services.

Q2 What's your trading terms?

1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading.
2) Lead time: normally in 15-35 days after deposit received.
3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing China.
5) Discounts: we offer good discount for large quantity.

Q3 How can I deliver my goods?

1) Sea freight: we will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

Q4 What is your service?

1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
5) Warranty: 10 years warranty, the broken parts will be replaced and sent to you.

Q5 How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping

Q6 May I know the status of my order?

Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
