Fabricated using structural S355/Q355 cold-formed carbon steel, precision CNC laser-cut beam connectors, and wear-resistant polyurethane gravity rollers. Built to satisfy stringent European and Benelux intralogistics standards.

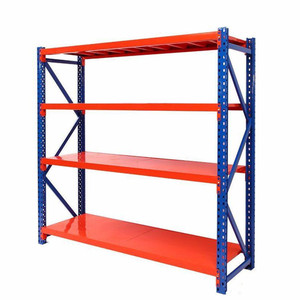

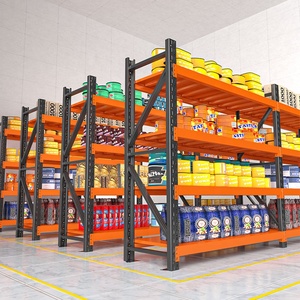

Modular boltless warehouse steel shelving designed with anti-corrosion electrostatic powder coatings, suited for manual pick faces, small batch carton storage, and secondary mezzanine integration.

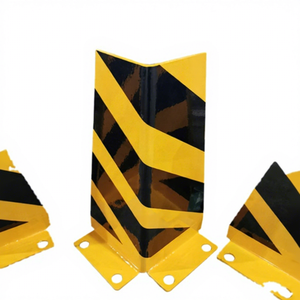

Reinforced 5mm thick cold-rolled structural steel protector anchoring directly to C25/30 floor slabs, dissipating heavy forklift lateral strikes to safeguard vulnerable aisle entrance uprights.
Multi-tier rack-supported platforms doubling usable building square footage without structural building modifications, equipped with heavy-duty steel grating and integrated loading safety gates.
Engineered box-beam and omega-profile upright configurations rated up to 4,500kg per level, fabricated for heavy industrial spares, machinery casting storage, and large container staging.
Floor-anchored wraparound U-shields coated in high-visibility safety yellow (RAL 1023) to shield end-of-row frames from counterbalanced forklifts in tight European aisle configurations.

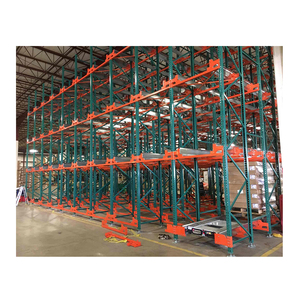

Intelligent semi-automated pallet shuttle system operating within ultra-deep storage channels, delivering maximum volumetric density alongside live gravity systems for temperature-controlled cold rooms.
Retractable slide-out drawer shelving with high-tensile guide rails designed to hold heavy injection molds, tooling dies, and precision stamping equipment with crane hoist access.

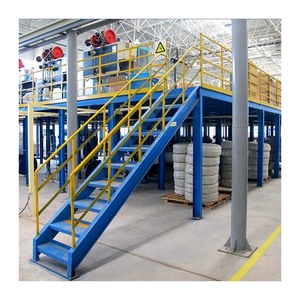

Integrated structural staircases, egress platforms, and self-supporting rack-clad warehouse building components manufactured in strict accordance with EN ISO 14122 safety standards.
A comprehensive look at kinetic regulation, roller bed inclination gradients, and load separation dynamics designed for high-throughput distribution environments.
Gravity pallet racking (alternatively designated across continental Europe as Pallet Live Storage, Dynamic Racking, or Durchlaufregal) represents the pinnacle of passive mechanical handling. Operating on an inclined plane that capitalizes on natural earth gravity, pallets advance autonomously along heavy-duty roller beds from the replenishment loading face (infeed) to the retrieval picking face (outfeed). This physical separation of loading and picking channels eliminates internal traffic choke points and establishes a foolproof First-In, First-Out (FIFO) logistical circuit.
Unlike static selective racking systems that demand expansive intermediate aisles for reach trucks or counterbalanced forklifts, a continuous gravity flow block requires merely two operational corridors: one dedicated to stock introduction and one reserved for outbound order retrieval. In prime European transport territories like the Grand Duchy of Luxembourg, where logistics land commands steep square-meter rental costs, eliminating dead aisle space yields an instant 60% to 75% volumetric storage gain compared to conventional single-selective setups.
Operating a dynamic roller channel containing up to twenty consecutive pallet loads weighing between 800kg and 1,500kg each requires severe engineering tolerances. Our factory-engineered systems incorporate three proprietary electro-mechanical safeguards:
Internally geared planetary brake rollers mounted intermittently along the roller bed engage centrifugally as pallet velocity nears 0.3 m/s. The internal friction pads generate counter-torque proportional to kinetic speed, holding pallets at an ultra-stable, uniform cruising pace regardless of total unit weight.
To eliminate excessive line pressure at the discharge outfeed, a heavy-duty mechanical separator automatically disconnects the leading pallet from the queue behind it. The second pallet is locked until the fork truck clears the lead unit, ensuring zero back-pressure impact on extraction forklifts.
Fabricated from heavy 6mm folded steel with integrated shock-absorbing elastomeric dampeners, the end stop safely absorbs residual inertia. It aligns the pallet perfectly for fork tine insertion while shielding the roller assembly from accidental mast collision during rapid high-reach picking.
How gravity flow systems empower high-velocity logistics centers across Bettembourg-Dudelange, Contern, Findel, and the South-West Industrial Basin.
Luxembourg occupies an irreplaceable geopolitical position at the structural center of the "Golden Triangle" (spanning Paris, Frankfurt, and Amsterdam). Bolstered by state-of-the-art multimodal infrastructure—such as the Eurohub South multimodal terminal in Bettembourg-Dudelange, the Findel Airport cargo handling hub, and logistics parks in Contern, Bascharage, and Roost—the country serves as an authoritative gateway for high-value trans-European distribution.
However, Luxembourg presents unique economic operational realities: industrial land values are among the highest in Western Europe, greenfield development permits are rigorously constrained, and industrial labor wage indices demand peak productivity per man-hour. Gravity pallet racking addresses these exact challenges across Luxembourg's primary industrial sectors:
The rail-road Eurohub South platform requires ultra-rapid container un-stuffing and rail-shuttle staging. Gravity pallet channels function as high-capacity dynamic buffer lanes between intermodal rail deliveries and outbound cross-border road trucking across the Benelux, Germany, and France, slashing dwell time and eliminating yard staging jams.
Luxembourg Airport is recognized globally for IATA CEIV Pharma air freight. In temperature-controlled distribution warehouses (+2°C to +8°C and -20°C deep freeze), our pallet flow racks guarantee strict FIFO adherence. Expiring active pharmaceutical ingredients (APIs) and temperature-sensitive biologicals are discharged cleanly in exact production sequence without risk of human inventory bypass.
Supporting tier-1 automotive suppliers and tire manufacturing giants located in central and western Luxembourg. Gravity storage lanes act as direct Just-In-Time (JIT) and Just-In-Sequence (JIS) line-feeding buffers, delivering rubber compounds, structural components, and assemblies directly toward robotic manufacturing cells without tow-train congestion.
Central hypermarket and grocery logistics facilities serving the Greater Region depend on gravity flow for fast-moving items (dairy, fresh produce, dry provisions). The design supports continuous order consolidation at high speeds while preventing internal forklift crossings in crowded staging bays.
Analyzing environmental mandates, automation convergence, and labor standards shaping warehouse equipment selection over the next decade.
The Luxembourg intralogistics sector is experiencing a structural pivot fueled by three primary external factors: the national decarbonization roadmap toward net-zero carbon footprints, relentless automation acceleration driven by skilled labor shortages, and rigorous surveillance by national safety inspectorates.
Under Luxembourg's National Energy and Climate Plan (NECP), modern logistics builds (such as those holding BREEAM 'Excellent' or HQE certifications in Eurohub Sud) must lower operational kWh consumption. Powered conveyor systems and automated AS/RS cranes require substantial continuous electricity and sustained maintenance overhead. Gravity pallet flow delivers 100% mechanical horizontal conveyance driven purely by kinetic mass and gravitation. It constitutes a true zero-carbon internal transport system that operates flawlessly during power curtailments or microgrid failures.
Warehouses across the Benelux region are rapidly deploying automated guided forklifts and counterbalanced AMRs. Gravity flow systems provide the perfect mechanical interface for robotic intralogistics. By isolating loading operations at the rear infeed and discharging pallets at a completely static, predictable forward pick face with millimeter-precision stop tolerances, AMRs can interface reliably without navigating dynamic pedestrian picking corridors.
Luxembourg's Inspection du Travail et des Mines (ITM) enforces some of the European Union's strictest workplace safety oversight. Warehouse racking must strictly conform to EN 15512:2020 (Static steel racking structural design), EN 15620 (Tolerances, deformations and clearances), and EN 15635 (Application and maintenance of storage equipment). The elimination of bidirectional forklift traffic in central storage lanes via gravity flow significantly reduces workplace forklift-pedestrian proximity incidents, earning proactive approval from safety officers and liability insurers.
Evaluating gravity pallet flow against alternative high-density warehouse systems across critical capital, spatial, and mechanical metrics.
| Storage System Type | Space Density % | Rotation Logic | Energy Dependence | MHE Travel Distance | Throughput Speed | Pallet Selectivity |
|---|---|---|---|---|---|---|
| Gravity Pallet Flow (Live Storage) | 85% – 90% | Strict FIFO (100%) | Zero (Passive Gravity) | Low (Separated Aisles) | Very High (Continuous) | Lane-Based (1 SKU/Lane) |
| Automated Radio Shuttle Racking | 85% – 92% | FIFO or LIFO | Medium (Li-Ion Battery) | Low to Moderate | High (Automated Cart) | Channel-Based |
| Drive-In / Drive-Through Racking | 70% – 80% | Strict LIFO (Drive-In) | Zero (Passive) | High (Truck Enters Bay) | Slow (High Risk Maneuver) | Poor (Last Pallet First) |
| Standard Selective Pallet Racking | 40% – 50% | Any (Unrestricted) | Zero (Passive) | Very High (All Aisles) | Moderate (Travel Intensive) | 100% Direct Immediate |
| Double Deep Pallet Racking | 60% – 65% | LIFO per pair | Zero (Passive) | High (Pantograph Mast) | Moderate | 50% Immediate |
*Data synthesized from verified European warehouse engineering benchmarks under standard EN 15512 / FEM 10.2.02 conditions using standard 1200 x 800 mm Euro-pallets.
Leveraging vertically integrated manufacturing, certified structural design, and end-to-end European logistics coordination.
Acquiring heavy industrial storage infrastructure requires an engineering partner with accountable design, supply, and compliance capabilities. We don't simply supply catalog components; our structural engineers collaborate directly with your facility managers, local architects, and project directors from the initial floor-slab survey to the handover load-signage inspection.
Every lane gradient, beam cross-section, and column pitch is custom-modeled in 3D CAD/BIM to match your facility's clear ceiling heights, roof trusses, sprinkler pipes, and exact forklift masts.
Fabricated using high-tensile certified structural steel profiles, continuous multi-point roll forming, and automated robotic welding for exceptional cyclic load resilience and deflection resistance.
Calculations adhere strictly to EN 15512 (Racking Design), EN 15620 (Clearances), and EN 15635 (Inspection Standards), facilitating immediate compliance with Luxembourg ITM workplace validation.
Consolidated direct shipping to Luxembourg distribution hubs with integrated project staging, clear installation marks, and on-site certified assembly supervision available across the region.
Provide your building dimensions, pallet specs, and turnover rates. Our technical engineering division will generate a detailed CAD configuration and load calculation sheet within 48 hours.
Direct answers addressing building codes, Euro-pallet tolerances, fire protection, and floor slab anchoring in the Greater Region.
The Inspection du Travail et des Mines (ITM) requires verification that dynamic steel storage systems comply with EN 15512 and European machinery directives where dynamic mechanisms apply. Our handover packages include stamped structural calculation dossiers, maximum load signage (Plaques de charge) displayed visibly on all end frames, and defined floor slab anchor validation per EN 1992-4.
Gravity pallet flow relies on direct friction contact with the bottom boards of the pallet. We design systems optimized for standard EPAL-1 (1200x800mm) and EPAL-2 (1200x1000mm) wooden pallets. Bottom boards must have minimal deflection (< 1/200th of span) and no broken runner planks. For plastic pallets or non-standard skids, we integrate three-track roller sets or full-width steel rollers with tailored brake drum spacing.
Because gravity flow racking forms high-density volumetric storage cubes without wide transverse flue spaces, standard ceiling-only ESFR sprinklers are often insufficient for heights exceeding 9 meters under CEA 4001 or NFPA 13 rules. We engineer integrated internal flue channels within the structural frame uprights to house in-rack sprinkler pipework, pressure relief heads, and protective steel deflection plates.
Heavy-duty gravity racking systems concentrate significant point loads through their baseplates. Concrete slabs must exhibit a minimum compression strength of C20/25 or C25/30, with a slab depth usually not less than 180mm to 200mm. Furthermore, floor flatness must comply with DIN 18202 Table 3 Line 4 or EN 15620 Class 300 to ensure that roller inclinations maintain true geometric alignments across deep 20-meter lanes.
Yes. We supply specialized cold-store configurations operating reliably down to -30°C. For these environments, roller bearings are packed with synthetic low-temperature lubricants, speed controller mechanisms are sealed against condensation freeze-ups, and the steel uprights/beams receive hot-dip galvanized or specialized zinc-rich primers to resist thermal shock and oxidation.
Under European Standard EN 15635, warehouse operators must conduct weekly visual checks by an appointed internal Person Responsible for Storage Equipment Safety (PRSES). In addition, an annual formal technical inspection must be executed by an independent certified racking inspector. Our maintenance programs provide inspection checklists, roller wear gauge indicators, and rapid component replacements for damaged uprights.
To ensure accurate structural load calculations and optimize roller lane configurations, our engineering department reviews the following key operational parameters:
Detailed exterior dimensions (L x W x H), total gross weight range (min/max), bottom board runner orientation, and pallet construction material (solid wood, pressed composite, or HDPE plastic).
Exact height to the lowest overhead obstruction, including HVAC ducting, structural steel trusses, suspended lighting bars, and in-building fire sprinkler clearance requirements.
Material Handling Equipment (MHE) models, mast lifting stages (triplex/quad), maximum fork reach height, chassis residual capacity at elevation, and required operational aisle transfer widths.
Peak inbound replenishment rates per hour, outbound pallet pick frequency, total active SKU variations, and designated lane storage depth targets (e.g., 4-deep, 8-deep, or 15-deep lanes).
Concrete slab thickness, reinforcement layout, joint locations, compressive strength classification (e.g., C25/30), and allowable maximum point load per square meter.
Temperature range (ambient warehouse, chilled +4°C, or sub-zero -25°C), relative humidity levels, and whether any hazardous or explosive (ATEX) zones apply across the picking face.
Connect with our technical storage engineers to discuss structural layouts, EN 15512 calculation certificates, project lead times, and factory-direct pricing for Luxembourg and the Greater Region.
