What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

Warehouse Racking & Shelving Supplier in UAE | GENEX

Product Display

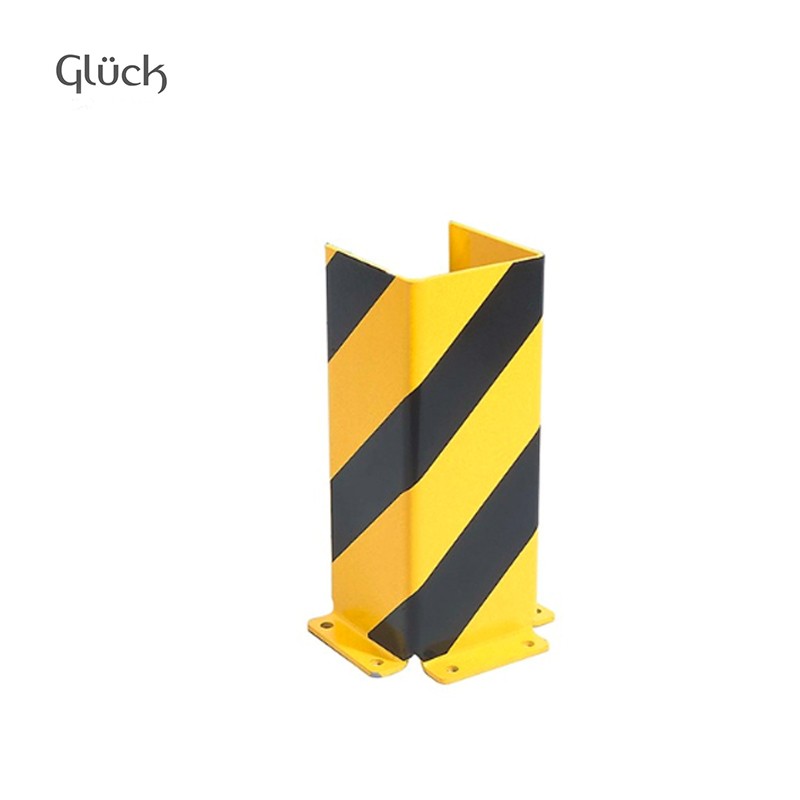

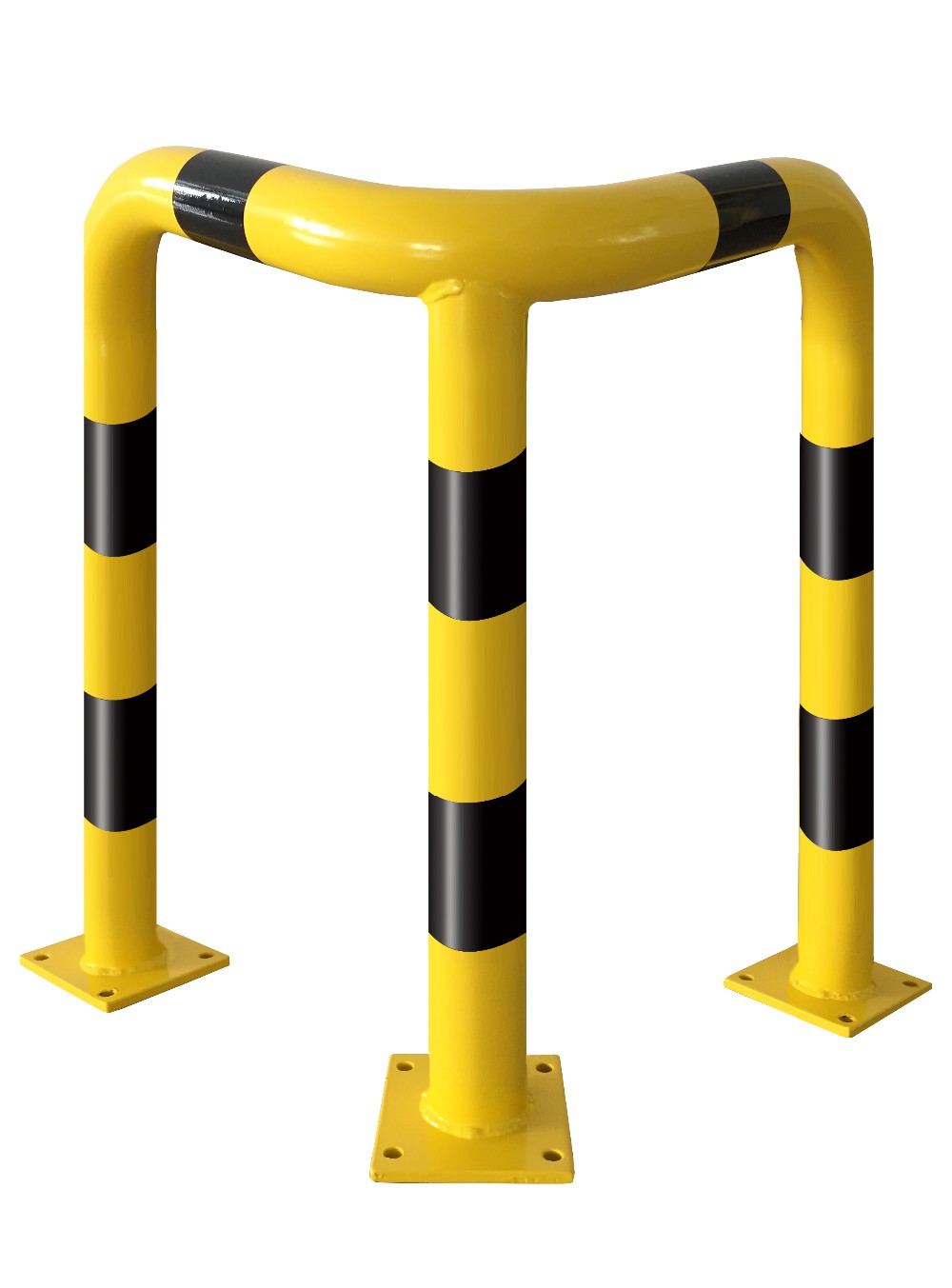

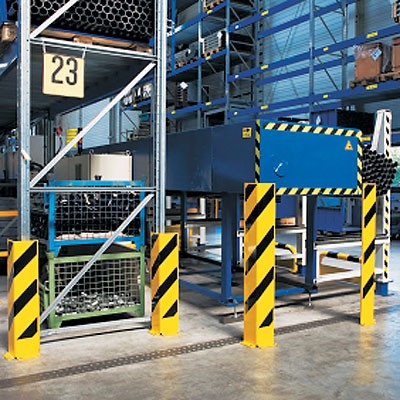

PALLET RACKING PROTECTORS - U Style CORNER PROTECTOR NEW

Product Code	518795-1J
Product Name	PALLET RACKING PROTECTORS - U style
Dimensions	H800 x W160 x D6mm	Form	Form: Winkel (U-Profil)
Material	Steel	MOQ	50
Color	Powder coated yellow with black bands
Specifications	Heights: 400, 800, 1200mm Width: 160mm Thickness: 5 & 6mm Finish: Powder coated
Fixings	Raw Plug Bolt (sold in singles) - 8 Required per Guard Throughbolt Anchor (sold in singles) - 8 Required per Guard

1

OEM/ODM Services: Professional dedicated engineers available to design and develop products tailored strictly to buyer requirements.

2

Specialized Metal Fabrication: Modern factory equipped with cutting machines, punch machines ranging from 10T to 60T, plate cutting machines, pipe bending machines, roll bending machines, drilling machines, milling machines, lathes, grinding machines, as well as CO2 and argon-arc welding stations.

3

Automated Surface Treatment: 450m long fully automated metal surface processing plant featuring automated oil wash, rust removal, powder coating, curving, water wash, drying, and comprehensive finishing procedures.

Hot Selling Products

Why Choose Us

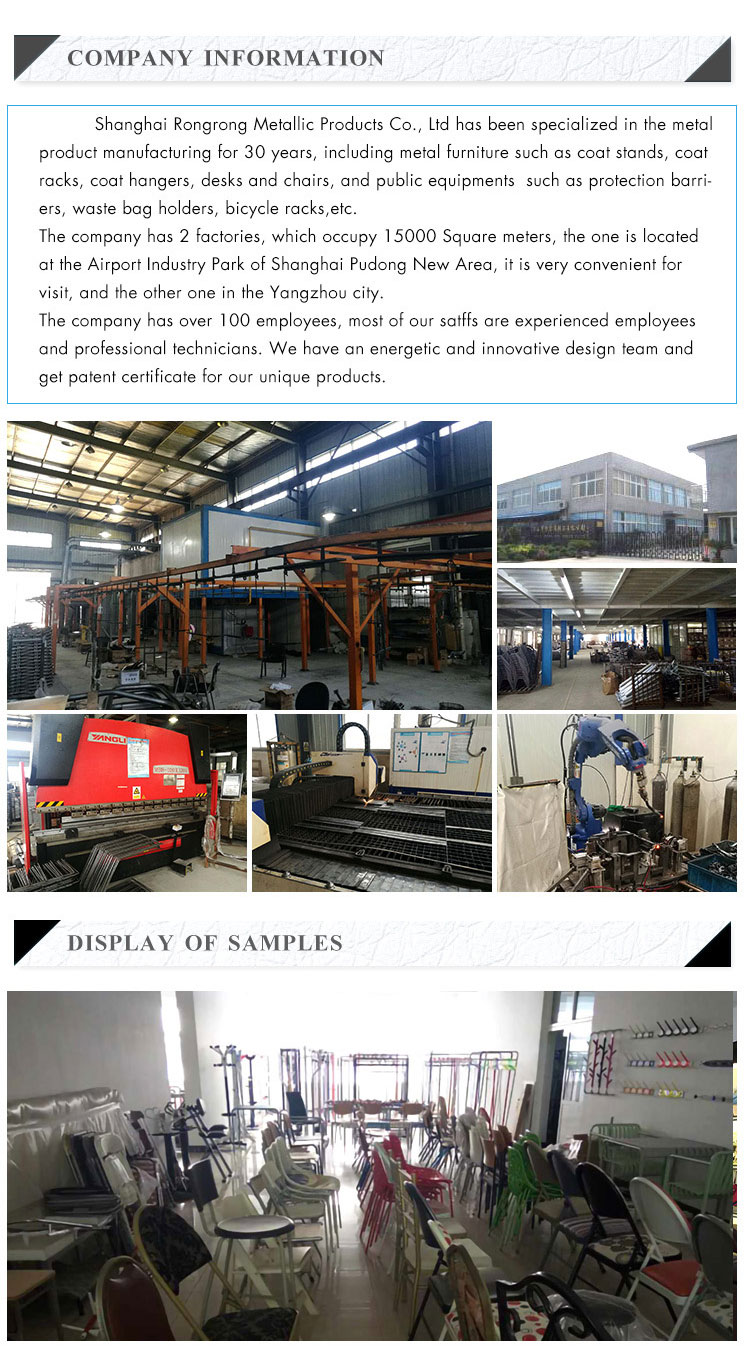

Company Information

Certifications

Packaging

FAQ

What are the available dimensions and specifications for the U-style corner protector?

The standard model measures H800 x W160 x D6mm. Available heights are 400mm, 800mm, and 1200mm, with a uniform width of 160mm and steel thickness options of 5mm and 6mm.

What material and surface treatment are used for high durability?

The protectors are manufactured from high-strength steel and finished with a durable powder coating in safety yellow with black bands for maximum visibility and impact resistance.

What is the Minimum Order Quantity (MOQ)?

The minimum order quantity (MOQ) for the U-style pallet racking protector is 50 pieces.

What type and quantity of fixings are needed for installation?

Each protector guard requires 8 fixings for secure anchoring. Both Raw Plug Bolts and Throughbolt Anchors (sold individually) are compatible.

Do you support custom engineering and OEM/ODM services?

Yes, comprehensive OEM and ODM services are supported. We have dedicated engineers capable of designing custom profiles, sizes, and finishes according to your requirements.

What manufacturing and surface treatment equipment does your factory have?

Our factory is equipped with 10T–60T punching machines, cutting, pipe/roll bending, drilling, milling, lathe, and welding equipment (CO2 and argon-arc), along with a 450-meter fully automated surface treatment plant handling degreasing, rust removal, powder coating, and baking.

PALLET RACKING PROTECTORS -U Style CORNER PROTECTOR NEW

Product Description

Related Products

PALLET RACKING PROTECTORS -U Style CORNER PROTECTOR NEW

Product Description

Related Products

Automatic Radio Shuttle Rack System Heavy Duty Industrial Warehouse Storage Shelf Racking CE Certified

Warehouse Heavy Duty Steel Loft Platform Shelf Storage Attic Rack Pallet Racking Supported Mezzanine Floor Racks System

Heavy Duty Metal Shelving Unit Cold-Rolled Steel Racking Plate Mold Storage Goods Shelf Rack System Storage Boltless Rack

Stairs and Landing Platforms, Steel Mezzanine Floors, Rack Supported Buildings

Pallet Racking Support bar Cross bar for Warehouse Pallet Rack with Good Price

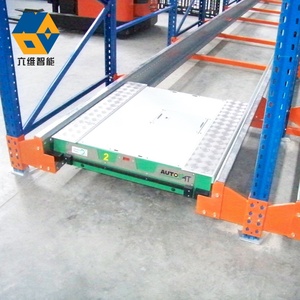

NOVA Manufacturer Warehouse Heavy Duty Steel Radio Shuttle Rack Storage Shelving Powder Coating Shuttle Pallet Racking

Prefabricated Steel Warehouse Building Mezzanine Floor Multi Level Storage Industrial Steel Frame Structure System

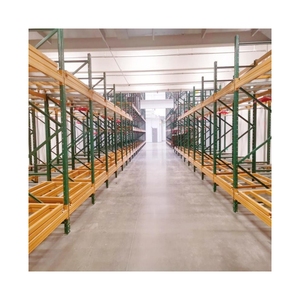

Custom Storage System Stacking Racks Shelves Warehouse Rack Push Back Pallet Racking With Guide Rail
