It's supported by racks,and a mezzanine is built on the upper layer,them the lower racks can store goods in order.The upper mezzanine has better load capacity,and the ground load capacity is relatively average.

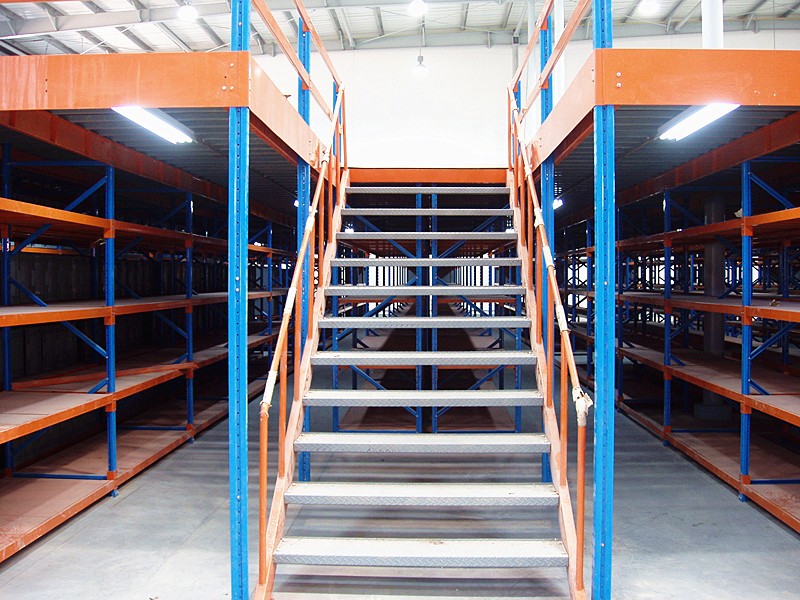

It's widely used in these situations:warehouse is high;goo`ds are small;accessing goods by manpower,storage edmand is large.Besides,it can be applied to renovate old warehouse,to improve the warehouse space utilization.Single layer or multi-layer mezzanine can be designed according to the acrtual area and specifica requirements to make full use of space and save warehosue area.Normally it's 2-layer or 3-layer,and stairs,handrails and cargo elevators are equipped.
| Size | Height:1000-8000mm,Width:10000-20000mm,Length:20000-30000mm; |
| Material | High-quality Q235 Colded-Coll Steel |
| Surface Tradetment | Powder Coating |
| Color | upright is bule,beam is orange,steel board is gray white,etc. |
| Upright | 60*50,90*65,120*65,100*70,130*90mm |
| Beam | 60*40,80*40,80*45,100*45,120*45,140*45,160*45,180*45,200*45.220*45,240*45,etc. |

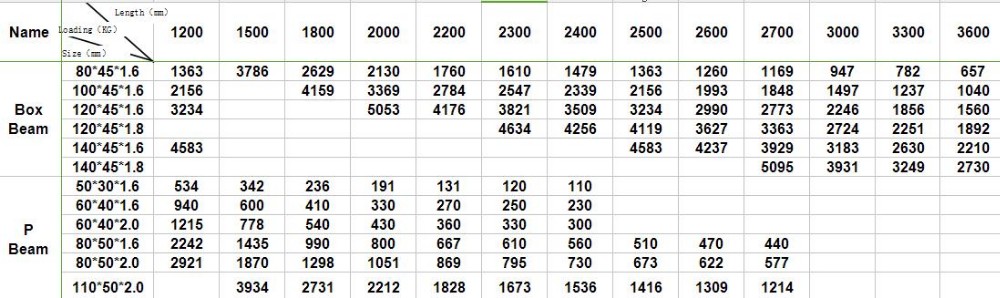

Beam Loading Capacity&Size

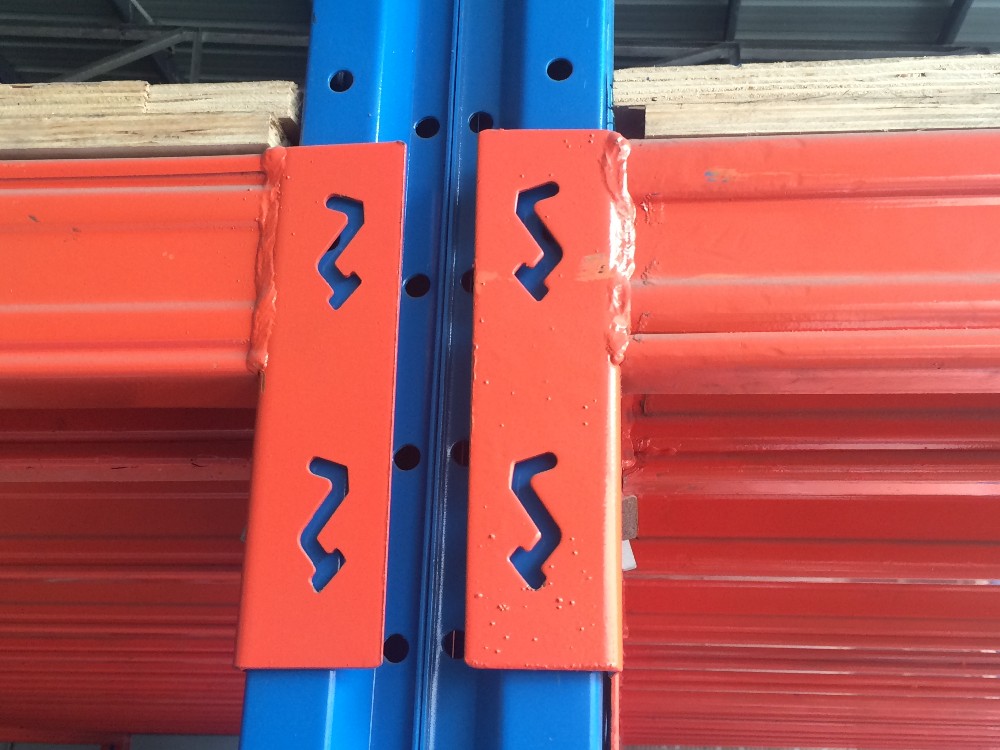

Main Beam&Upright Installed

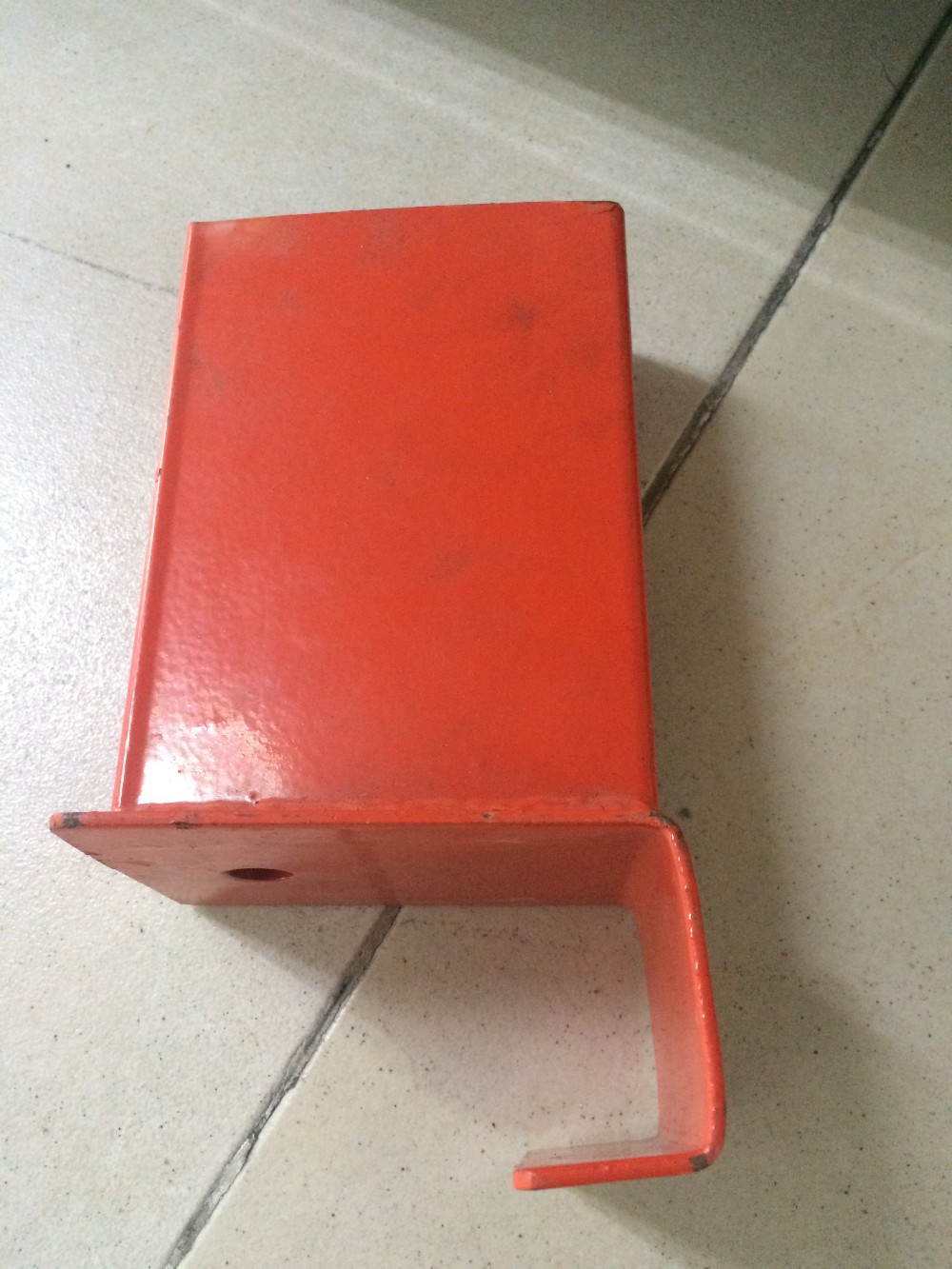

Support Bar

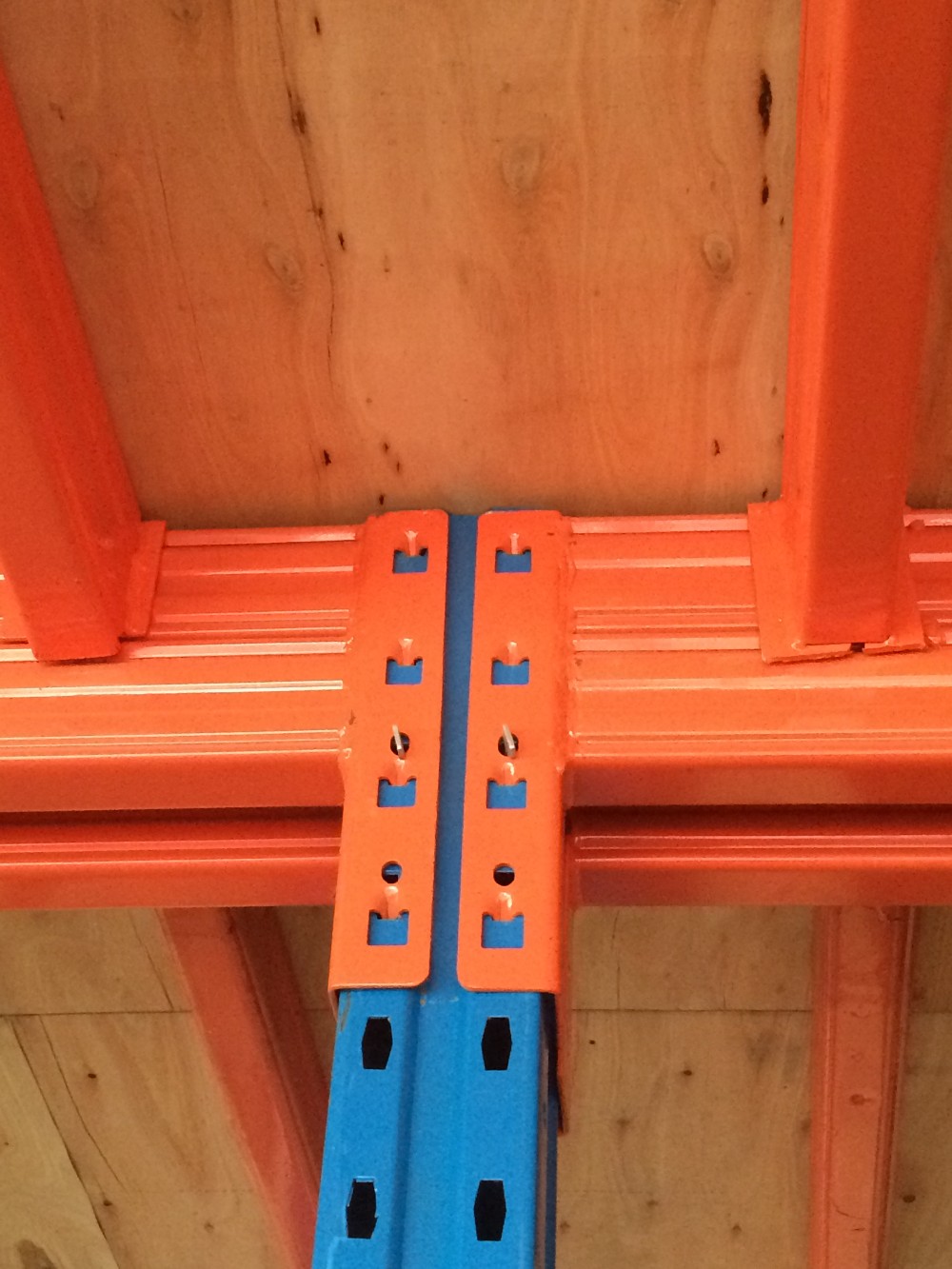

FrameãMain Beam and Support Bar Installed Picture

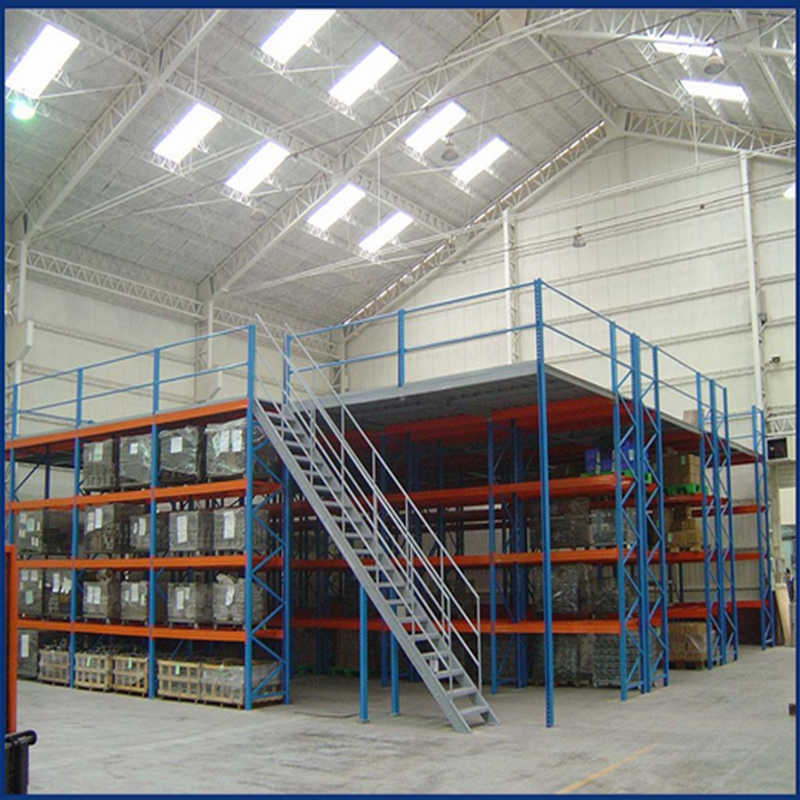

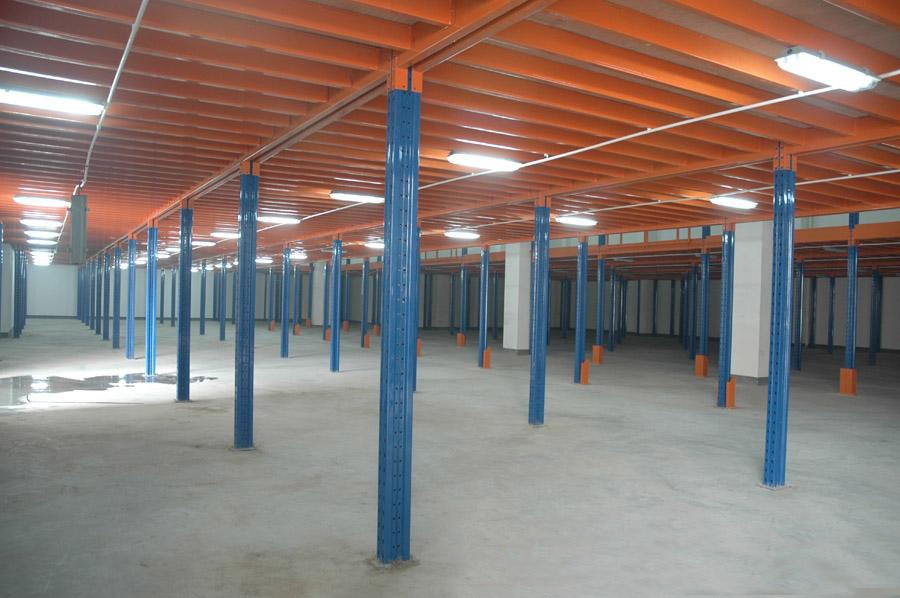

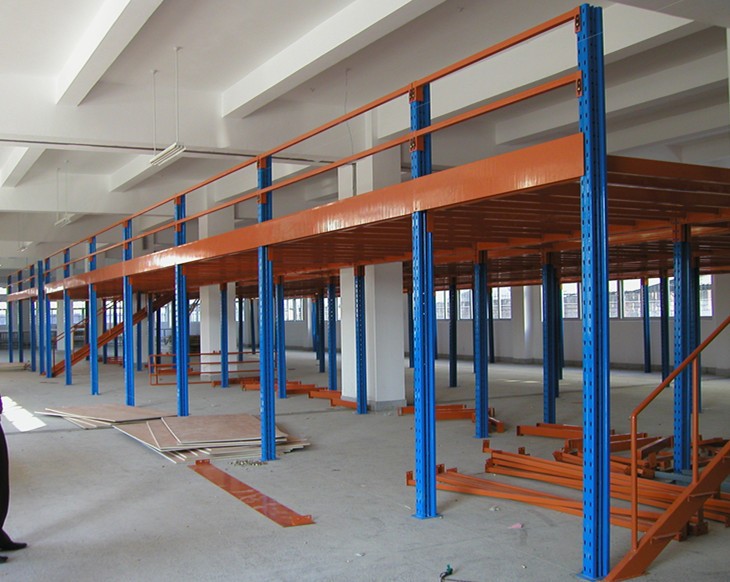

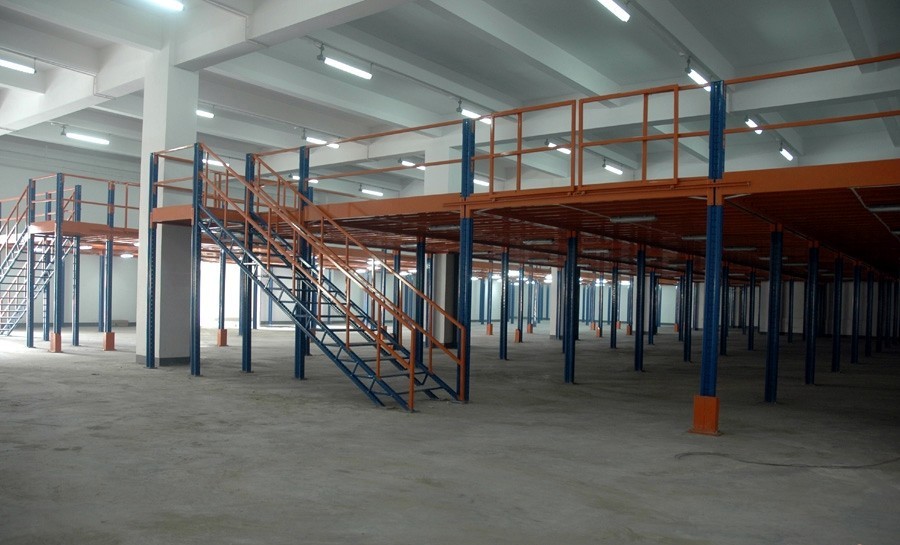

Mezzanine Floor/Flatfrom(Upright Support)

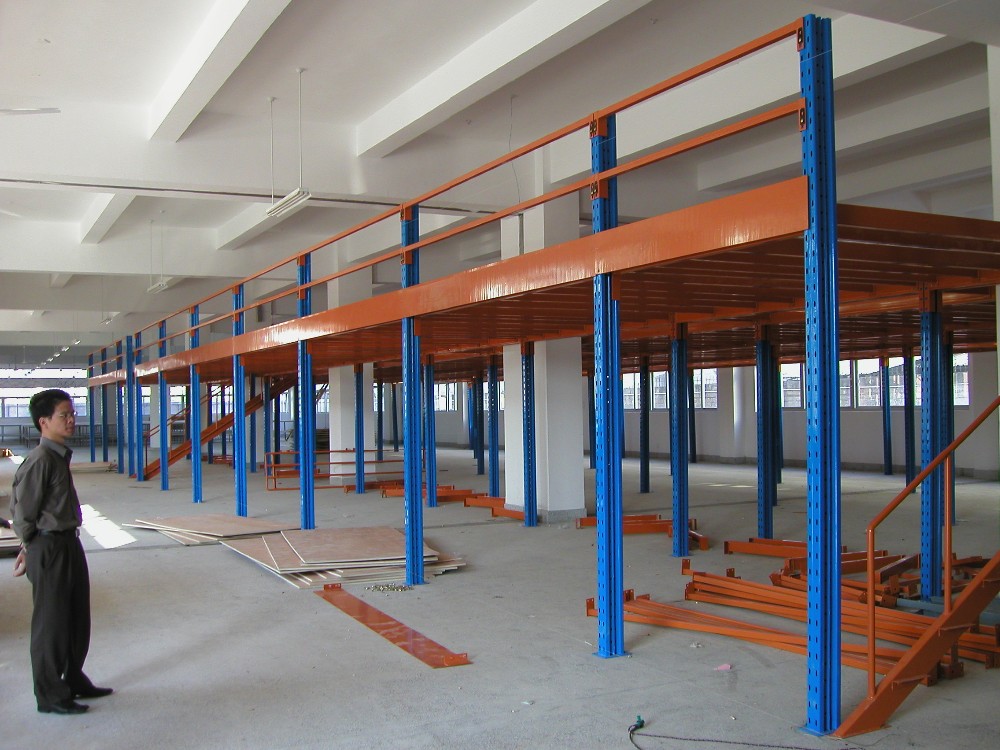

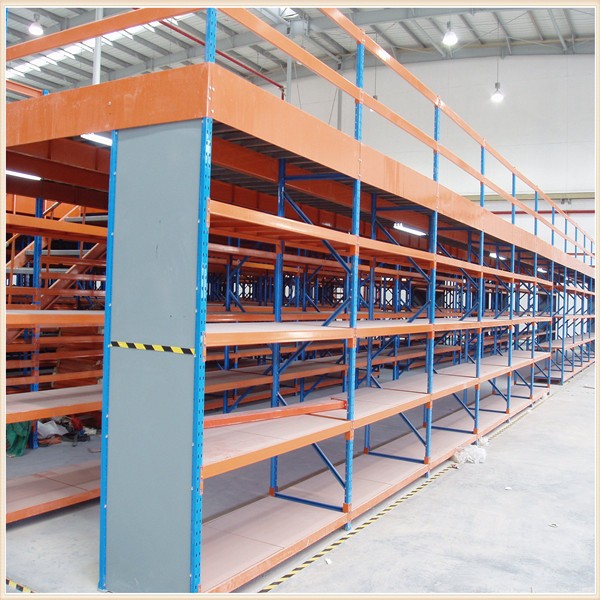

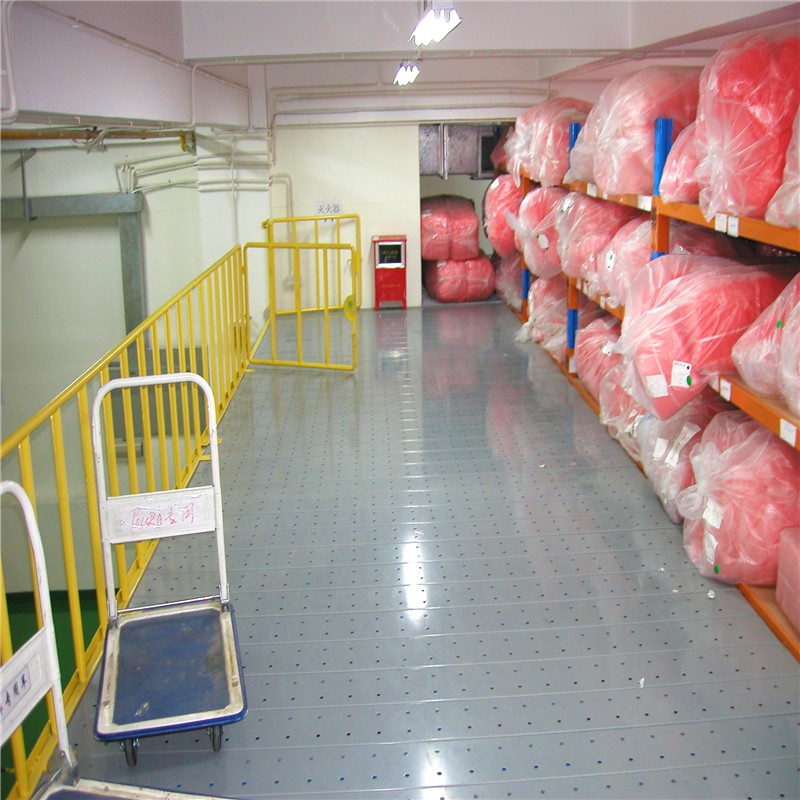

Mezzanine Rack

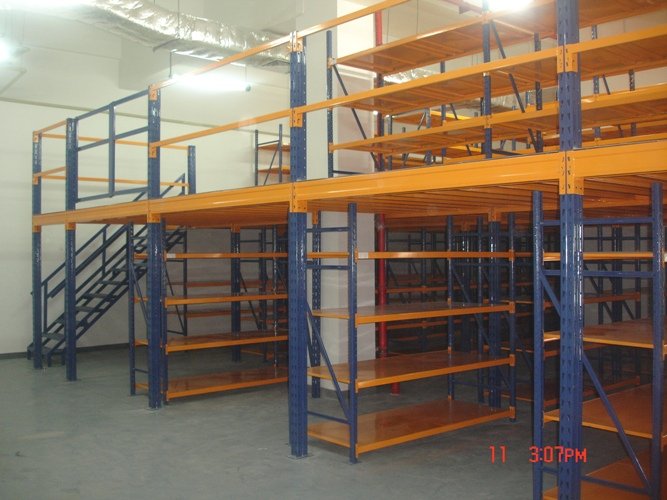

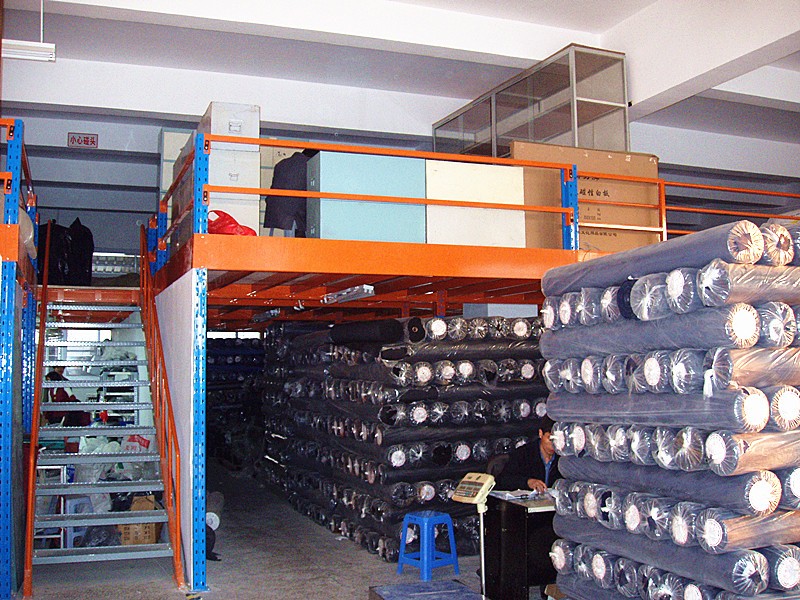

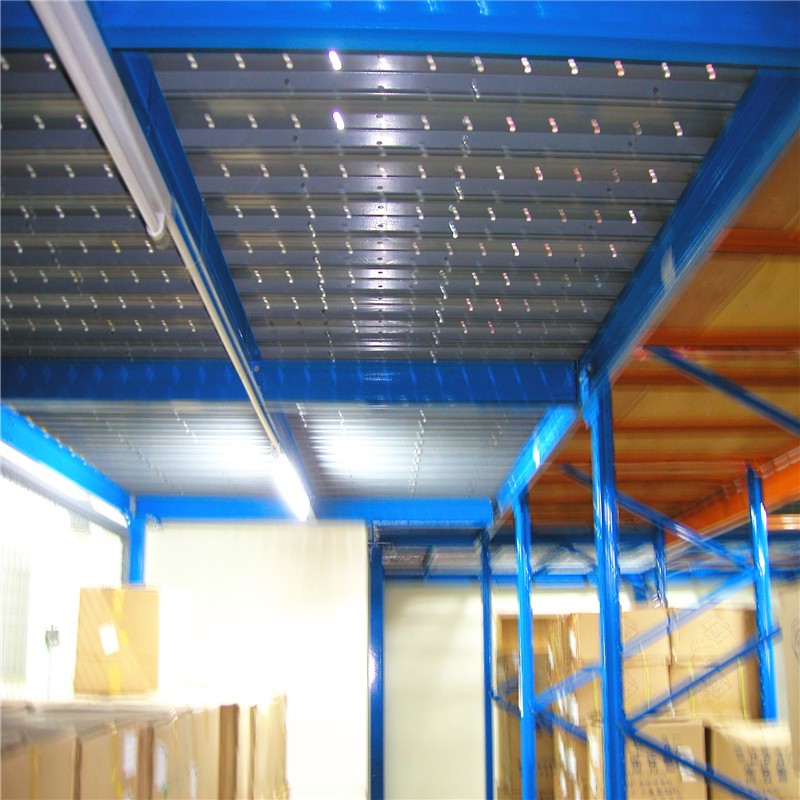

Rack Mezzanine Rack

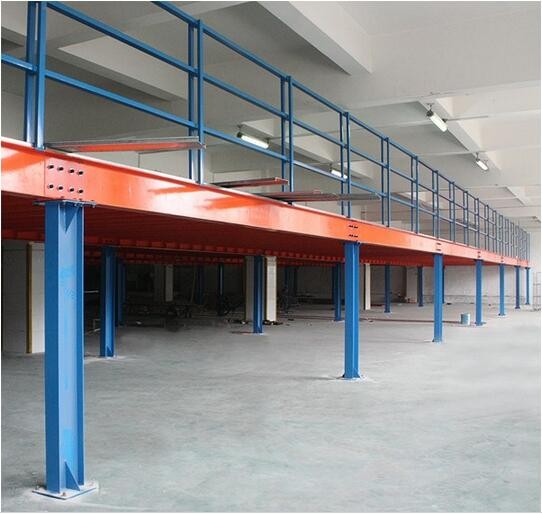

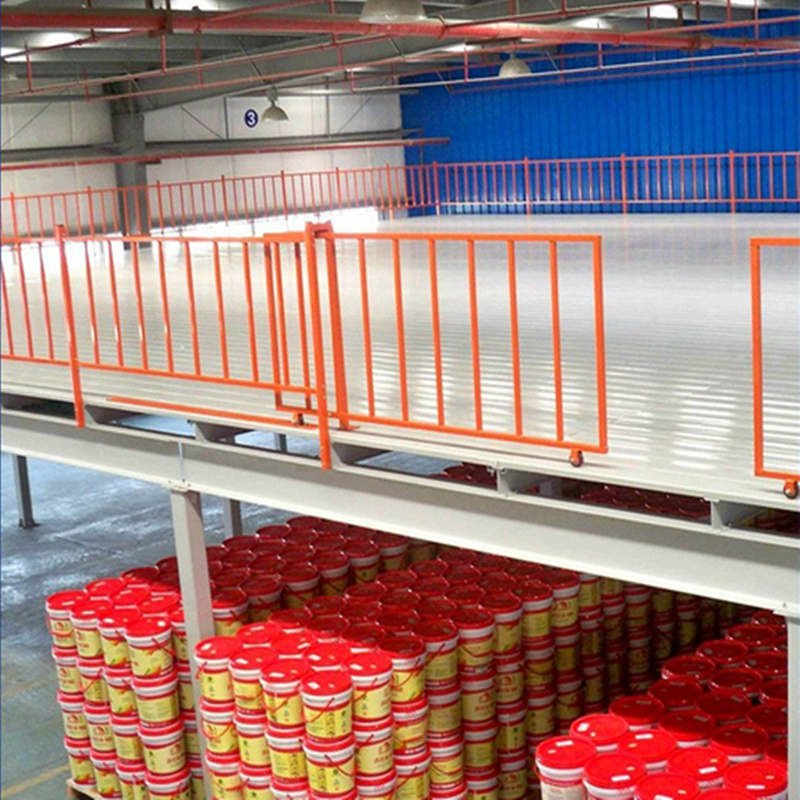

"I" Steel Mezzanine Floor
Professional Design Service Group

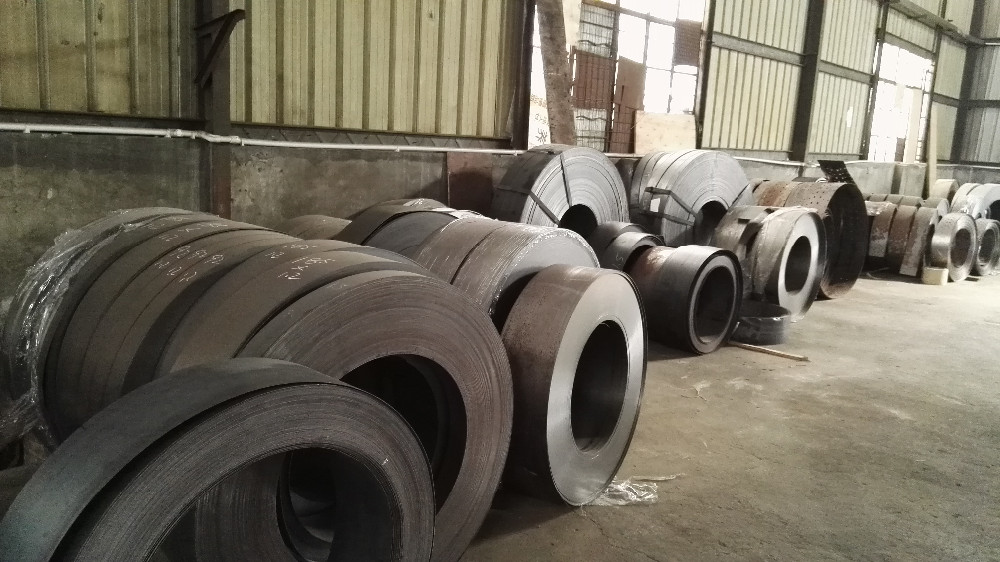

Storage Hold Area For Raw Materials

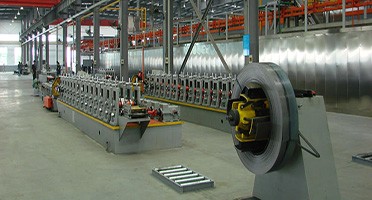

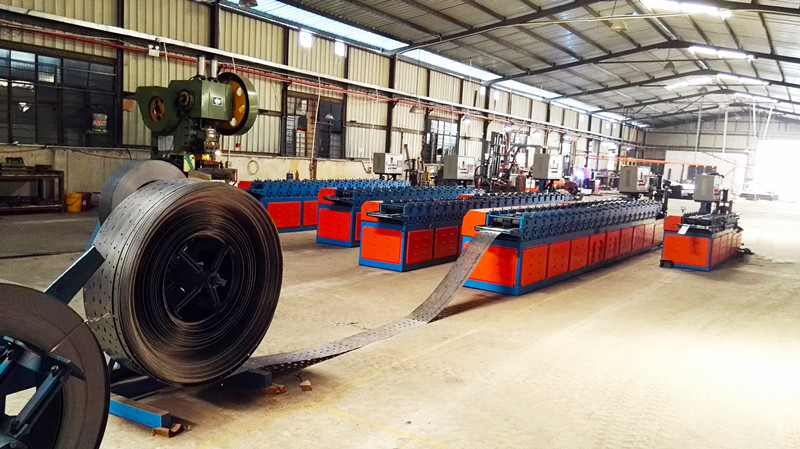

All-automatic Cold Rolling Line

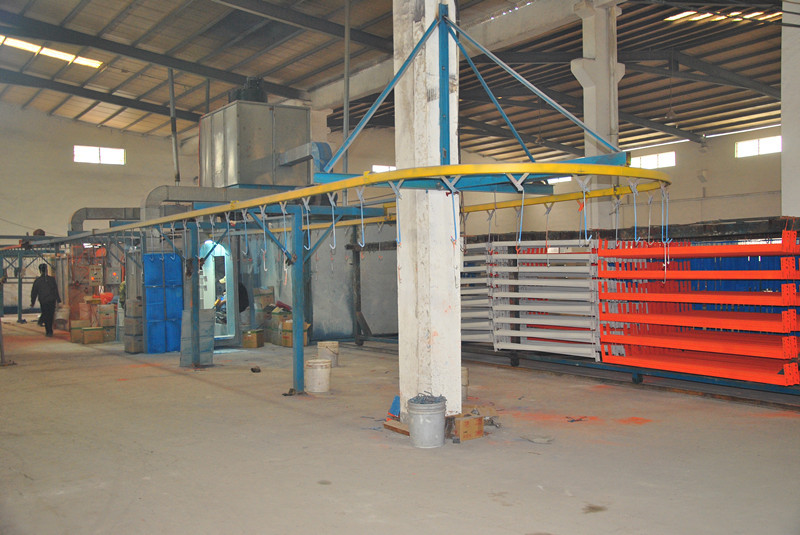

Spraying Coating Line

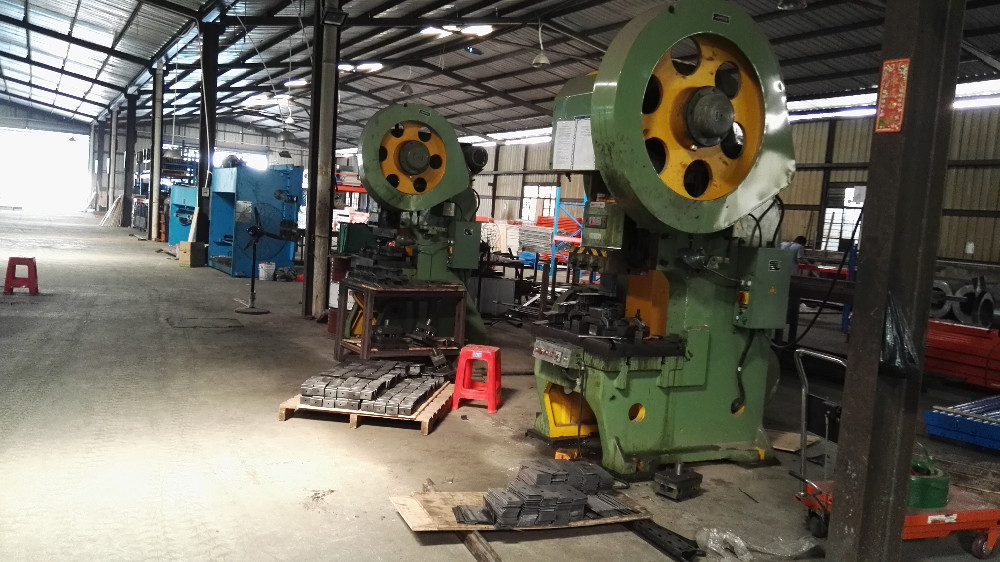

Stamping Area(Bracket)

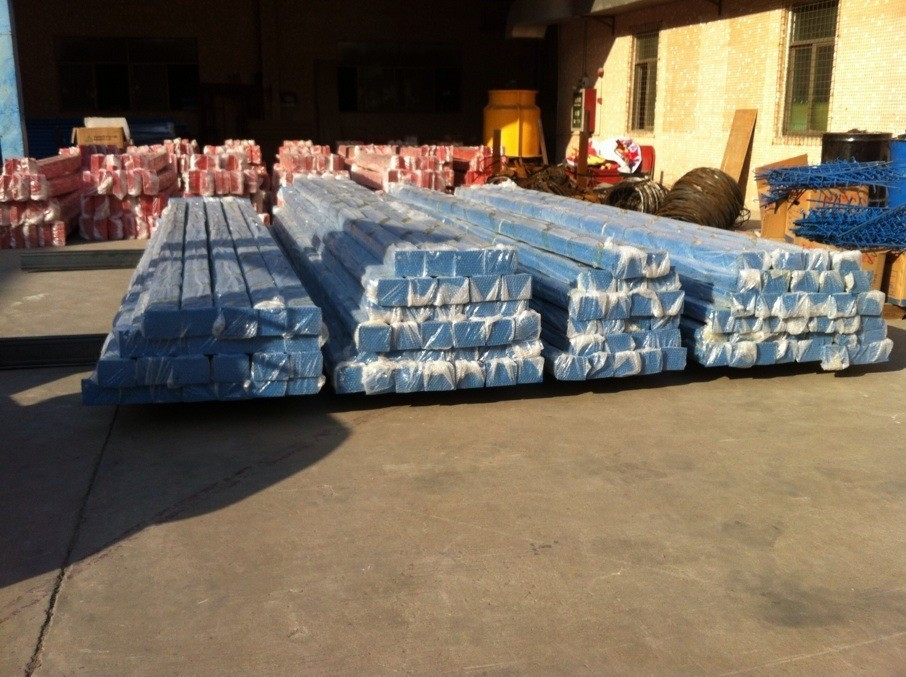

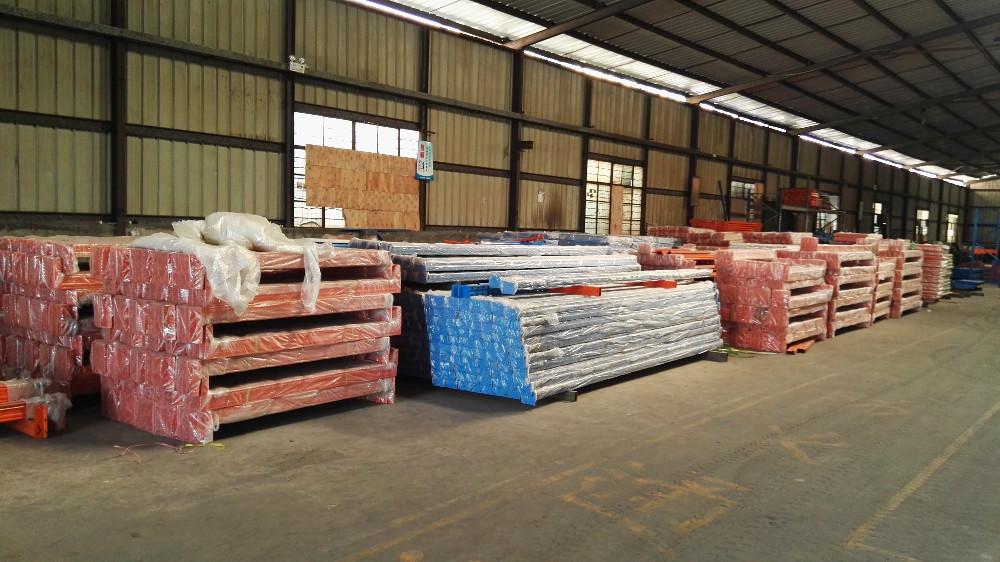

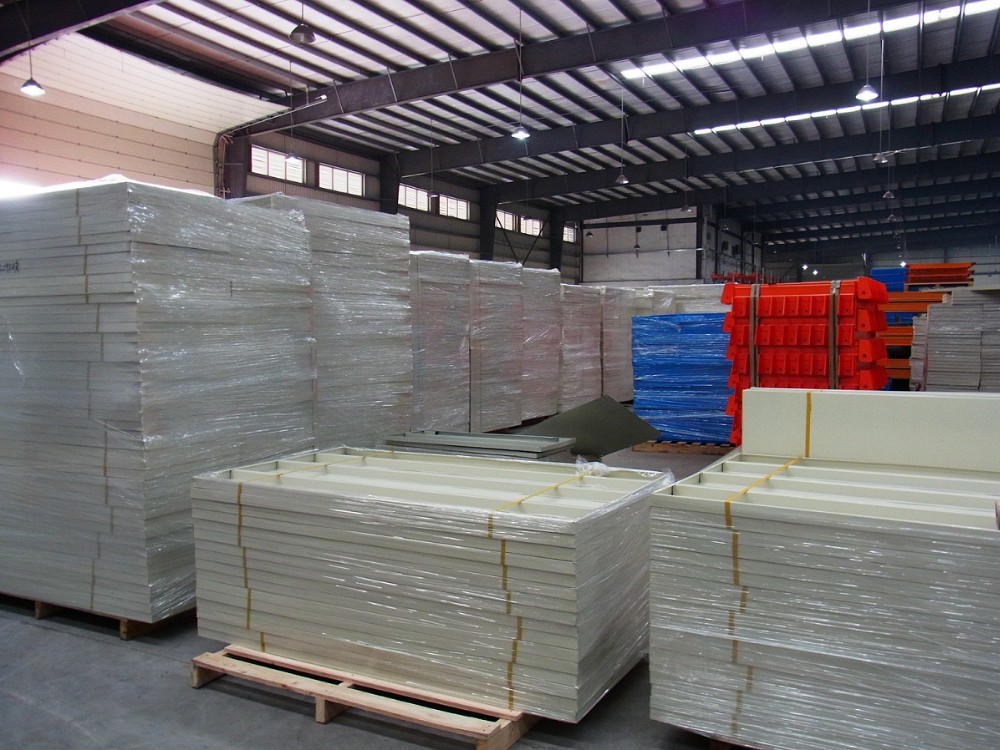

Goods Packaging Area(Upright&Beam)
Dongguan Xinmiao Storage Equipment Co.,Ltd. devotes itself to the design and manufacture of storage equipment.We are specialised in producing various pallet racking, longspan shelving, warehouse rack,mould rack,wire container,mobile filing cabinet,cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehouseing,products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price,as well as rapid delivery time and first-class back-up service.
