What warehouse racking systems does GENEX supply in the UAE?

GENEX supplies selective pallet racking, heavy duty racking, double deep pallet racking, drive-in racking, gravity (pallet flow) racking, cantilever racking, mezzanine racking and retail display racking, together with layout design, installation, inspection and maintenance services.

How do I choose between selective, double deep and drive-in racking?

Choose selective racking when you store many different SKUs and need direct access to every pallet. Double deep racking suits medium SKU counts with at least two pallets per SKU and requires double-deep reach trucks. Drive-in racking gives the highest static density for few SKUs held in large quantities, operating on a last-in, first-out basis.

Does GENEX provide warehouse layout design and rack installation?

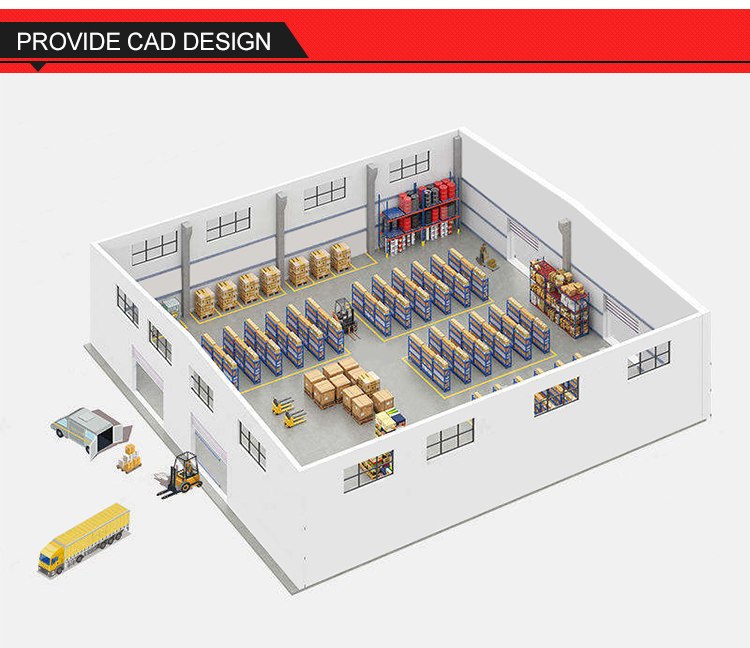

Yes. GENEX handles the full project cycle: site survey, load and aisle-width analysis, layout drawings, supply of load-rated components, installation by trained crews, load signage at handover, and ongoing inspection and maintenance.

What information is needed to design a pallet racking layout?

Provide pallet dimensions and maximum loaded weight, clear building height below sprinklers and lights, floor slab details, forklift model with maximum lift height and required aisle width, the number of SKUs, expected throughput and a floor plan or CAD drawing of the building.

How often should warehouse racking be inspected?

International guidance such as EN 15635 recommends a documented inspection by a technically competent person at least every 12 months, plus frequent in-house visual checks by trained staff. Damaged uprights or beams should be unloaded and repaired immediately.

Can international companies work with GENEX on UAE warehouse projects?

Yes. GENEX supports local and international companies setting up or expanding warehouses, factories, logistics centers and retail facilities in the UAE, coordinating design, supply and installation in English with a single point of contact.

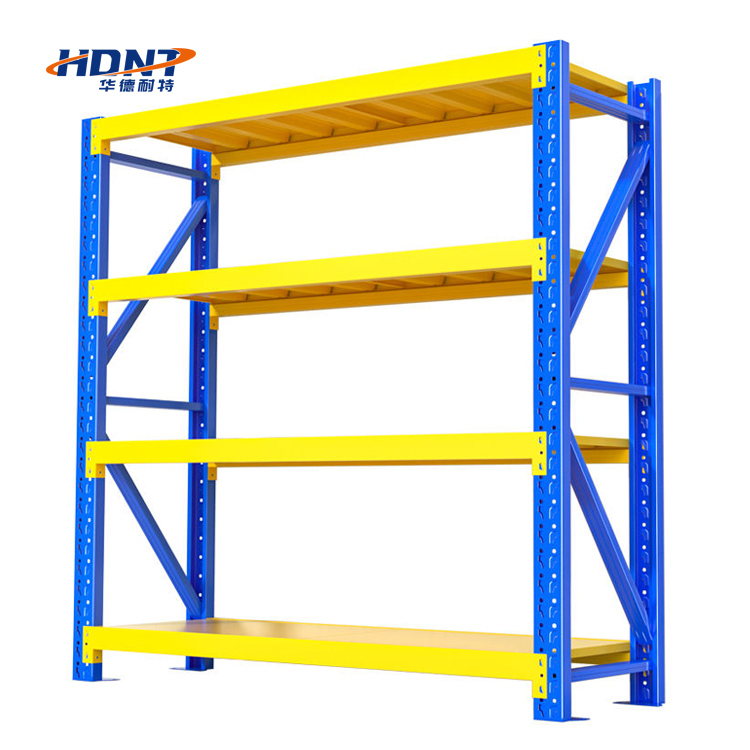

250KG Iron Adjustable Boltless Pallet Racking Long Span 5-Layer Light Duty Storage Shelving Units Garage Metal Stacking Steel

1 / 5

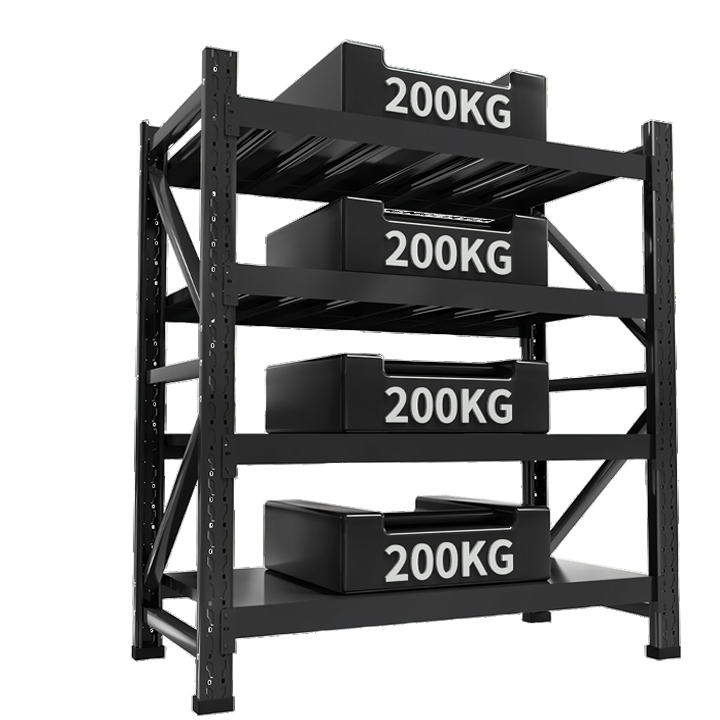

250KG Iron Adjustable Boltless Pallet Racking Long Span 5-Layer Light Duty Storage Shelving Units Garage Metal Stacking Steel

Send Inquiry

Product Description

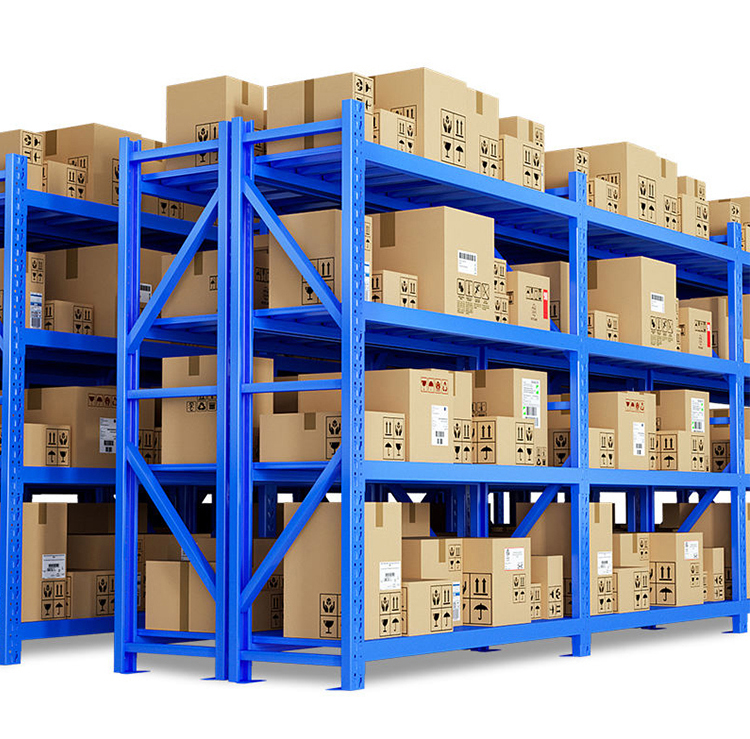

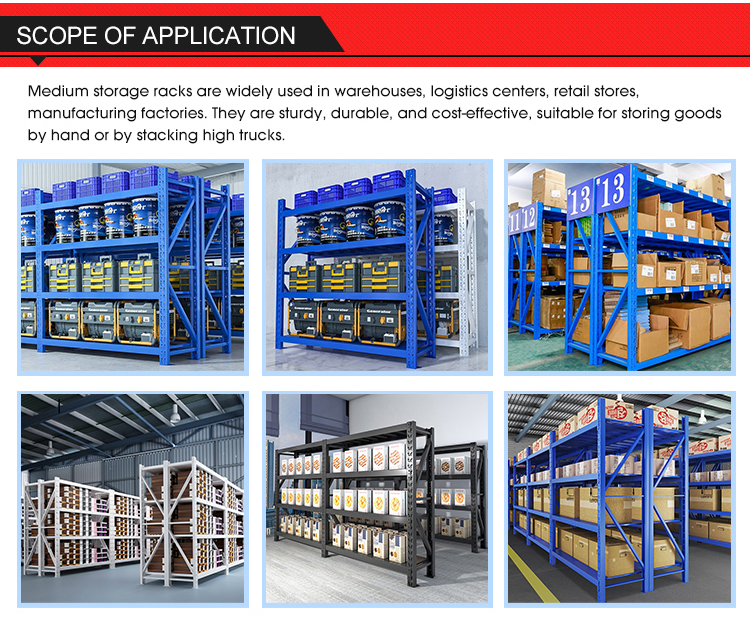

Medium storage racks, shelf type, beautiful appearance, easy installation and disassembly, 75mm pitch adjustment, sturdy and sturdy, with a large bearing capacity, capable of carrying 150kg-800kg/layer. All metal parts have undergone rust prevention treatment and the surface has been electrostatically sprayed. Suitable for storing goods in large, medium, and small warehouses by manpower or stacking trucks. The size can be customized.

Heavy Load Bearing

Sturdy construction capable of supporting 150kg to 800kg per layer.

75mm Pitch Adjustable

Flexible vertical adjustment allows customized spacing for diverse goods.

Anti-Rust Coating

Electrostatic powder spray and rust prevention treatment for high durability.

Quick Installation

User-friendly modular shelf design makes assembly and disassembly fast and simple.

Technical Specifications

Style	Easy installation and adjustable

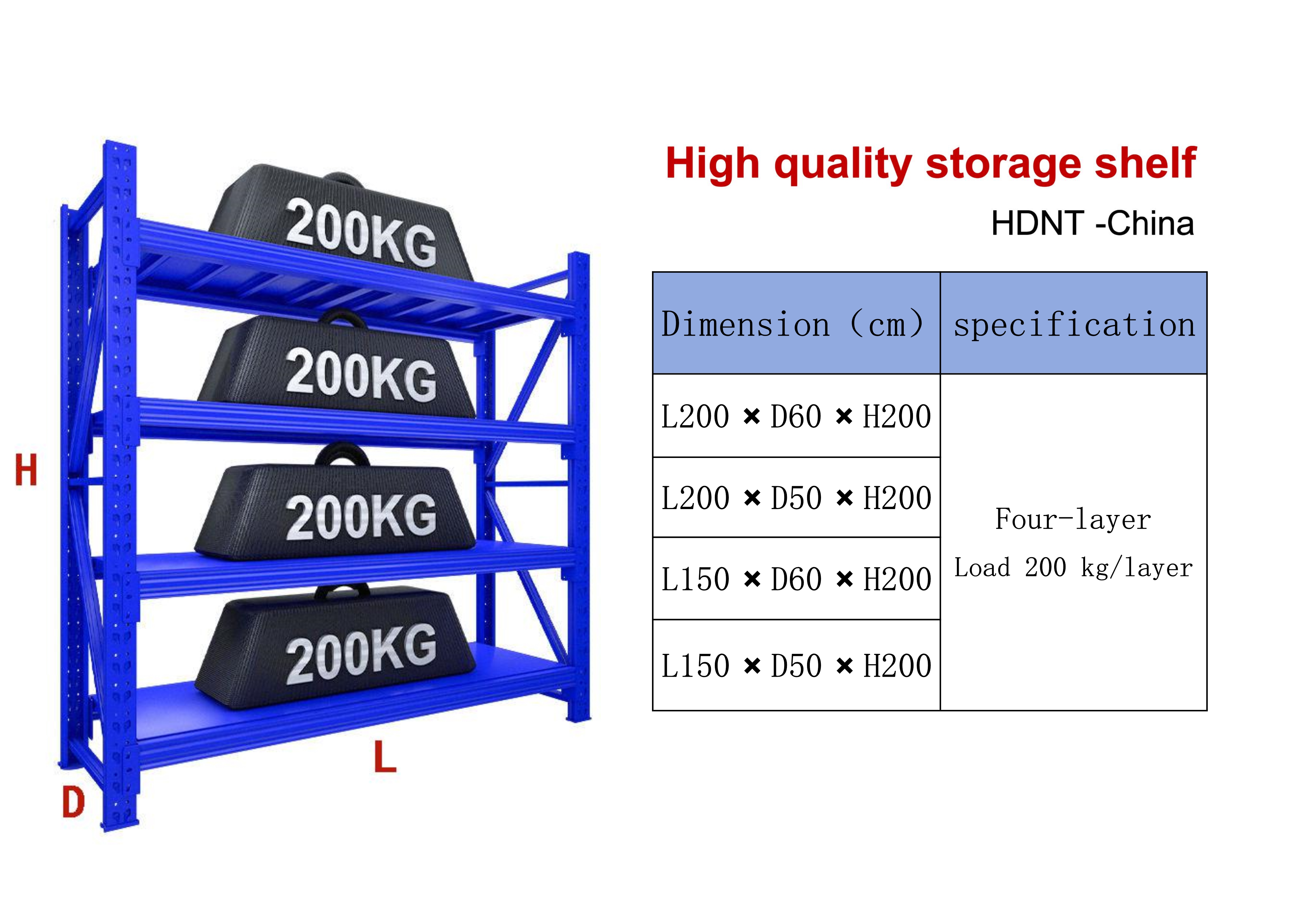

Regular Size / Unit	L2000W600H2000, 4~5 levels loading, bearing 150-800kg/level (Can also be customized on request)
Customized Sizes Accepted	Yes
Adjustable Pitch Size	75mm

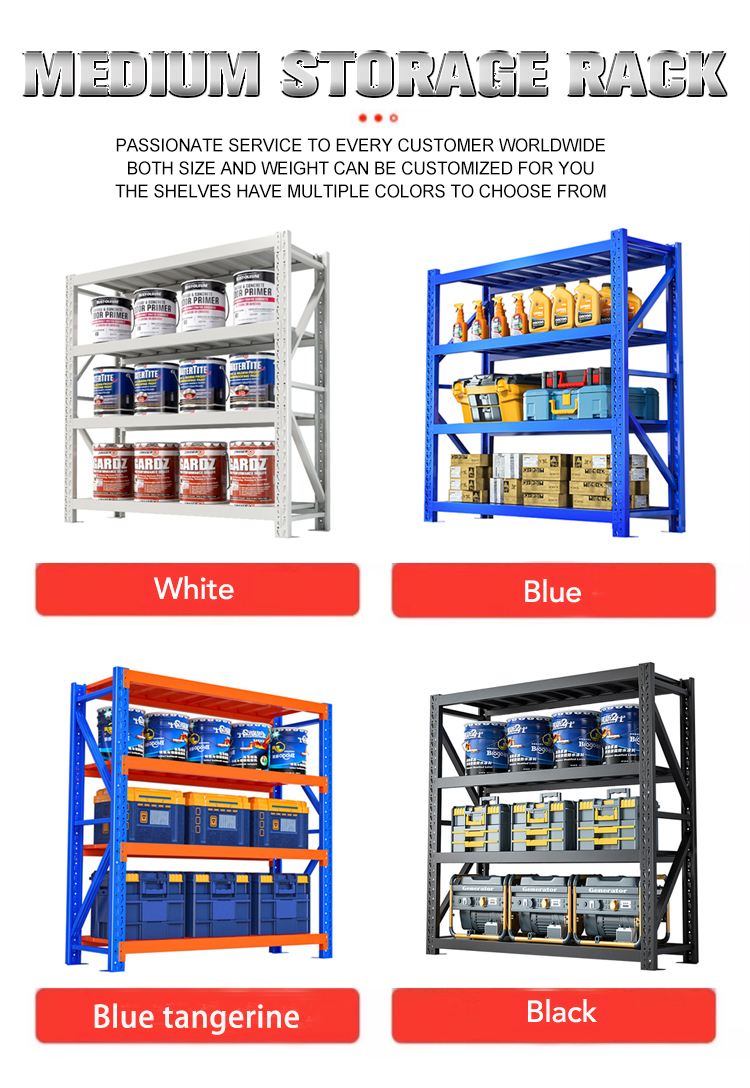

Standard Color	Blue, white, black, gray, orange (Other colors can also be customized)
Special Color Available	Yes
Minimum Order Quantity (MOQ)	5 units
Delivery Time	7 - 15 days for 2*40' containers

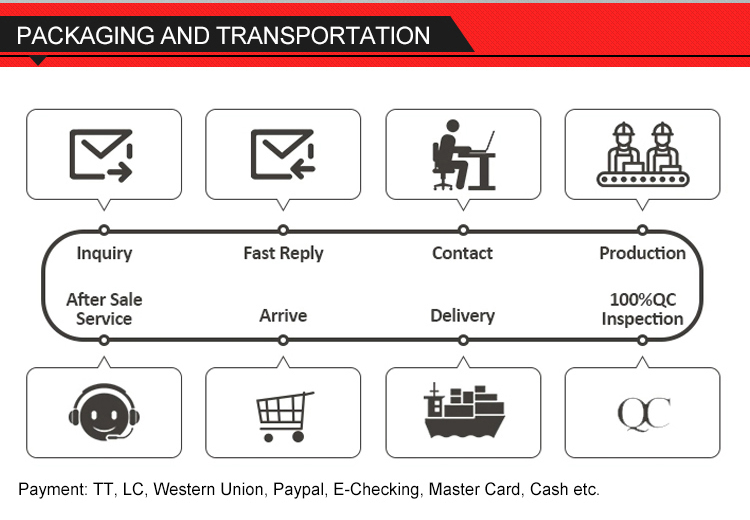

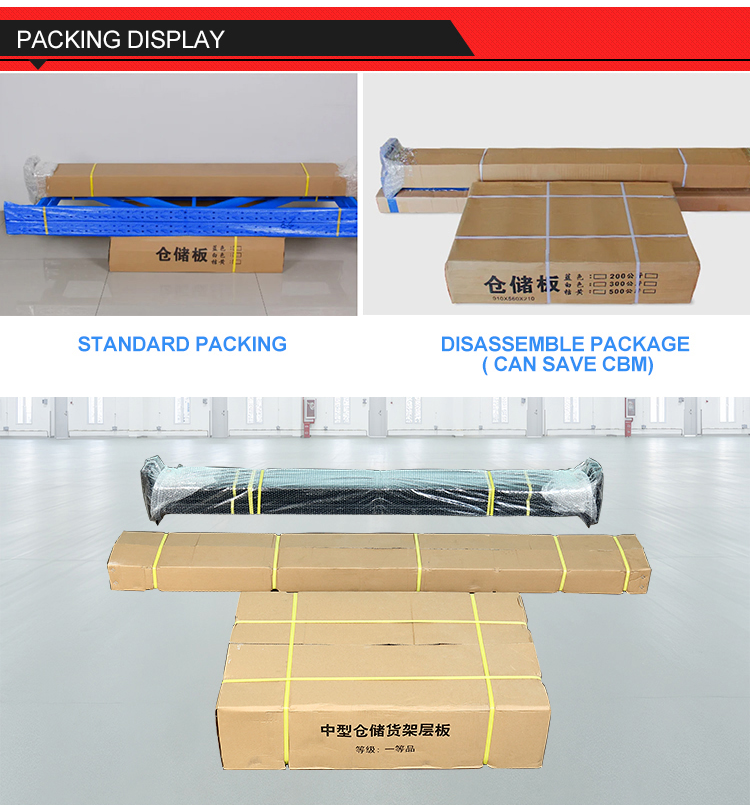

Standard Exporting Package	Metal strip, film, paper board, and master carton

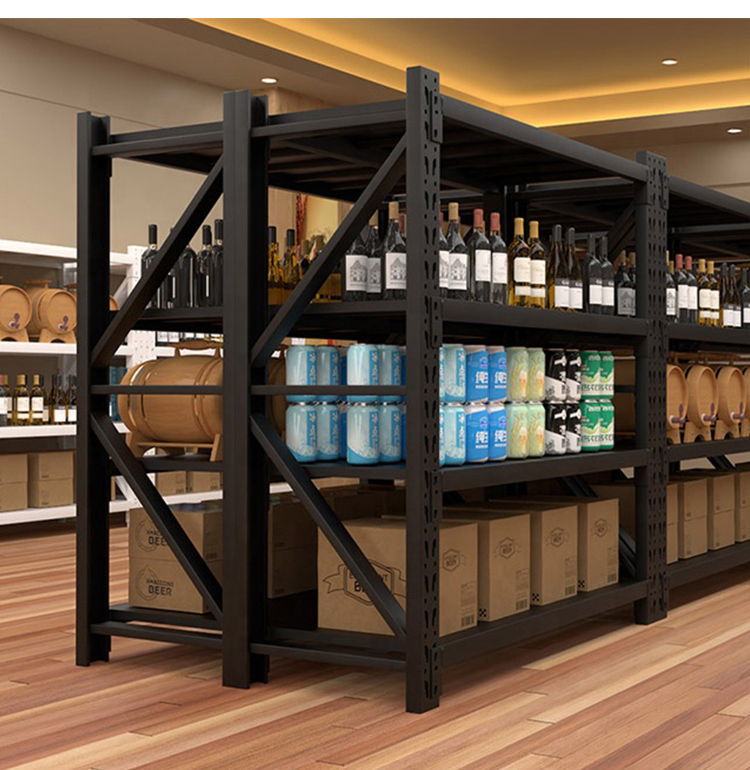

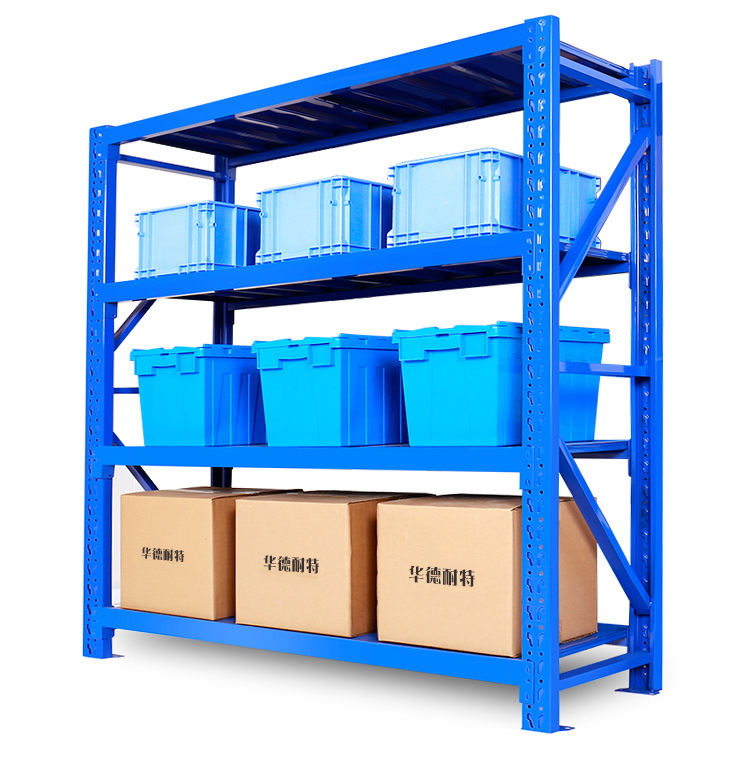

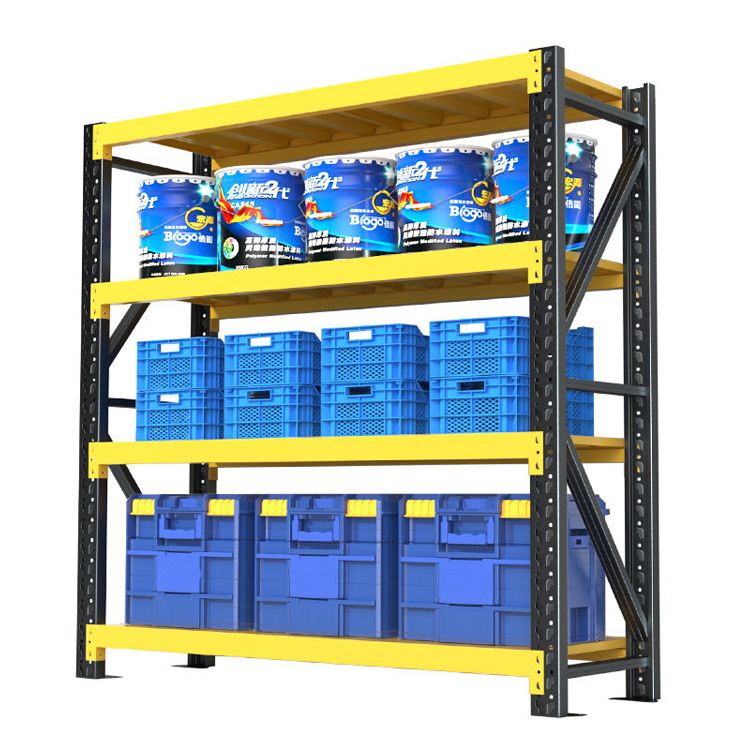

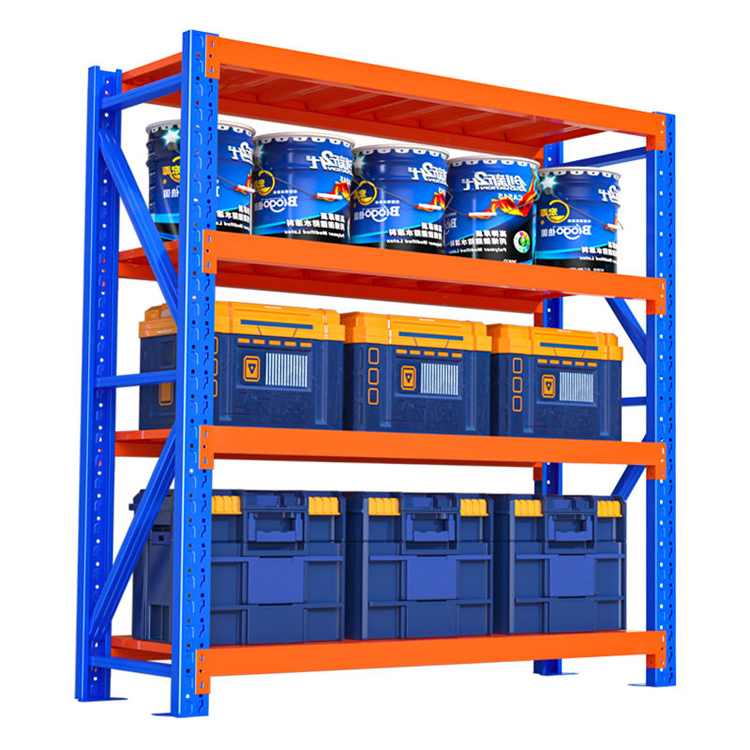

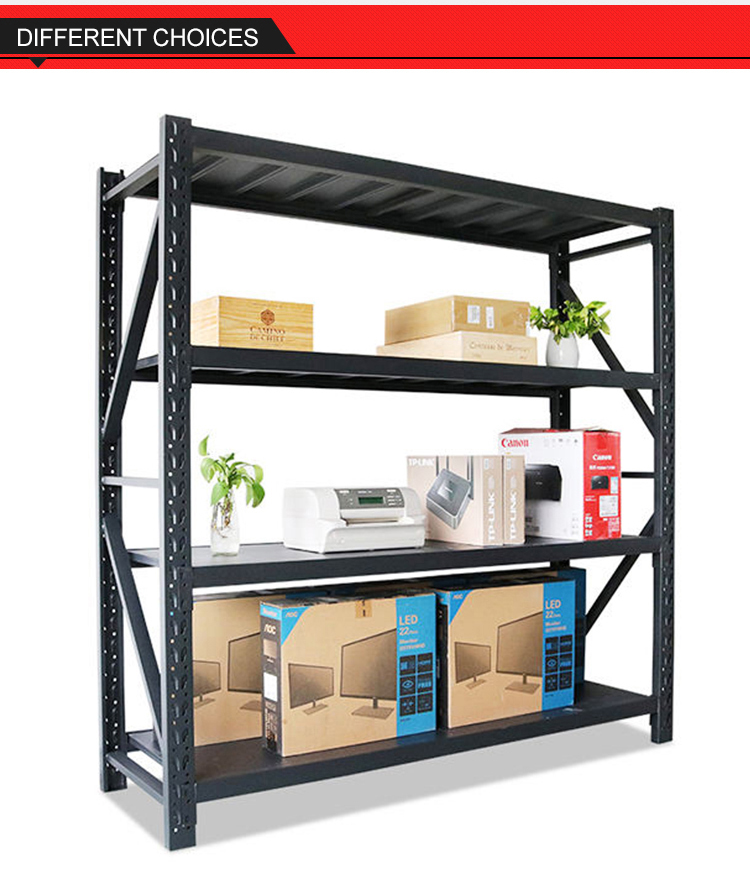

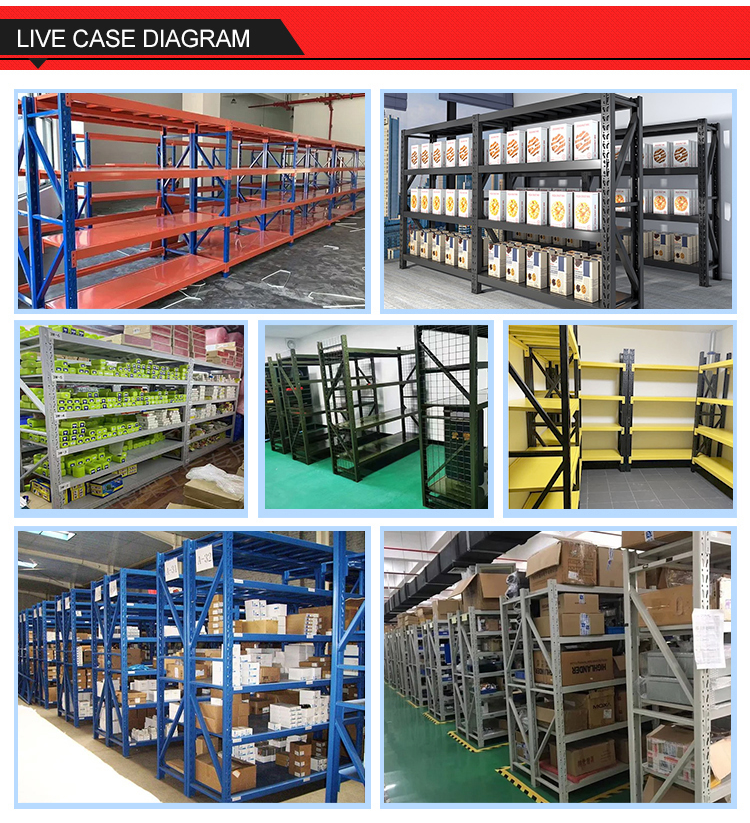

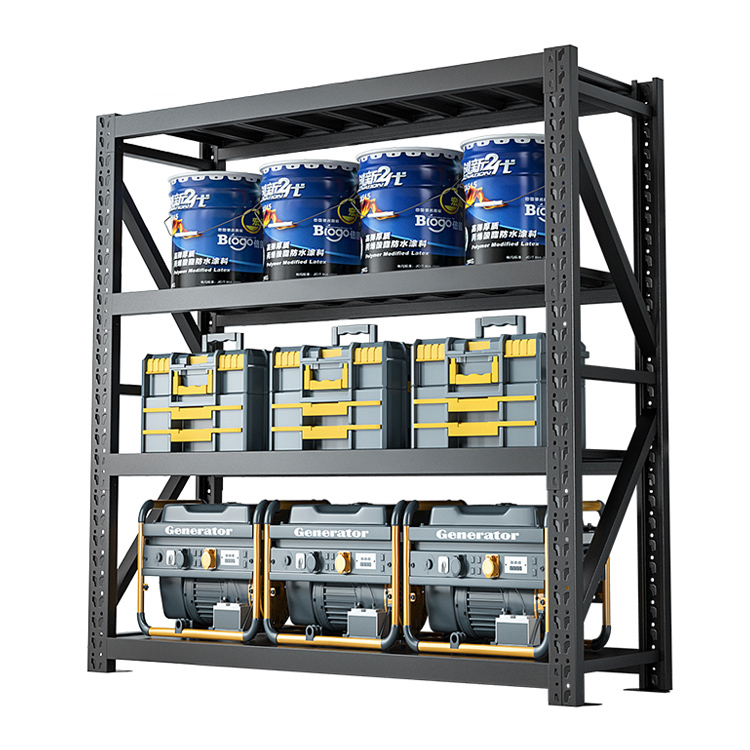

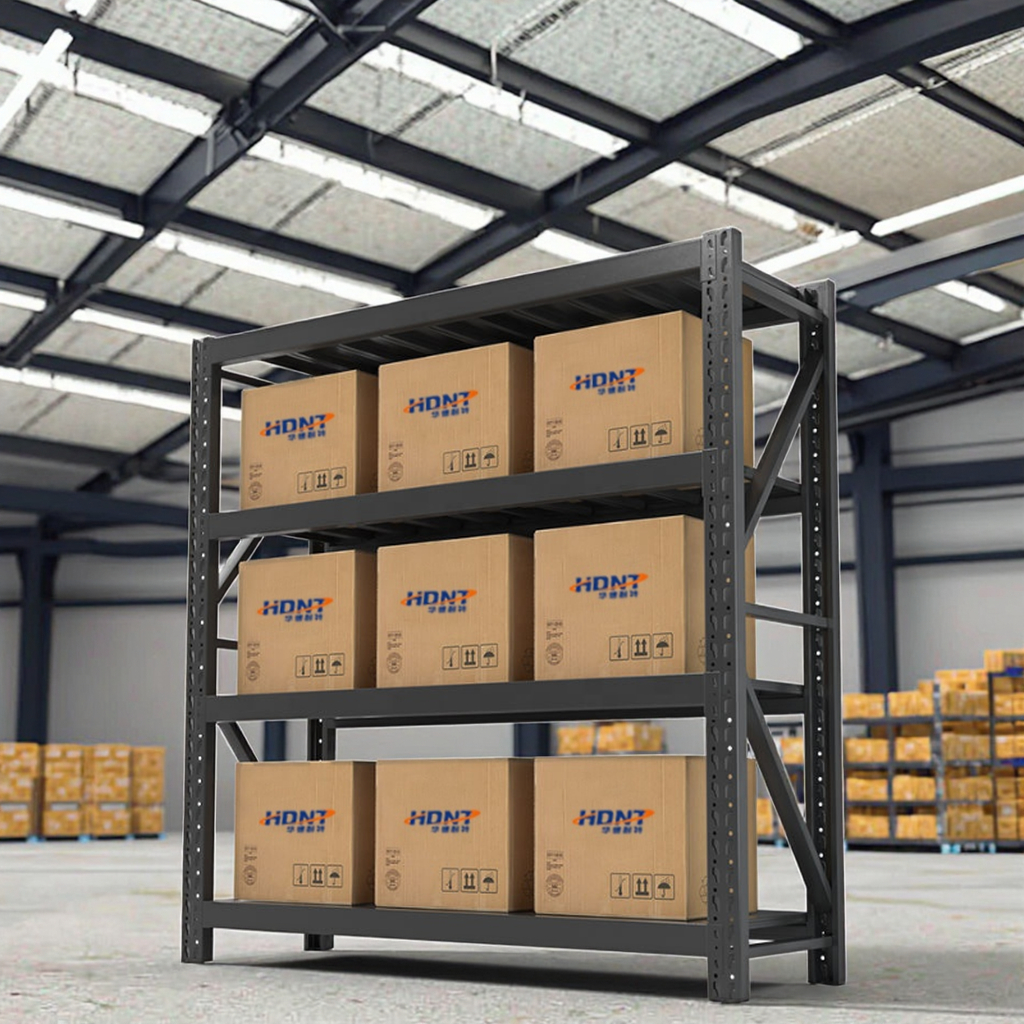

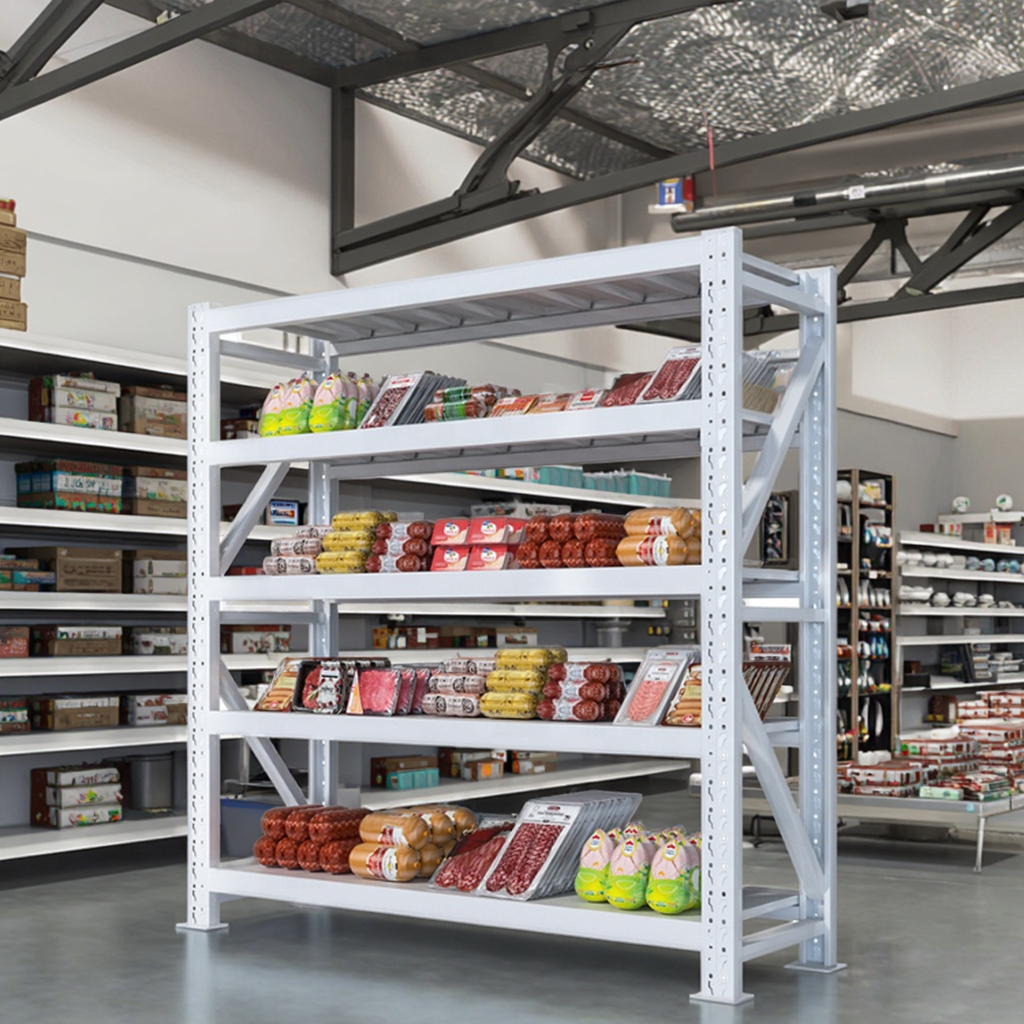

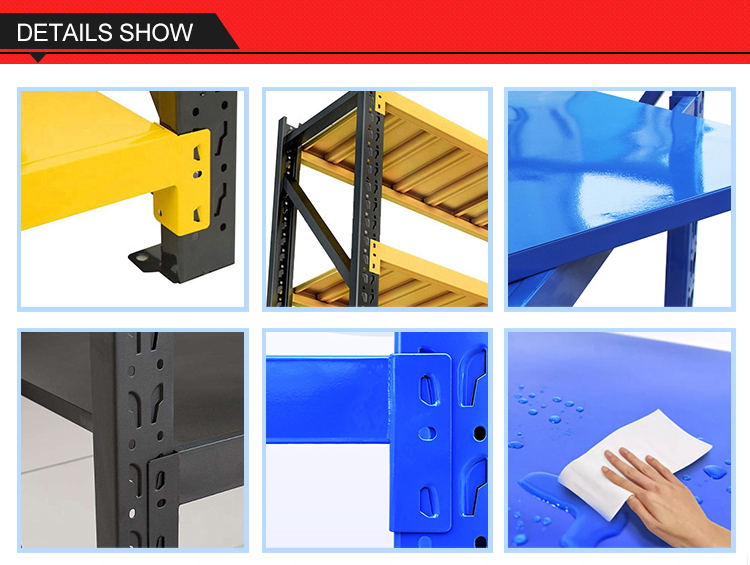

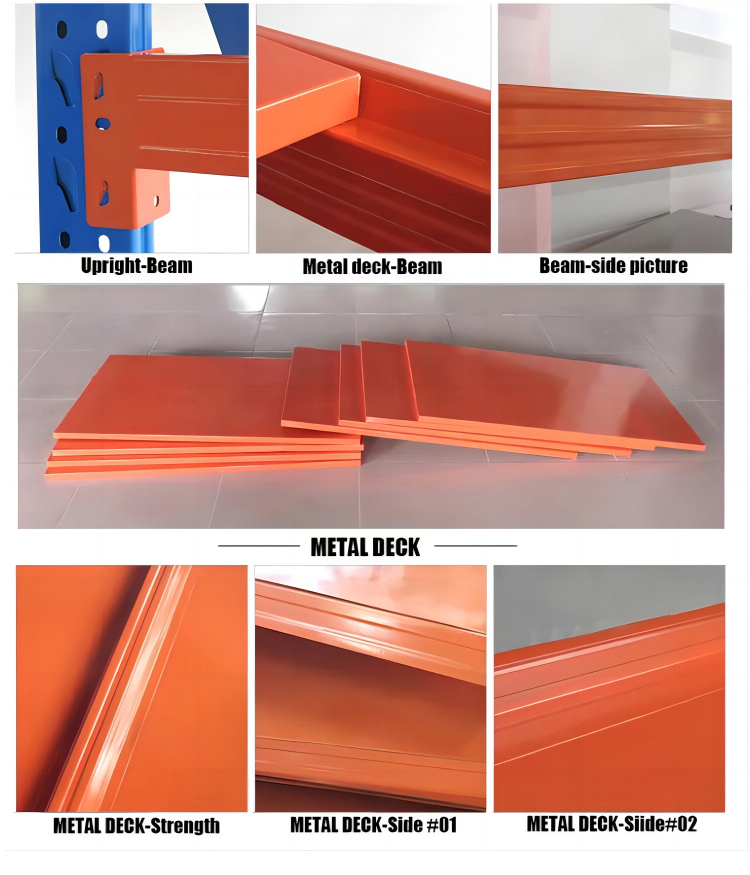

Product Showcase & Details

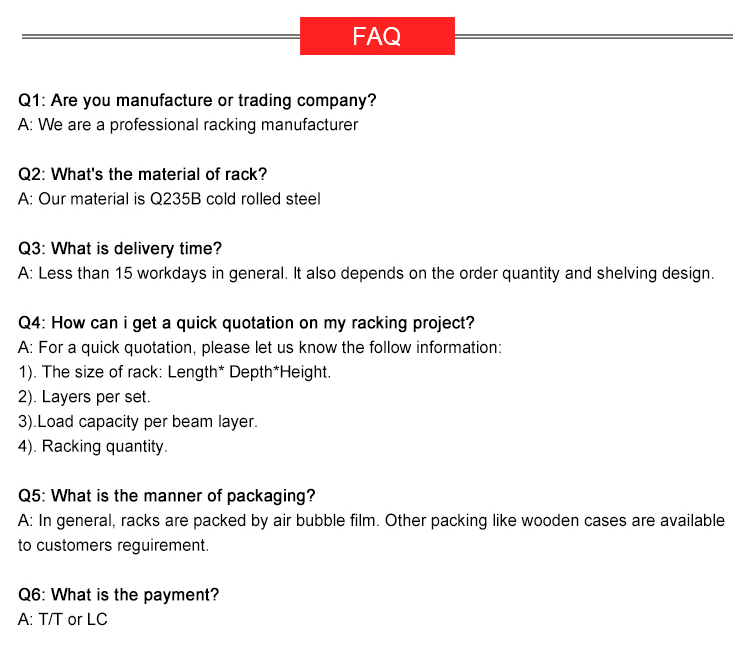

Frequently Asked Questions

Q: What is the load capacity of each rack layer?

The medium storage racks provide a large bearing capacity capable of carrying 150kg to 800kg per layer, engineered for dependable strength.

Q: Can dimensions and colors be customized according to warehouse needs?

Yes, customized sizes are fully accepted beyond the regular L2000*W600*H2000 size. Standard colors include blue, white, black, gray, and orange, and special custom colors can be requested.

Q: How is the shelf layer height adjusted?

The racks are engineered with a 75mm pitch adjustment mechanism, allowing users to conveniently modify the height between shelves for different cargo dimensions.

Q: What surface finish and rust prevention treatment are used?

All metal components undergo strict anti-rust treatment and the exterior is coated with high-grade electrostatic spraying for long-lasting corrosion resistance.

Q: What is the MOQ and the estimated delivery lead time?

The minimum order quantity (MOQ) is 5 units. For bulk orders, the delivery timeframe is typically 7 to 15 days for two 40-foot containers.

Q: How are the storage racks packaged for export?

Products are packed using standard international export packaging, including metal strips, protective film, paper board, and master cartons to guarantee secure delivery.
