| Stock size popular in US market | ||||||
|---|---|---|---|---|---|---|
| Model | Size (D*L) | Weight (lbs) | Mesh (Inch) | Gauge/mm | Channels (pcs) | Capacity (lbs) |

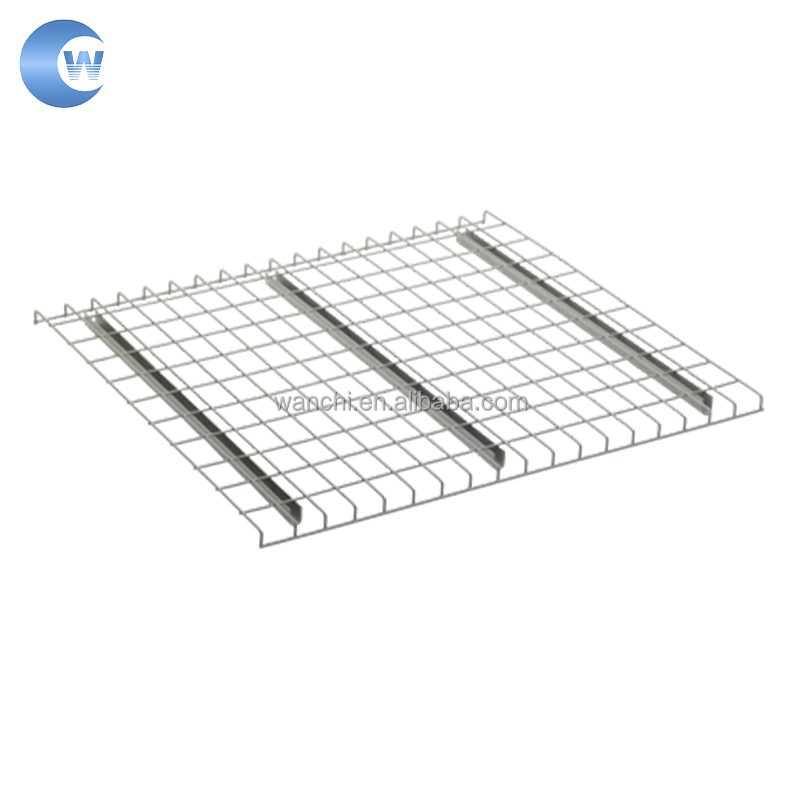

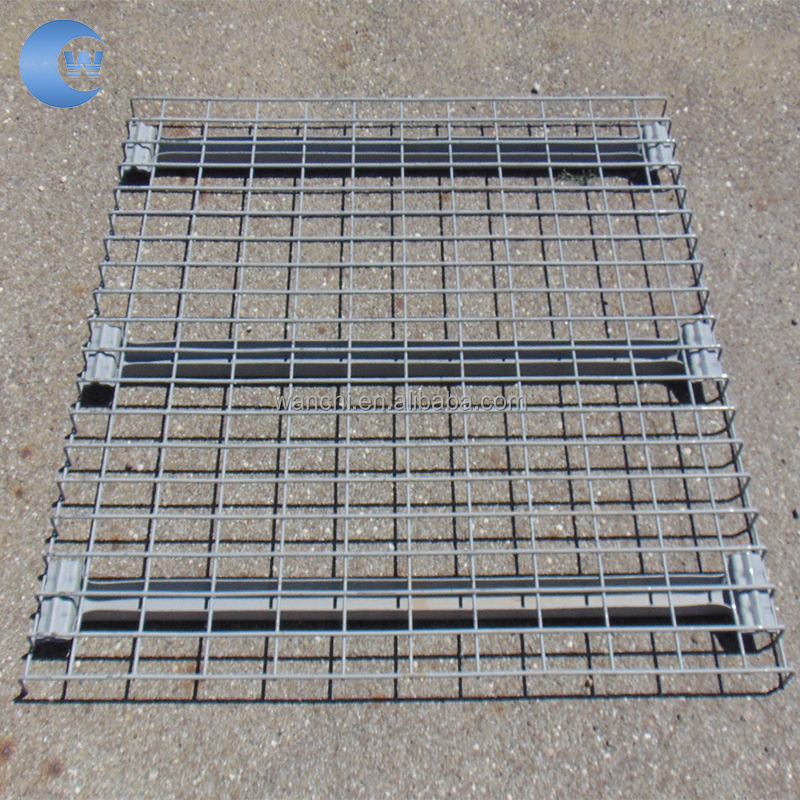

| Flared or step style | 24”*46” | 12.4 | 2.5”*4.5” | 4/5.3 | 3 | 3000 |
| 30”*46” | 15.6 | 2.5”*4.5” | 4/5.3 | 3 | 3000 | |
| 36”*46” | 18.4 | 2.5”*4.5” | 4/5.3 | 3 | 2700 | |
| 36”*52” | 19.6 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 36”*58” | 21.8 | 2.5”*4.5” | 4/5.3 | 3 | 2750 | |
| 42”*46” | 21.5 | 2.5”*4.5” | 4/5.3 | 3 | 2800 | |
| 42”*52” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 42”*58” | 27.5 | 2.5”*4.5” | 4/5.3 | 4 | 2800 | |
| 44”*46” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 44”*52” | 27 | 2.5”*4.5” | 4/5.3 | 4 | 2600 | |
| 48”*46” | 25 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 48”*52” | 31 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 48”*58” | 33 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 60”*46” | 38 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| Stock size popular in Australia market | ||||||
|---|---|---|---|---|---|---|
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 1250, 1350 | 840, 900, 1070 | 4.0, 5.0, 5.3, 5.5 | 25*100 | 2, 3, 4 | 500, 1000 |
| 1170, 1220 | 50*100 | 1500 | ||||
| Stock size popular in UK market | ||||||
|---|---|---|---|---|---|---|
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 1118, 1320 | 910, 1110 | 5 | 50*100 | 2, 3, 4 | 1000, 1500 |
| Stock size popular in France market | ||||||
|---|---|---|---|---|---|---|
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 1000, 1050, 1100 | 880 | 5 | 50*100 | 3, 4 | 1000 |
| Step wire deck | ||||||
